30558 - Toro 52" Bag Kit (SN: 006000001 - 006999999) (1986) BLOWER ASSEMBLY Parts Diagram

52" Bag Kit

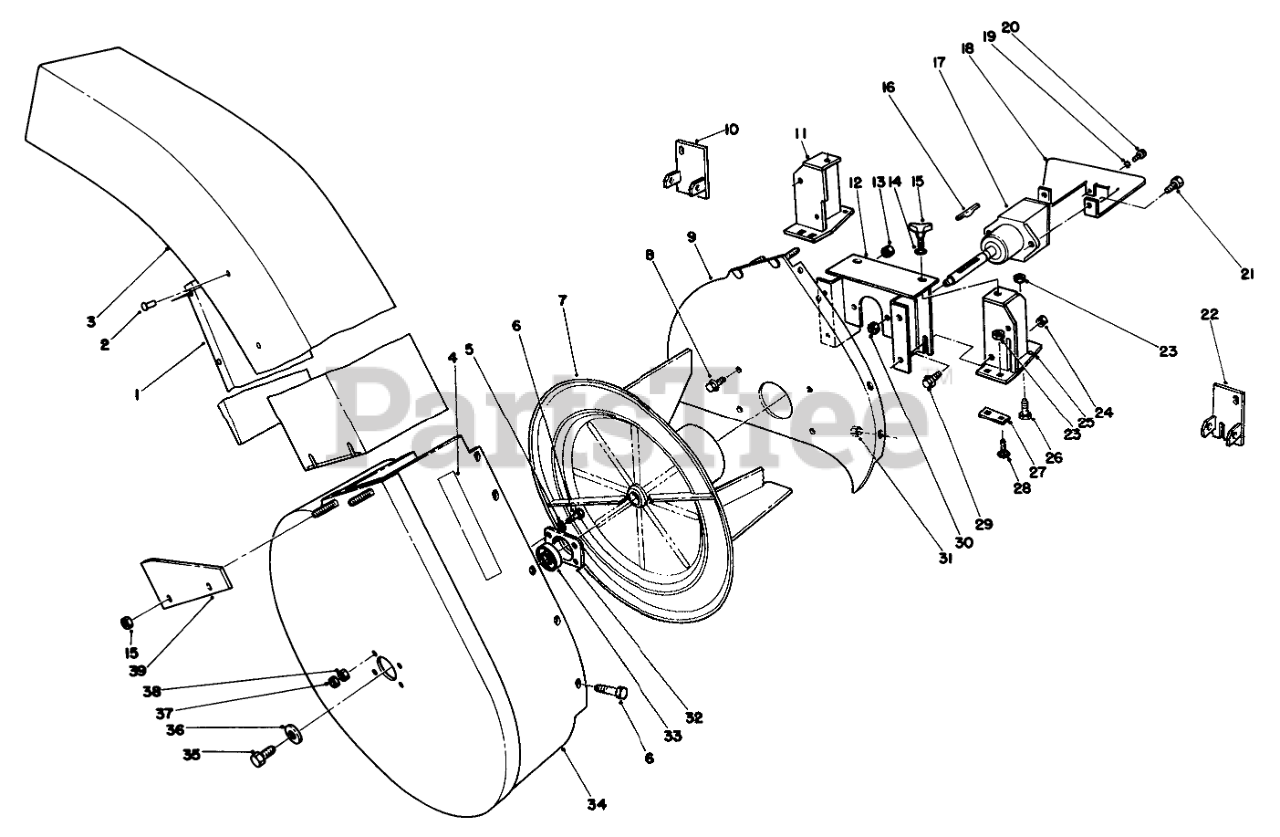

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 44-5290

Deflector-Chute

$

$

Currently unavailable

2

$0.99

$

Usually ships in 3-6 days

0

3

Toro 44-5300

Chute Assembly (Incl. Ref. #1 & 2)
(Superseded to 94-2672)

$623.99

$

Usually ships in 3-6 days

0

4

Toro 43-1110

Decal-Waming
(Superseded to 82-5510)

$8.49

$

Usually ships in 3-6 days

0

5

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 56-4780

Impeller
(Superseded to 56-4780-03)

$1068.99

$

Usually ships in 3-6 days

0

8

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

9

Toro 59-5070

Mounting Plate
(Superseded to 59-5070-03)

$425.99

$

Usually ships in 3-6 days

0

10

Toro 59-4980

Bracket-Deflector L.H.
(Superseded to 74-0910-03)

$72.99

$

Usually ships in 3-6 days

0

11

Toro 59-5050

LH BRACKET ASM

$159.99

$

Usually ships in 3-6 days

0

12

Toro 59-5140

Blower Mount
(Superseded to 59-5140-03)

$200.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 27-4571

Knob
(Superseded to 62-6520)

$8.49

$

In Stock, only 1 left!

0

16

$9.49

$

In Stock, only 1 left!

0

17

Toro 53-4530

Asm-Gear Box
(Superseded to 53-4530-03)

$1965.99

$

Usually ships in 3-6 days

0

18

Toro 59-5150

Cover-Gear Box
(Superseded to 59-5150-01)

$

$

Not available

19

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

20

$0.99

$

In Stock, Qty 20+

0

21

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 59-5000

Bracket-Deflector R.H.
(Superseded to 74-0910-03)

$72.99

$

Usually ships in 3-6 days

0

23

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

24

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

25

Toro 59-5090

RH BRACKET ASM

$159.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 44-5460

Plate-Bracket
(Superseded to 44-5460-03)

$18.99

$

Usually ships in 3-6 days

0

28

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

30

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

32

Toro 37-6730

CUP-BEARING

$17.99

$

In Stock, only 2 left!

0

33

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

34

Toro 56-4690

Blower Housing

$

$

Not available

35

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

36

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

37

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

38

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

39

Toro 43-0960

Bracket
(Superseded to 43-0960-03)

$21.99

$

Usually ships in 3-6 days

0
