30557 - Toro Grass Collection System (SN: 020000001 - 029999999) (1982) HOOD & HOPPER ASSEMBLY Parts Diagram

Grass Collection System

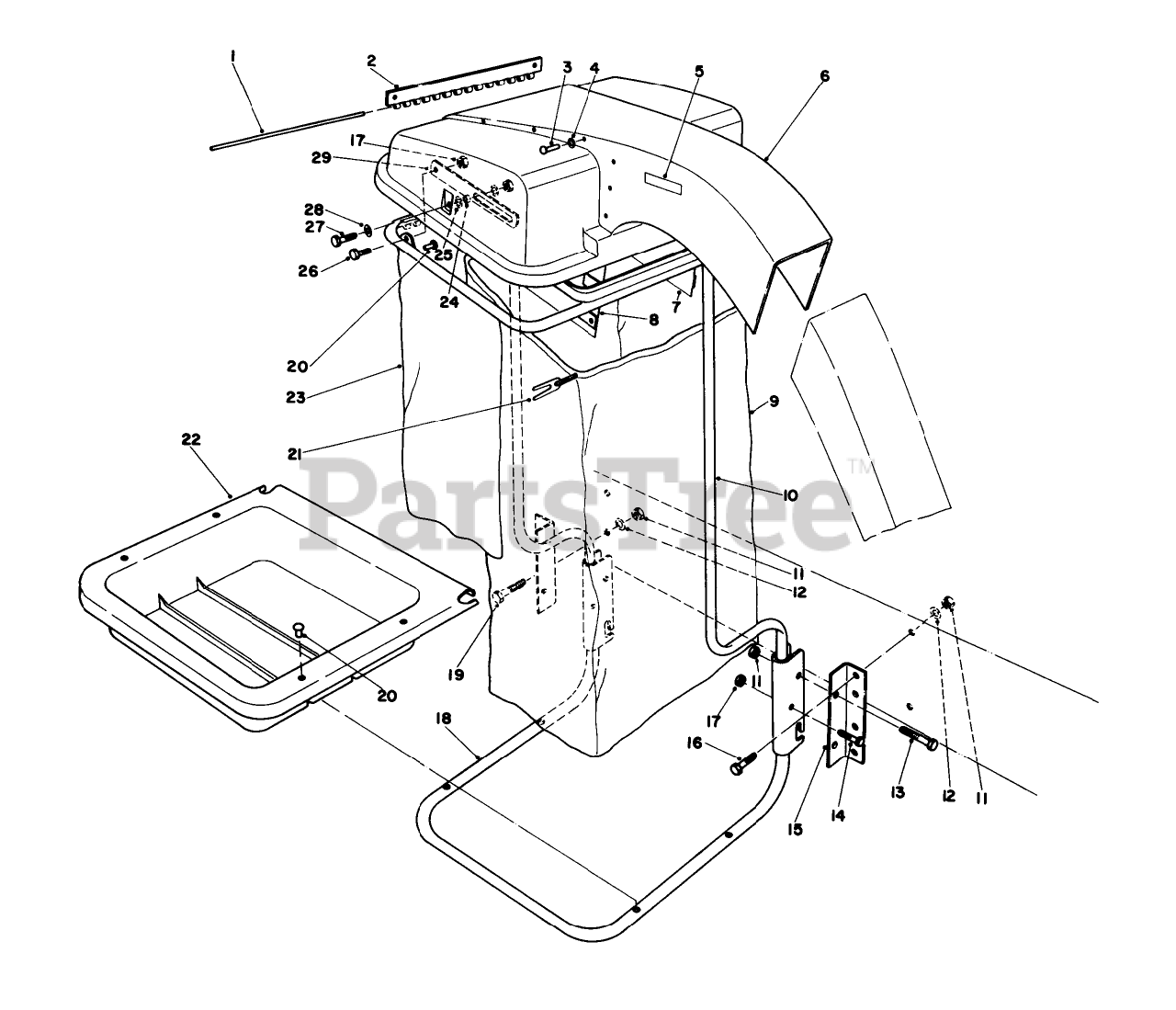

HOOD & HOPPER ASSEMBLY Parts Diagram

  • Title
1

Toro 43-1000

HOOD HINGE PIN

$

$

Not available

2

Hinge-Half

$

$

Not available

3

Toro 3290-417

POP RIVET 3/16X.375LG

$

$

Not available

4

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 43-1100

Decal-Caution

$17.99

$

Usually ships in 3-6 days

0

6

Toro 11-2829

Hood Assembly (Incl. Ref. #2-5, 7 & 8)
(Superseded to 13-1649)

$922.99

$

Usually ships in 3-6 days

0

7

Toro 43-0600

Screen Left Hand
(Superseded to 43-0600-03)

$

$

Not available

8

Toro 43-0570

Screen Right Hand
(Superseded to 43-0570-03)

$

$

Not available

9

Toro 43-0990

BAG-CLOTH, 32"

$

$

Not available

Toro 43-0980

BAG-CLOTH, 38"

Note: Not illustrated

$

$

Not available

10

Toro 43-0620

Support Tube Assy. Upper (Incl. Ref. #20 & 23)
(Superseded to 67-7500)

$

$

Not available

11

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

12

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

15

Toro 43-1010

BRKT-FRAME B

$

$

Not available

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

18

Toro 43-0720

Support Tube Assy.-Lower (Incl. Ref. #20 & 22)

$1023.99

$

Usually ships in 3-6 days

0

19

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3-2781

BAG CORD FASTENER

$

$

Not available

Toro 36-7770

RETAINER CORD

Note: Not illustrated

$

$

Not available

22

Tray Lower

$

$

Not available

23

Skirt-Bagging Frame

$

$

Not available

24

Toro 43-1020

SPACER - PIVOT ARM

$

$

Not available

25

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 3224

Screw

$

$

Currently unavailable

28

Toro 3256-56

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

29

Toro 43-1050

Stop-Hood

$

$

Not available
