30557 - Toro Grass Collection System (SN: 020000001 - 029999999) (1982) BLOWER ASSEMBLY Parts Diagram

Grass Collection System

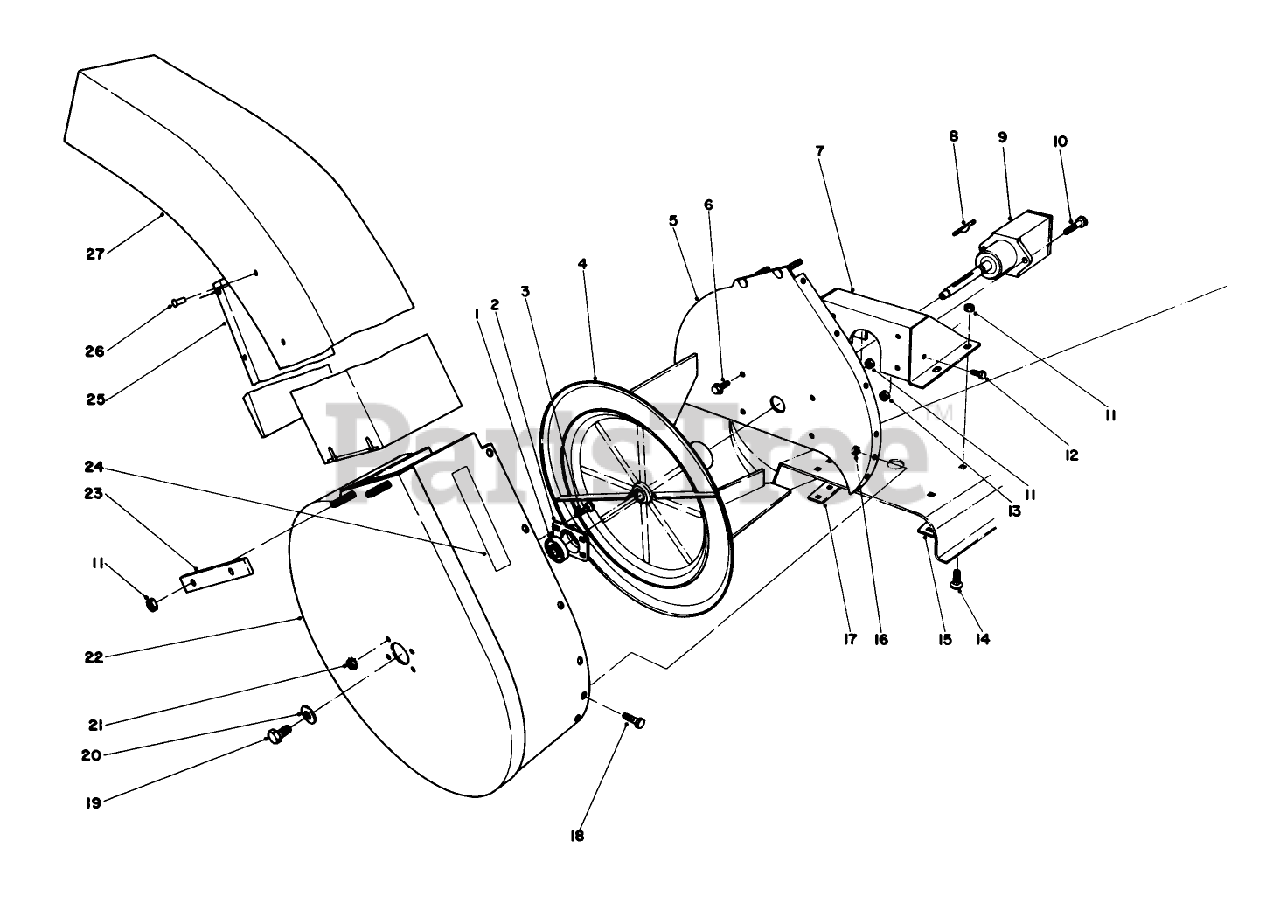

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

2

Toro 37-6731

BEARING CUP

$

$

Not available

3

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

4

Toro 434870

Impeller

$

$

Currently unavailable

5

Toro 44-5250

MTG PLATE WA B

$

$

Not available

6

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 14

0

7

Toro 44-1050

GEAR BOX BRKT WA B

$

$

Not available

8

Toro 325740

Key

$

$

Currently unavailable

9

Toro 43-0810

GEAR BOX ASM

$

$

Not available

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

13

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

14

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 44-5450

Plate-Bracket R.H.

$

$

Not available

16

Toro 321524

Nut

$

$

Currently unavailable

17

Toro 44-5460

Plate-Bracket
(Superseded to 44-5460-03)

$18.99

$

Usually ships in 3-6 days

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

20

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

21

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

22

Toro 11-2839

Housing-Blower (Incl. Ref. #24)

$

$

Not available

23

Toro 43-0960

Bracket
(Superseded to 43-0960-03)

$20.99

$

Usually ships in 3-6 days

0

24

Toro 43-1110

Decal-Waming
(Superseded to 82-5510)

$8.49

$

Usually ships in 3-6 days

0

25

Deflector-Chute

$

$

Not available

26

Toro 3290409

Rivet

$

$

Currently unavailable

27

Toro 44-5300

Chute Assembly (Incl. Ref. #25 & 26)
(Superseded to 94-2672)

$605.99

$

Usually ships in 3-6 days

0
