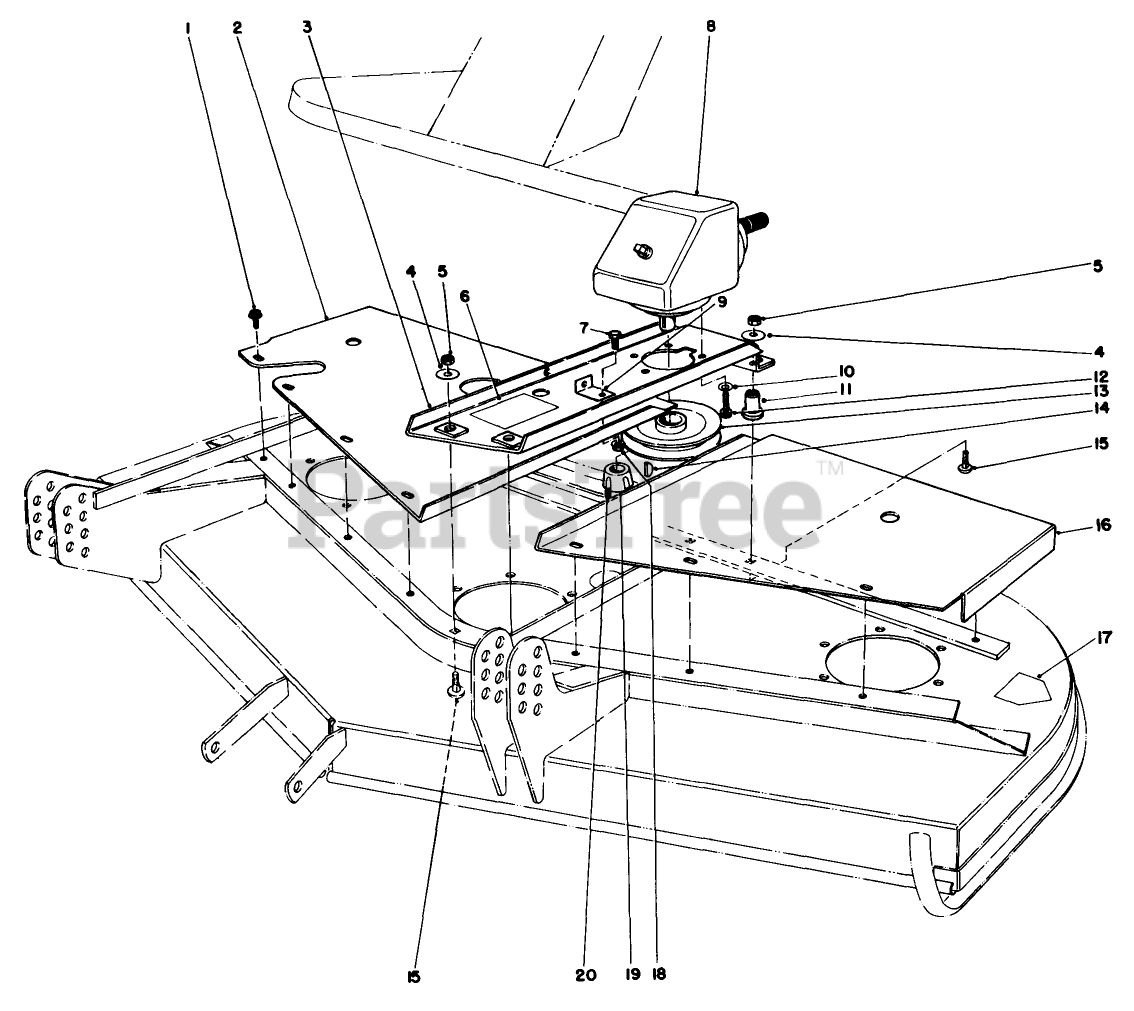

30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 010000001 - 019999999) (1991) Cutting Unit Model No. 30568 (continued) 2 Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

Cutting Unit Model No. 30568 (continued) 2 Parts Diagram

  • Title

1

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

2

Toro 40-0410

RH COVER WA *R

$

$

Not available

3

Toro 63-9760

DISCONTINUED

$

$

Not available

4

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

5

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

6

Toro 51-3960

DECAL

$27.99

$

Usually ships in 3-6 days

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 8-0909

DISCONTINUED

$

$

Not available

9

Toro 46-3590

EXTENSION BRKT *R

$47.99

$

Usually ships in 3-6 days

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 63-9750

MOUNT

$20.99

$

In Stock, only 3 left!

0

12

Toro 3274-1

SCREW-HSH

$8.99

$

Usually ships in 3-6 days

0

13

Toro 63-9900

GEARBOX PULLEY ASM

$164.99

$

Usually ships in 3-6 days

0

14

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

15

Toro 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

16

Toro 42-4660

LH COVER WA *R

$202.99

$

Usually ships in 3-6 days

0

17

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 27-6140

BUSHING-LOCK, TAPER

$103.99

$

Usually ships in 3-6 days

0

20

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 20+

0
