30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 007000001 - 007999999) (1987) Power Take Off Lever Assembly Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

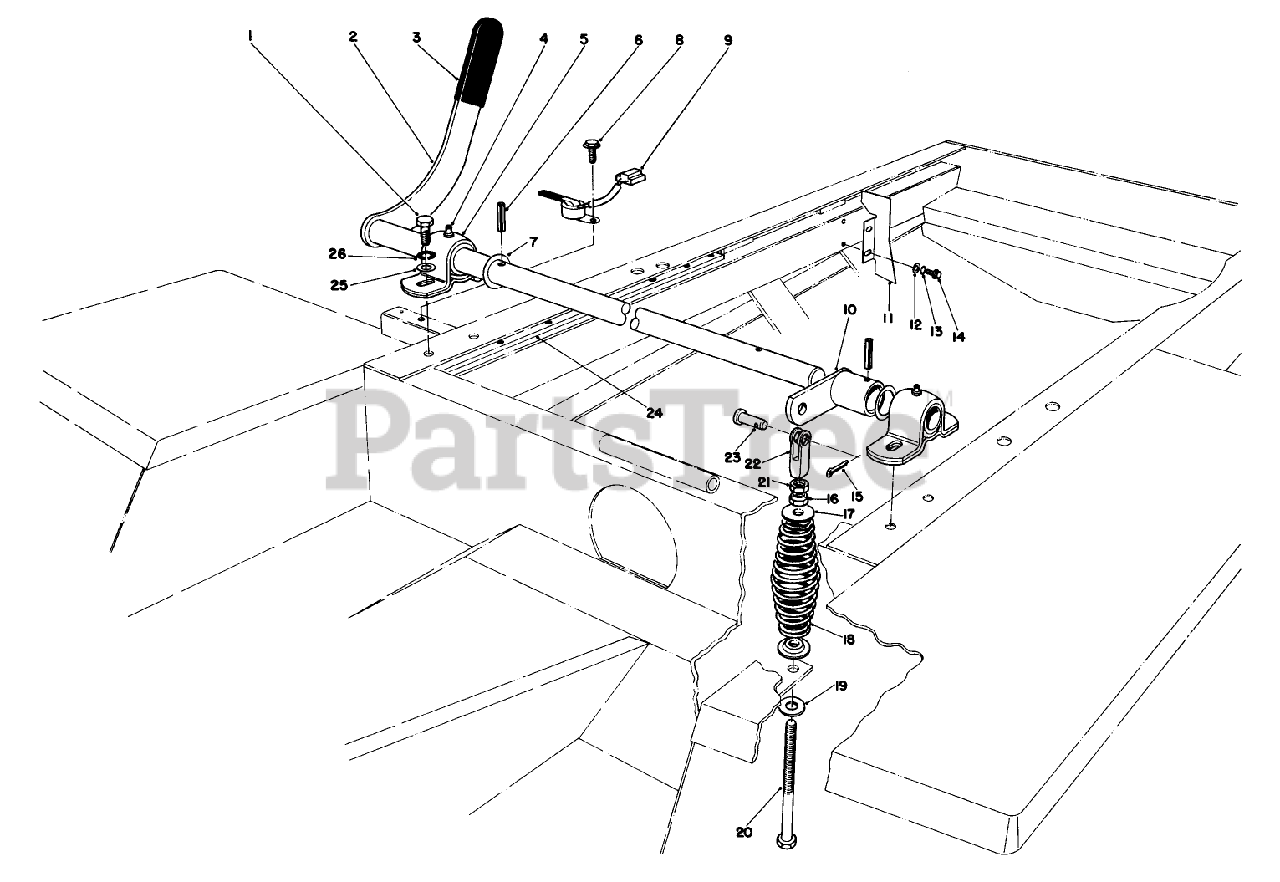

Power Take Off Lever Assembly Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 27-4910

See Supercession: 27-4910-01
(Superseded to 27-4910-01)

$

$

Not available

3

Toro 21-1880

GRIP-HANDLE

$13.99

$

Usually ships in 3-6 days

0

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 251-269

BEARING

$

$

Not available

6

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

7

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

8

Toro 32104-116

SCREW-HWHTF

$0.99

$

Usually ships in 3-6 days

0

9

Toro 29-6930

DISCONTINUED-SEE PB#936

$

$

Not available

10

Toro 47-4780

See Supercession: 47-4780-03
(Superseded to 47-4780-03)

$83.99

$

Usually ships in 3-6 days

0

11

Toro 44-8680

See Supercession: 44-8680-03
(Superseded to 44-8680-03)

$

$

Not available

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

14

Toro 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

15

Toro 327-25

SCREW-HH

$13.99

$

In Stock, only 2 left!

0

16

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

17

Toro 44-8890

SPRING RET TOP

$

$

Not available

18

Toro 44-8820

DISCONTINUED

$

$

Not available

19

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

20

Toro 27-7900

SCREW-ADJUSTING

$26.99

$

Usually ships in 3-6 days

0

21

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

22

Toro 282-1

DISCONTINUED
(Superseded to 282-1-01)

$

$

Not available

23

Toro 283-42

PIN-CLEVIS

$48.99

$

Usually ships in 3-6 days

0

24

Toro 37-7060

See Supercession: 37-7060-01
(Superseded to 37-7060-01)

$

$

Not available

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0
