30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 007000001 - 007999999) (1987) Engine, Onan Model No. B48g-Ga020 Type No. 4348g Engine Air Housing Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

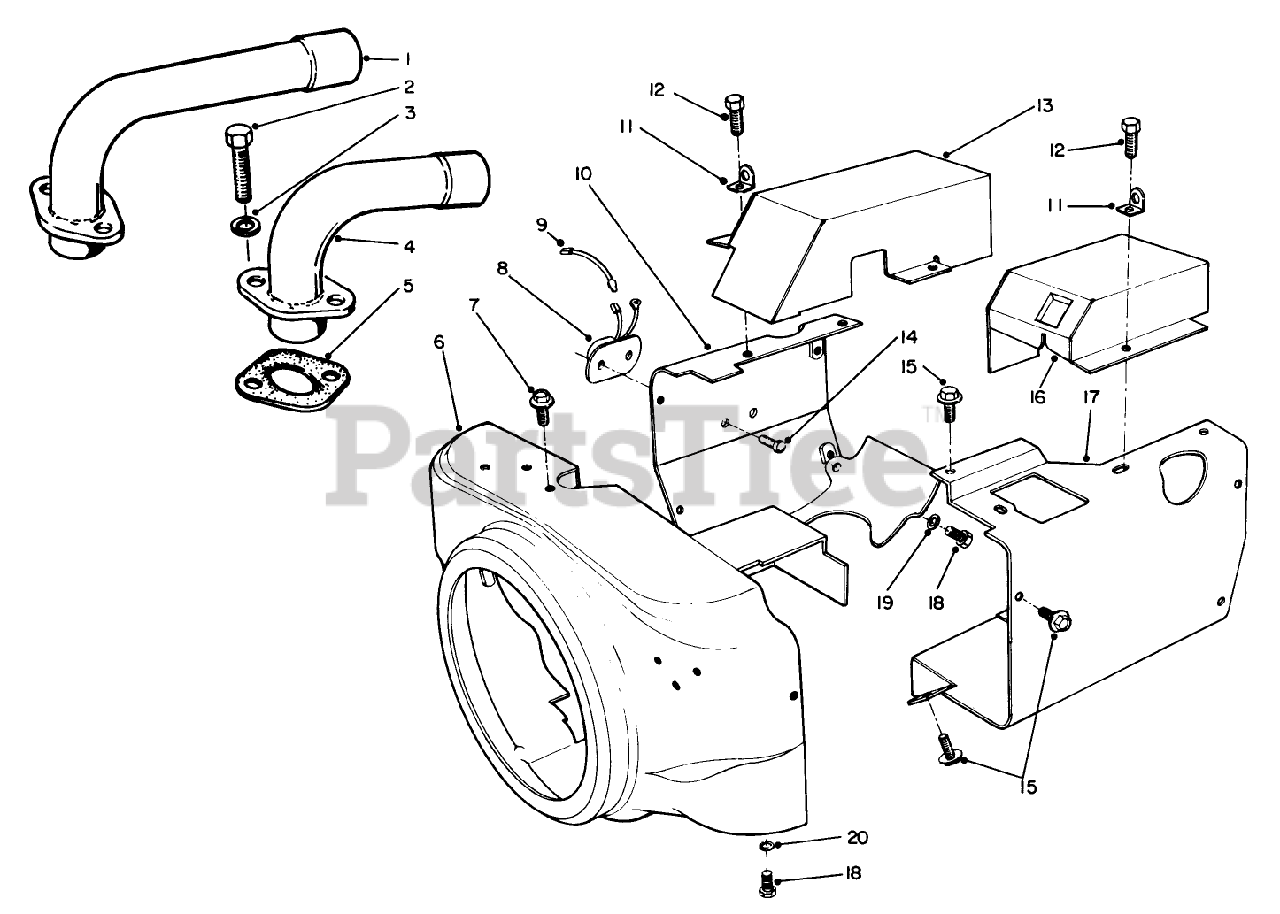

Engine, Onan Model No. B48g-Ga020 Type No. 4348g Engine Air Housing Parts Diagram

  • Title
1

Toro 57-9240

DISCONTINUED

$

$

Not available

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 325-34

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

4

Toro 57-9230

EXHAUST TUBE

$

$

Not available

5

Toro 57-9210

GASKET

$17.99

$

In Stock, Qty 6

0

6

Toro 57-8700

DISCONTINUE

$

$

Not available

7

Toro 59-0970

HEX HD CAPSCREW

$6.49

$

Usually ships in 3-6 days

0

8

Toro 57-9500

SWITCH ASM

$1049.99

$

Usually ships in 3-6 days

0

9

Toro 59-0620

DISCONTINUED

$

$

Not available

10

Toro 57-8680

DISCONTINUED

$

$

Not available

11

Toro 59-0630

See Supercession: 71-6080
(Superseded to 71-6080)

$27.99

$

Usually ships in 3-6 days

0

12

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

13

Toro 57-8640

DISCONTINUED

$

$

Not available

14

Toro 57-9780

DISCONTINUE

$

$

Not available

15

Toro 59-1080

SCREW-HWH

$5.99

$

Usually ships in 3-6 days

0

16

Toro 57-8710

DISCONTINUED
(Superseded to 72-3980)

$

$

Not available

17

Toro 57-8690

DISCONTINUED

$

$

Not available

18

Toro 59-0980

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

19

Toro 59-0830

WASHER-FLAT

$

$

Not available

20

Toro 59-0820

WASHER-FLAT

$

$

Not available
