30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 007000001 - 007999999) (1987) Engine Assembly Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

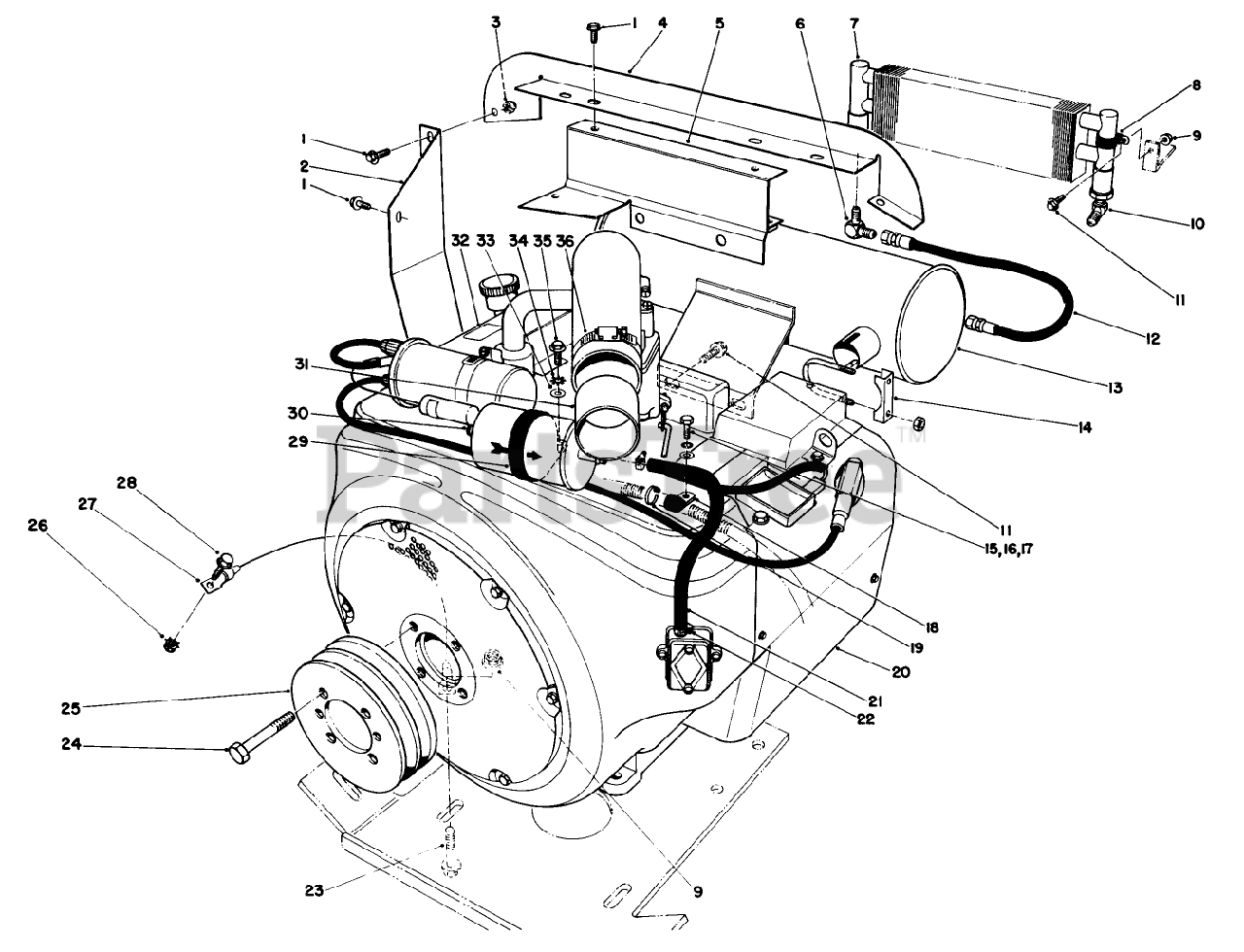

Engine Assembly Parts Diagram

  • Title
1

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

2

Toro 44-8690

See Supercession: 44-8690-03
(Superseded to 44-8690-03)

$

$

Not available

3

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

4

Toro 44-8710

See Supercession: 44-8710-03
(Superseded to 44-8710-03)

$

$

Not available

5

Toro 44-9010

See Supercession: 44-9010-03
(Superseded to 44-9010-03)

$

$

Not available

6

Toro 353-428

DISCONTINUED

$

$

Not available

7

Toro 22-7320

DISCONTINUED

$

$

Not available

8

Toro 2412-39

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 353-714

ELBOW

$38.99

$

Usually ships in 3-6 days

0

11

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

12

Toro 44-9020

OIL HOSE ASM

$

$

Not available

13

Toro 44-8960

See Supercession: 99-5676
(Superseded to 99-5676)

$

$

Not available

Toro 46-2390

SPARK ARRESTOR MUFFLER

Note: Not illustrated

$

$

Not available

14

Toro 2412-37

MUFFLER CLAMP

$5.99

$

Usually ships in 3-6 days

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 2412-81

CLAMP-R

$4.49

$

Usually ships in 3-6 days

0

19

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

20

Toro 61-9600

DISCONTINUED

$

$

Not available

21

Toro 44-9060

DISCONTINUED

$

$

Not available

22

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

24

Toro 322-40

DISCONTINUED

$

$

Not available

25

Toro 43-5340

See Supercession: 43-5340-03
(Superseded to 43-5340-03)

$443.99

$

Usually ships in 3-6 days

0

26

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

27

Toro 107160

DISCONTINUED

$

$

Not available

28

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

29

Toro 2412-96

CLAMP-R

$4.99

$

Usually ships in 3-6 days

0

30

Toro 18-1520

See Supercession: 108-3831
(Superseded to 108-3831)

$11.99

$

In Stock, only 1 left!

0

31

Toro 44-9450

DISCONTINUED

$

$

Not available

32

Toro 42-4180

DISCONTINUED

$

$

Not available

33

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

35

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

36

Toro 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0
