30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 006000001 - 006999999) (1986) Power Take Off Assembly Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

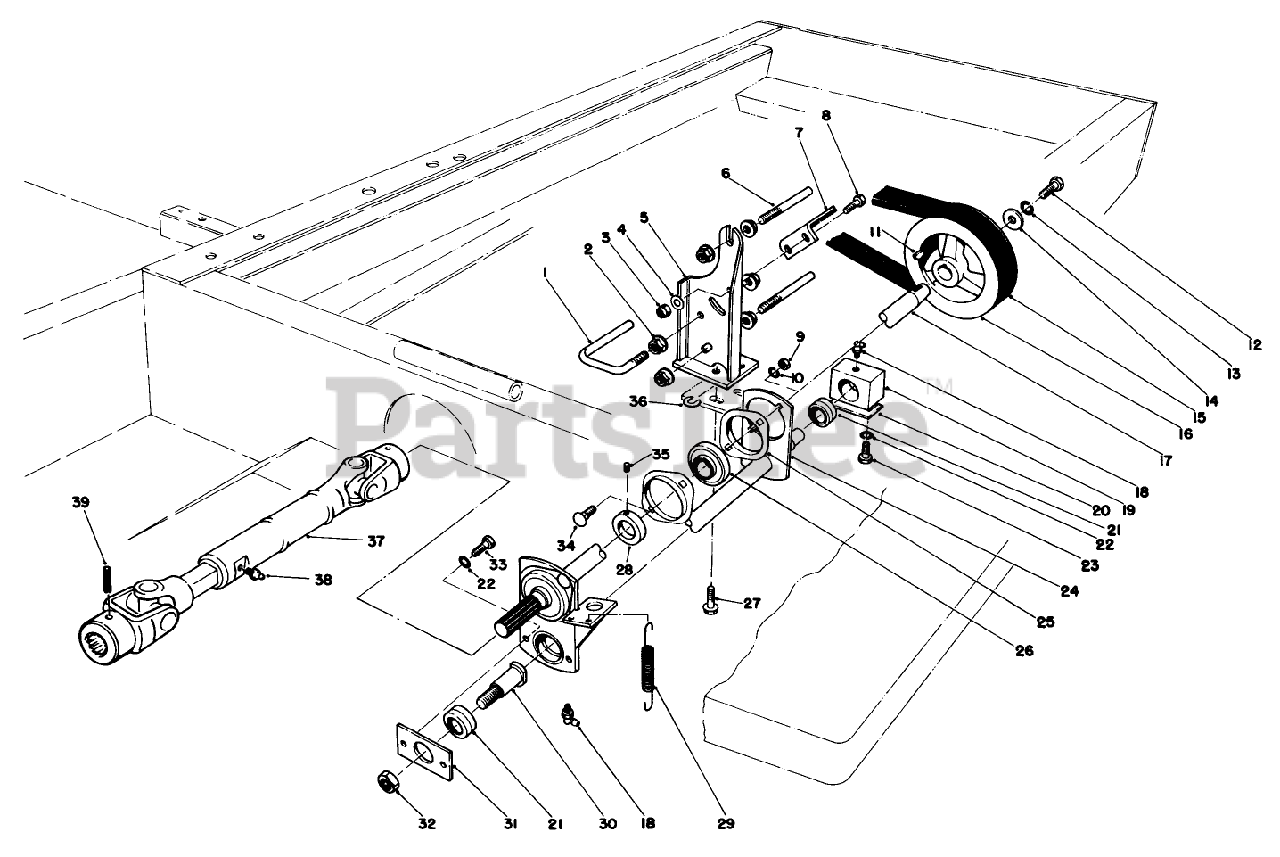

Power Take Off Assembly Parts Diagram

  • Title
1

Toro 44-9220

LOWER BELT GUIDE

$

$

Not available

2

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 44-9310

See Supercession: 44-9310-03
(Superseded to 44-9310-03)

$

$

Not available

6

Toro 44-9230

UPPER BELT GUIDE

$

$

Not available

7

Toro 44-9330

DISCONTINUED

$

$

Not available

8

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

10

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

11

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

12

Toro 323-18

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

14

Toro 29-4730

WASHER-FLAT

$17.99

$

Usually ships in 3-6 days

0

15

Toro 44-8990

V-BELT

$40.99

$

In Stock, only 2 left!

0

16

Toro 43-5320

See Supercession: 43-5320-03
(Superseded to 43-5320-03)

$456.99

$

Usually ships in 3-6 days

0

17

Toro 27-4980

DISCONTINUED

$

$

Not available

18

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

19

Toro 28-9050

DISCONTINUED

$

$

Not available

20

Toro 47-4760

DISCONTINUED

$

$

Not available

21

Toro 251-268

BEARING

$99.99

$

Usually ships in 3-6 days

0

22

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

23

Toro 321-7

SCREW-HH

$5.49

$

In Stock, Qty 11

0

24

Toro 44-9350

DISCONTINUED

$

$

Not available

25

Toro 251-255

FLANGE

$18.99

$

Usually ships in 3-6 days

0

26

Toro 251-253

BEARING

$24.99

$

Usually ships in 3-6 days

0

27

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

28

Toro 251-77

COLLAR-LOCK, BEARING

$12.99

$

Usually ships in 3-6 days

0

29

Toro 28-8950

DISCONTINUED

$

$

Not available

30

Toro 27-6970

BEARING STUD

$

$

Not available

31

Toro 27-6650

BRG RETAINER

$

$

Not available

32

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

33

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

35

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

36

Toro 28-5640

SPECIAL WASHER

$

$

Not available

37

Toro 27-4520

UNIVERSAL JOINT

$

$

Not available

38

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

39

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0
