30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 006000001 - 006999999) (1986) Engine, Onan Model No. B48g-Ga020 Type No. 4139f Ignition System Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

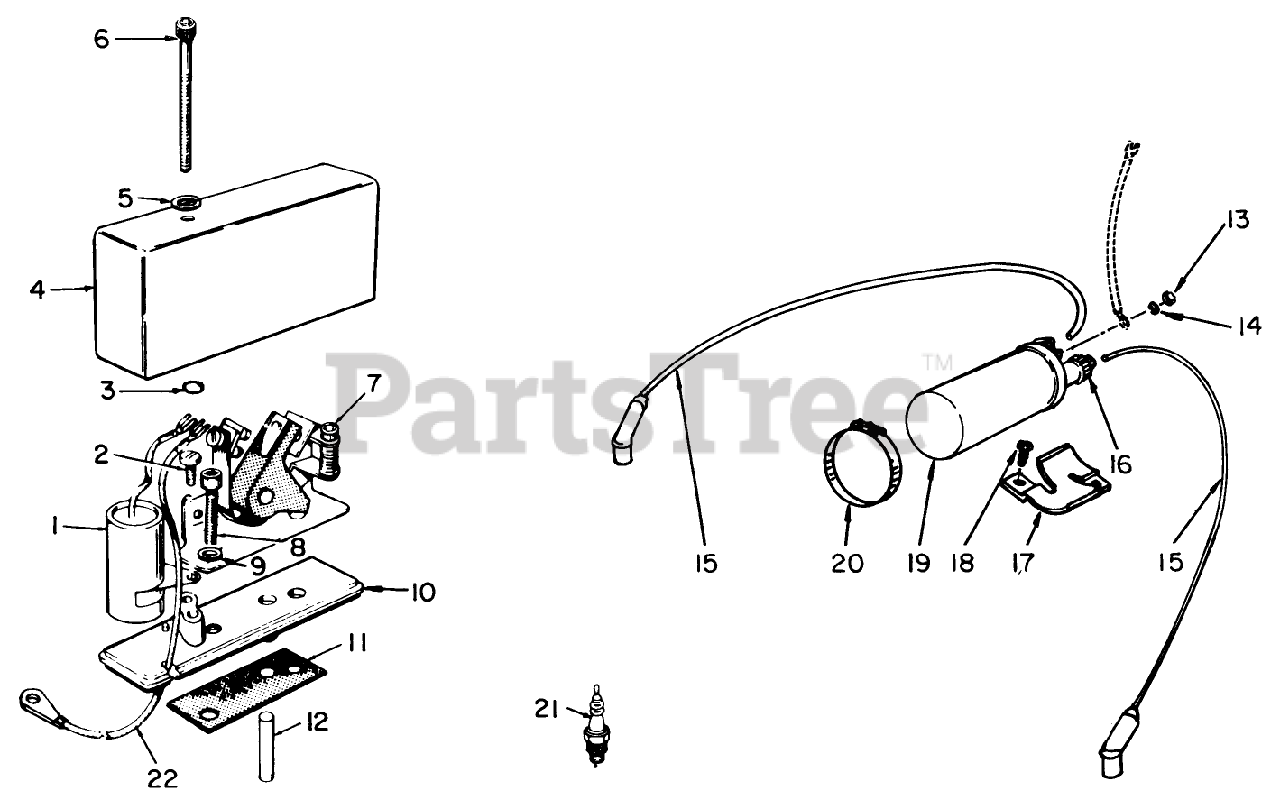

Engine, Onan Model No. B48g-Ga020 Type No. 4139f Ignition System Parts Diagram

  • Title

1

Toro 57-9510

CAPACITOR

$

$

Not available

2

Toro 59-0990

DISCONTINUED

$

$

Not available

3

Toro 57-9600

DISCONTINUED

$

$

Not available

4

Toro 59-0500

DISCONTINUED

$

$

Not available

5

Toro 59-0800

DISCONTINUED

$

$

Not available

6

Toro 3274-59

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 57-9280

DISCONTINUED

$

$

Not available

8

Toro 59-0920

DISCONTINUED

$

$

Not available

9

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

10

Toro 59-0490

DISCONTINUED

$

$

Not available

11

Toro 57-9260

GASKET

$

$

Not available

12

Toro 57-9270

DISCONTINUED

$

$

Not available

13

Toro 57-9320

See Supercession: 71-6440
(Superseded to 71-6440)

$

$

Not available

14

Toro 59-1140

DISCONTINUED

$

$

Not available

15

Toro 57-9350

CABLE KIT

$93.99

$

Usually ships in 3-6 days

0

16

Toro 57-9330

DISCONTINUED

$

$

Not available

17

Toro 59-0510

DISCONTINUED

$

$

Not available

18

Toro 59-1090

DISCONTINUED

$

$

Not available

19

Toro 57-9310

DISCONTINUED

$

$

Not available

20

Toro 57-9560

DISCONTINUED

$

$

Not available

21

Toro 57-9340

SPARK PLUG

$4.49

$

In Stock, only 2 left!

0

22

Toro 59-0610

DISCONTINUED

$

$

Not available

Toro 57-9290

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 57-9300

DISCONTINUED X-REF

Note: Not illustrated

$

$

Not available
