30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 006000001 - 006999999) (1986) Cutting Unit Model No. 30562 (continued) Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

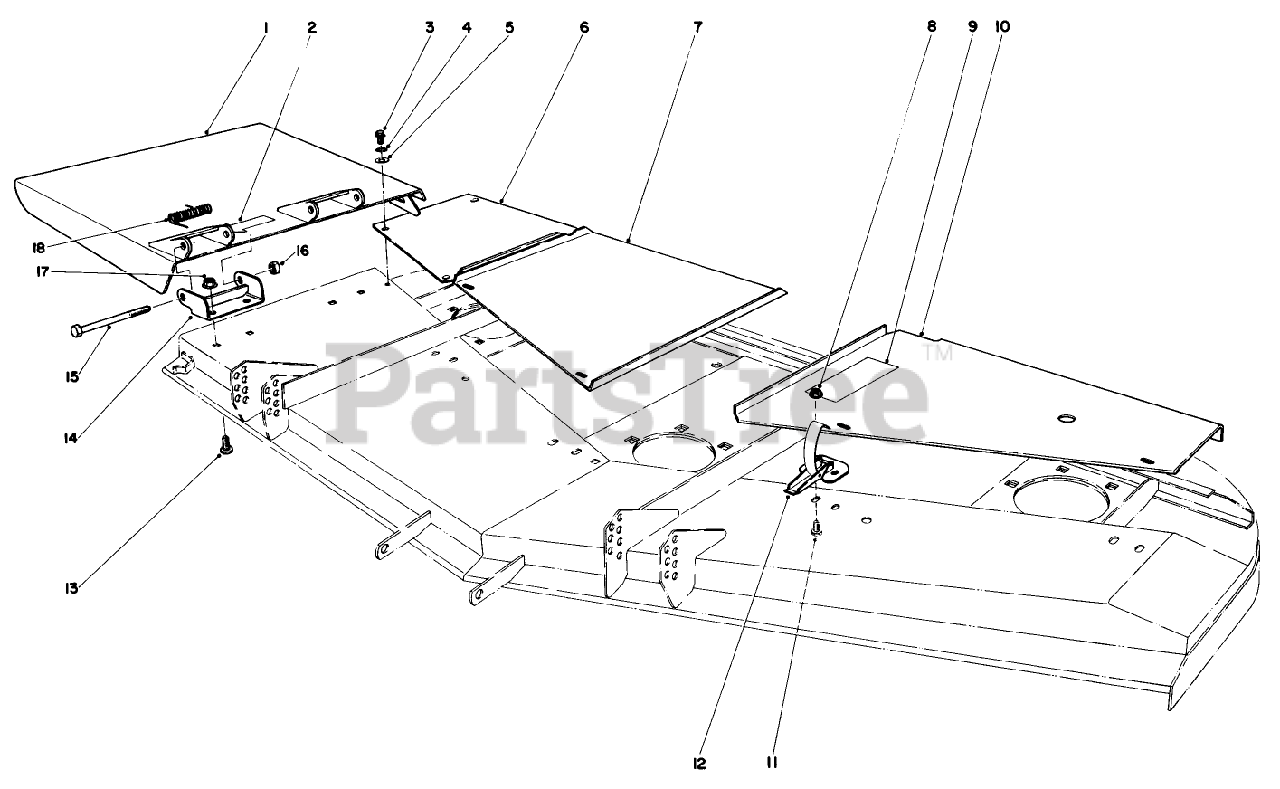

Cutting Unit Model No. 30562 (continued) Parts Diagram

  • Title

1

Toro 52-5790

See Supercession: 14-0909
(Superseded to 14-0909)

$403.99

$

Usually ships in 3-6 days

0

2

Toro 26-7120

DISCONTINUED

$

$

Not available

3

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

4

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 44-6280

DISCONTINUED

$

$

Not available

7

Toro 44-6270

CTR DECK COVER *R

$

$

Not available

8

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

9

Toro 42-6860

DISCONTINUED

$

$

Not available

10

Toro 44-6290

See Supercession: 44-6290-01
(Superseded to 44-6290-01)

$

$

Not available

11

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

12

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

13

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 10

0

14

Toro 51-1530

See Supercession: 51-1530-01
(Superseded to 51-1530-01)

$40.99

$

Usually ships in 3-6 days

0

15

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

16

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 51-1550

SPRING

$13.99

$

In Stock, only 2 left!

0
