30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 006000001 - 006999999) (1986) Cutting Unit Model No. 30555 (continued) 2 Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

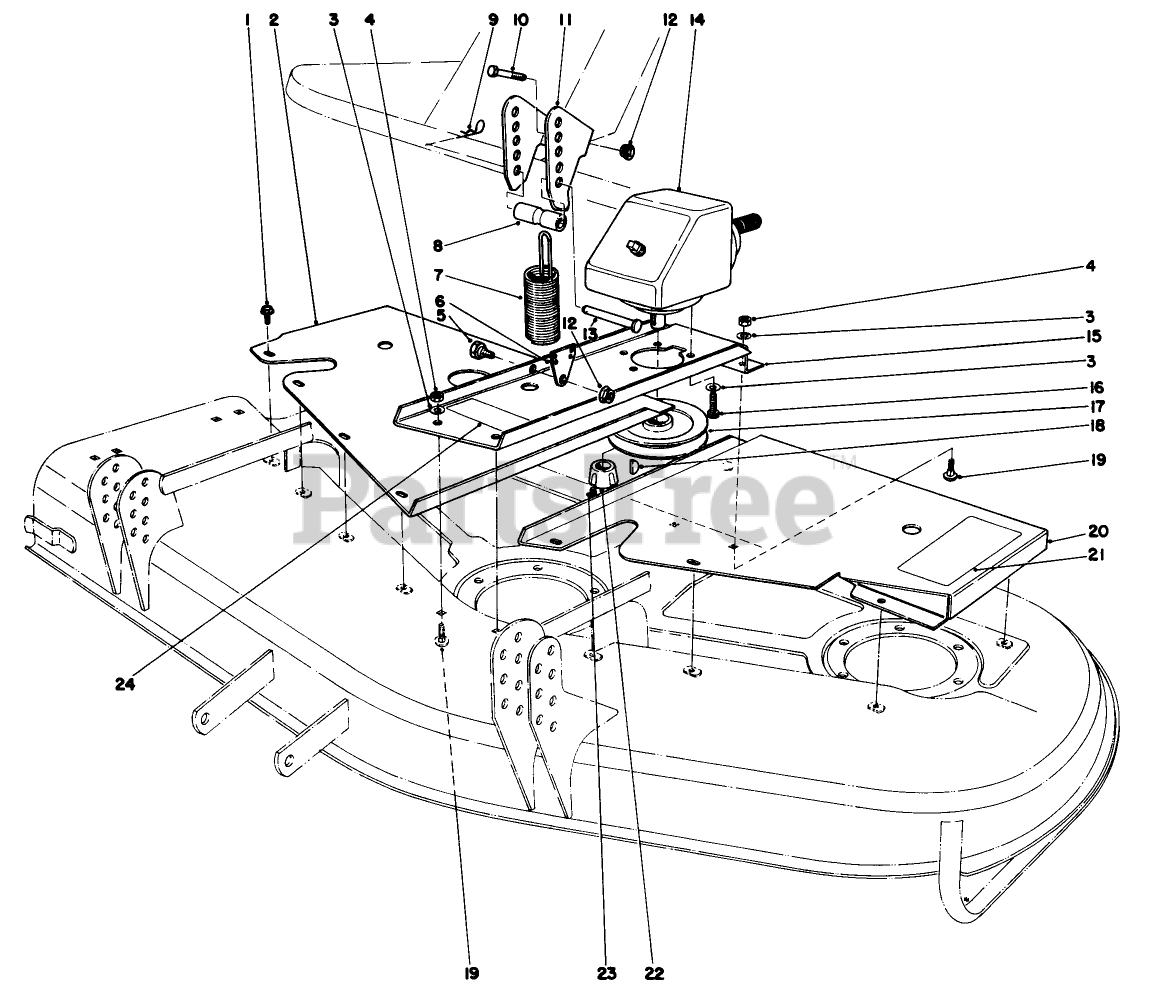

Cutting Unit Model No. 30555 (continued) 2 Parts Diagram

  • Title
1

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

2

Toro 40-0410

RH COVER WA *R

$

$

Not available

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

4

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

5

Toro 46-3380

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

6

Toro 46-3190

DISCONTINUED

$

$

Not available

7

Toro 46-3200

See Supercession: 46-3200-01
(Superseded to 46-3200-01)

$99.99

$

Usually ships in 3-6 days

0

8

Toro 40-0300

SPACER

$

$

Not available

9

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

10

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 46-2620

SPRING BRACKET *R

$106.99

$

Usually ships in 3-6 days

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

14

Toro 8-0909

DISCONTINUED

$

$

Not available

15

Toro 40-0360

DISCONTINUED

$

$

Not available

16

Toro 3274-1

SCREW-HSH

$8.99

$

Usually ships in 3-6 days

0

17

Toro 27-6110

DISCONTINUED

$

$

Not available

18

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

19

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

20

Toro 40-0390

LH COVER WA *R

$221.99

$

Usually ships in 3-6 days

0

21

Toro 42-6860

DISCONTINUED

$

$

Not available

22

Toro 27-6140

BUSHING-LOCK, TAPER

$103.99

$

Usually ships in 3-6 days

0

23

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 20+

0

24

Toro 44-6470

See Supercession: 55-4300
(Superseded to 55-4300)

$14.99

$

Usually ships in 3-6 days

0
