30555 - Toro 52" Mower Deck for Groundsmaster 200 Series (SN: 004000001 - 004999999) (1984) Engine Onan Model No. B48g-Ga020 Type No. 4139e Camshaft And Flywheel Alternator Parts Diagram

52" Mower Deck for Groundsmaster 200 Series

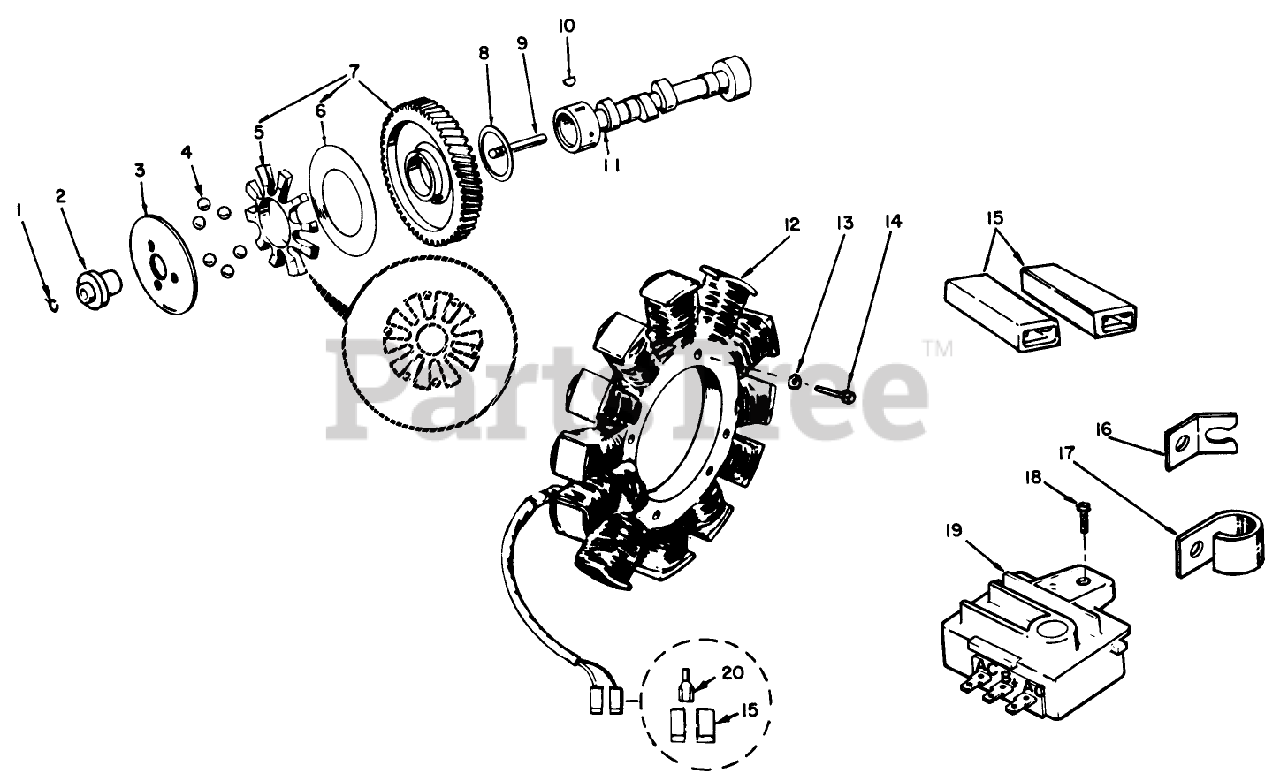

Engine Onan Model No. B48g-Ga020 Type No. 4139e Camshaft And Flywheel Alternator Parts Diagram

  • Title

1

Toro 150-0078

Ring, Retaining

$

$

Currently unavailable

2

Toro 150-1519

Hub, Governor Cup

$

$

Currently unavailable

3

Toro 150-1520

Cup, Governor

$

$

Currently unavailable

4

Toro 510-0015

Ball, Governor

$

$

Currently unavailable

5

Toro 150-1257

Spacer, Flyball

$

$

Currently unavailable

6

Toro 150-0077

Plate, Flyball

$

$

Currently unavailable

7

Toro 105-0332

Gear, Camshaft(Incl. Ref. #5 6)

$

$

Currently unavailable

8

Toro 105-0541

Washer, Thrust

$

$

Currently unavailable

9

Toro 150-0075

Pin, Center

$

$

Currently unavailable

10

Toro 515-0001

Key Crankshaft Gear

$

$

Currently unavailable

11

Toro 105-0402

Camshaft (Incl. Ref. #9)

$

$

Currently unavailable

12

Toro 191-1256

Stator (Incl. Ref. #15 20)

$

$

Currently unavailable

13

Toro 850-0030

Washer-Lock

$

$

Currently unavailable

14

Toro 813-0148

Screw-Machine, Round Hd.

$

$

Currently unavailable

15

Toro 323-1216

Body, Terminal Connector (AC Terminals)

$

$

Currently unavailable

16

Toro 167-0188

Bracket, Alternator Lead

$

$

Currently unavailable

17

Toro 3322-319

INSTALLATION INSTRUCTIONS

$3.23

$

Usually ships in 3-6 days

0

18

Toro 821-0007

Screw-Cap Hex Washer Hd.

$

$

Currently unavailable

19

Toro 191-1206

Regulator Voltage

$

$

Currently unavailable

20

Toro 3322-423

INSTALLATION INSTRUCTION

$3.23

$

Usually ships in 3-6 days

0
