30550 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 080000001 - 089999999) (1978) SEAT AND MOUNT ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

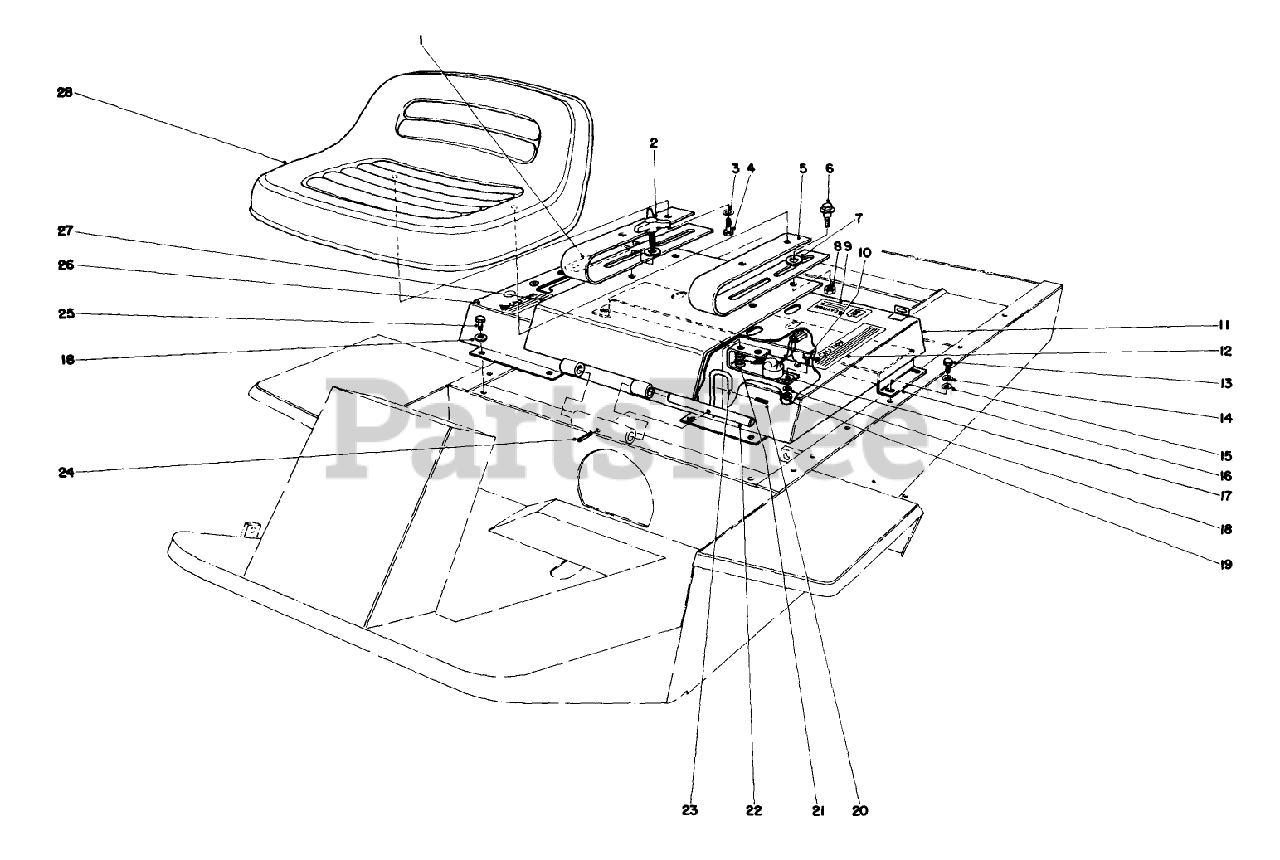

SEAT AND MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 28-3290

Decal Caution
(Superseded to 67-1710)

$8.99

$

Usually ships in 3-6 days

0

2

Toro 27-4570

KNOB-SEAT

$28.99

$

Usually ships in 3-6 days

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

5

Toro 27-4580

Seat Spring

$

$

Not available

6

Toro 27-5240

BOLT-SHOULDER

$22.99

$

Usually ships in 3-6 days

0

7

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 27-7310

DECAL-REFUELING

$34.99

$

Usually ships in 3-6 days

0

10

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

11

Toro 27-4760

Cover-Seat Support

$

$

Not available

12

Toro 27-4620

Decal Caution
(Superseded to 68-7330)

$

$

Not available

13

Toro 32104-6

SCREW-HH, TAP

$3.99

$

Usually ships in 3-6 days

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 27-4730

Seat Support

$

$

Not available

17

Toro 33-0290

SEAT SWITCH

$

$

Not available

18

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

20

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

21

Toro 3-6685

SPRING

$10.99

$

Usually ships in 3-6 days

0

22

Toro 27-4720

SHAFT-PIVOT, SEAT

$

$

Not available

23

Toro 27-8190

Pin Seat Switch

$

$

Not available

24

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

25

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

26

Toro 274390

Decal-Hydraulic Lift

$

$

Currently unavailable

27

Toro 27-4690

Seat Mount

$

$

Not available

28

Toro 27-5170

SEAT

$

$

Currently unavailable
