30550 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 070000001 - 079999999) (1977) GAS TANK ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

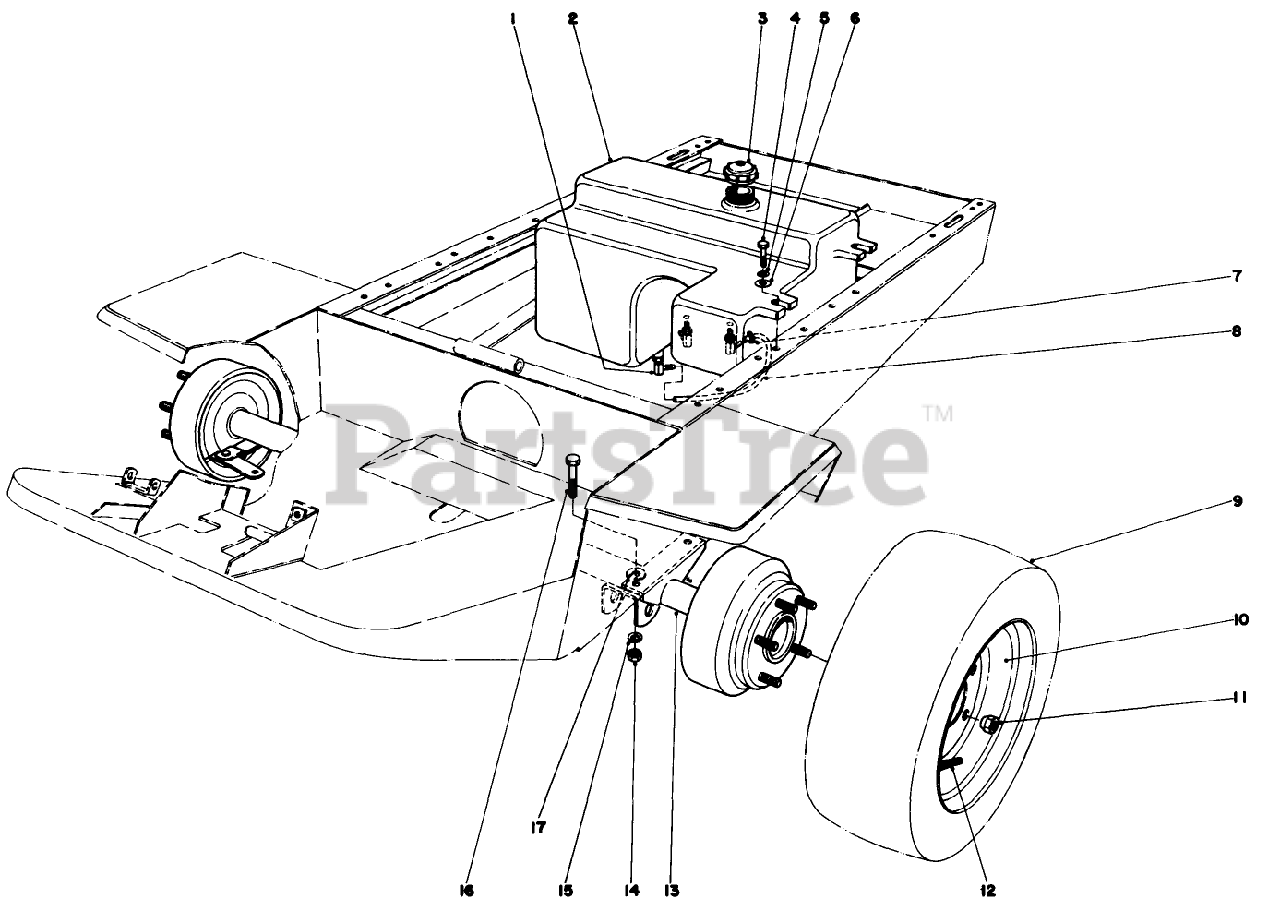

GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 353-536

FITTING-ELBOW, 90 DEG

$

$

Not available

2

Toro 26-9310

Gas Tank

$

$

Not available

3

Toro 10-7950

GAS CAP

$80.99

$

Usually ships in 3-6 days

0

4

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 15

0

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

8

Toro 27-5370

HOSE-FUEL
(Superseded to 110-4101)

$20.99

$

Usually ships in 3-6 days

0

9

Toro 231-87

Tire
(Superseded to 231-103)

$

$

Not available

10

Toro 217-107

WHEEL ASM

$

$

Not available

11

Toro 242-35

NUT-WHEEL

$9.99

$

Usually ships in 3-6 days

0

12

Toro 232-35

VALVE STEM AND CAP ASM
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

13

Toro 27-3580

Axle

$

$

Not available

14

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

15

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3249

Capscrew

$

$

Not available

17

Toro 28-5640

SPECIAL WASHER

$

$

Not available
