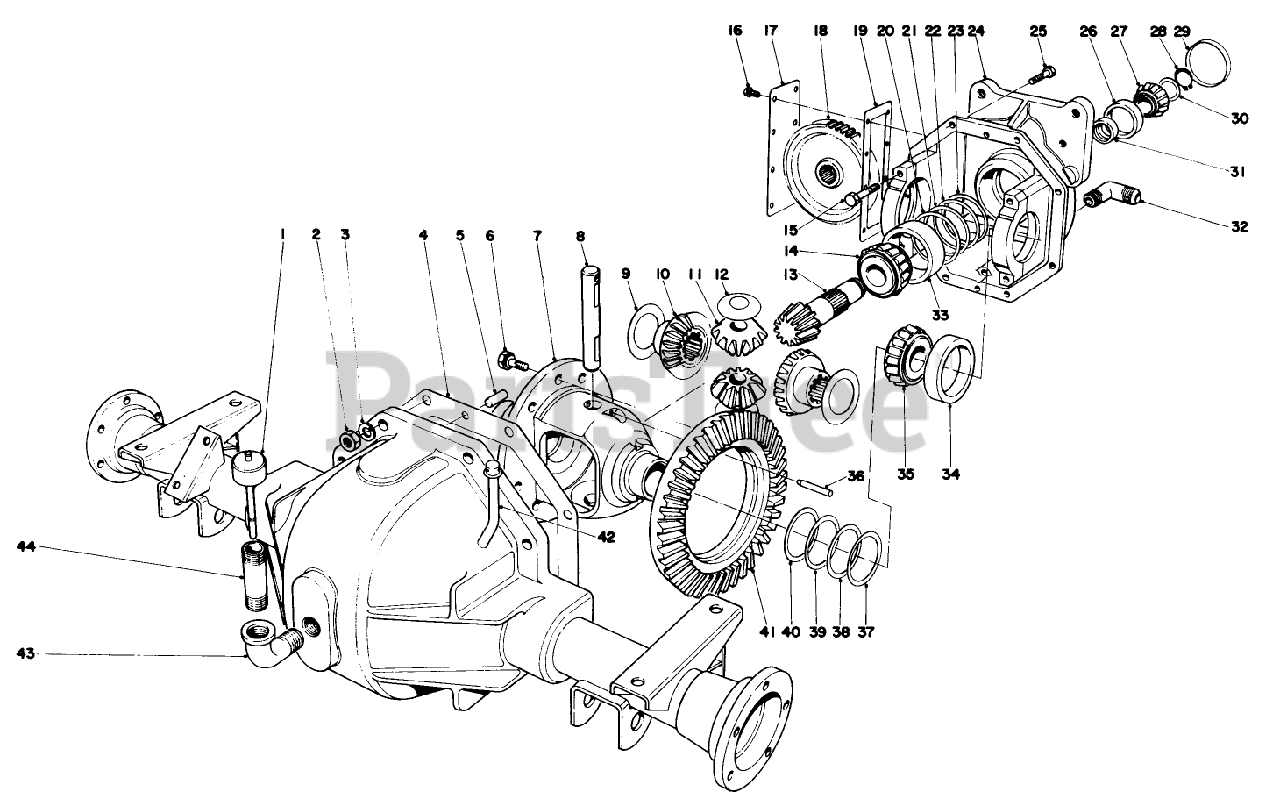

30550 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 070000001 - 079999999) (1977) DIFFERENTIAL ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 27-3710

DIPSTICK

$

$

Not available

2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

4

Toro 21-8280

HSG GASKET

$

$

Not available

5

Toro 21-8270

PIN-DOWEL

$8.99

$

Usually ships in 3-6 days

0

6

Toro 21-7770

SCREW-GEAR, DRIVE

$2.99

$

Usually ships in 3-6 days

0

7

Toro 21-7670

CASE-DIFFERENTIAL

$822.99

$

Usually ships in 3-6 days

0

8

Toro 21-7700

SHAFT-MATE, PINION

$64.99

$

Usually ships in 3-6 days

0

9

Toro 21-7720

WASHER-THRUST

$4.49

$

Usually ships in 3-6 days

0

10

Toro 24-8790

GEAR-DIFFERENTIAL
(Superseded to 110-4143)

$952.99

$

Usually ships in 3-6 days

0

11

Toro 21-7690

PINION-DIFFERENTIAL
(Superseded to 110-4143)

$952.99

$

Usually ships in 3-6 days

0

12

Toro 21-7730

WASHER-THRUST, PINION

$3.99

$

Usually ships in 3-6 days

0

13

Drive Pinion (Incl. Ref. # 41)

$

$

Not available

14

Toro 21-8080

ROLLER BRG CONE

$

$

Not available

15

Toro 324-23

SCREW-HH
(Superseded to 92-1773)

$4.49

$

Usually ships in 3-6 days

0

16

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

17

Toro 21-7830

COVER-GEAR

$32.99

$

Usually ships in 3-6 days

0

18

Toro 21-8150

Gear-Spur
(Superseded to 86-7230)

$827.99

$

Usually ships in 3-6 days

0

19

Toro 21-7820

GEAR COVER GASKET

$

$

Not available

20

Toro 21-8030

REAR PINION BRG SHIM

$

$

Not available

21

Toro 21-8040

BRG SHIM .005

$

$

Not available

22

Toro 21-8050

BRG SHIM .010

$

$

Not available

23

Toro 21-8060

BRG SHIM .030

$

$

Not available

24

Toro 27-6840

UPPER HSG ASM

$

$

Not available

25

Toro 28-0660

Screw
(Superseded to 99-5691)

$7.99

$

Usually ships in 3-6 days

0

26

Toro 254-90

BEARING-CUP

$12.99

$

Usually ships in 3-6 days

0

27

Toro 21-8010

BRG CONE

$

$

Not available

28

Toro 32120-32

Retaining Ring
(Superseded to 32151-83)

$0.99

$

Usually ships in 3-6 days

0

29

Toro 21-7850

PLUG-CUP

$27.99

$

Usually ships in 3-6 days

0

30

Toro 21-7870

FRT PINION BRG SHIM

$

$

Not available

Toro 21-7880

BRG SHIM .033

Note: Not illustrated

$

$

Not available

Toro 21-7890

BRG SHIM .035

Note: Not illustrated

$

$

Not available

Toro 21-7900

BRG SHIM .037

Note: Not illustrated

$

$

Not available

Toro 21-7910

Pin Bearing Shim Front (.039)

Note: Not illustrated

$

$

Not available

Toro 21-7920

Pin Bearing Shim Front (.041)

Note: Not illustrated

$

$

Not available

Toro 21-7930

Pin Bearing Shim Front (.043)

Note: Not illustrated

$

$

Not available

Toro 21-7940

Pin Bearing Shim Front (.045)

Note: Not illustrated

$

$

Not available

Toro 21-7950

Pin Bearing Shim Front (.047)

Note: Not illustrated

$

$

Not available

Toro 21-7960

Pin Bearing Shim Front (.049)

Note: Not illustrated

$

$

Not available

Toro 21-7970

Pin Bearing Shim Front (.051)

Note: Not illustrated

$

$

Not available

Toro 21-7980

Pin Bearing Shim Front (.053)

Note: Not illustrated

$

$

Not available

Toro 21-7990

Pin Bearing Shim Front (.055)

Note: Not illustrated

$

$

Not available

Toro 21-8000

Pin Bearing Shim Front (.057)

Note: Not illustrated

$

$

Not available

31

Toro 21-8020

SPACER-BEARING

$38.99

$

Usually ships in 3-6 days

0

32

Toro 353-533

90 DEG FITTING

$

$

Currently unavailable

33

Toro 21-8070

ROLLER BRG CUP

$

$

Not available

34

Toro 254-66

CUP-BEARING, ROLLER

$17.99

$

Usually ships in 3-6 days

0

35

Toro 254-65

BEARING-ROLLER, CONE

$74.99

$

Usually ships in 3-6 days

0

36

Toro 21-7710

Pin-Roll
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

37

Toro 21-8090

SHIM-BEARING, DIFFERENTIAL (.003)

$1.49

$

Usually ships in 3-6 days

0

38

Toro 21-8100

SHIM-BEARING, DIFFERENTIAL (.005)

$4.99

$

Usually ships in 3-6 days

0

39

Toro 21-8110

SHIM-BEARING, DIFFERENTIAL (.010)

$4.99

$

Usually ships in 3-6 days

0

40

Toro 21-8120

SHIM-BEARING, DIFFERENTIAL (.030)

$7.49

$

Usually ships in 3-6 days

0

41

Ring Gear

$

$

Not available

42

Toro 21-8230

Vent Assembly
(Superseded to 72-9420)

$9.49

$

Usually ships in 3-6 days

0

43

Toro 2811-9

FITTING-ELBOW-90

$18.99

$

Usually ships in 3-6 days

0

44

Toro 289-38

PIPE NIPPLE

$

$

Not available

Toro 21-7740

Gear & Pinion Assembly (Incl. Ref. # 13 & 41)
(Superseded to 28-0640)

Note: Not illustrated

$

$

Not available
