30548 - Toro 48" Recycler Mower Deck for ProLine 118 (SN: 020000001 - 029999999) (1992) GEAR CASE ASSEMBLY Parts Diagram

48" Recycler Mower Deck for ProLine 118

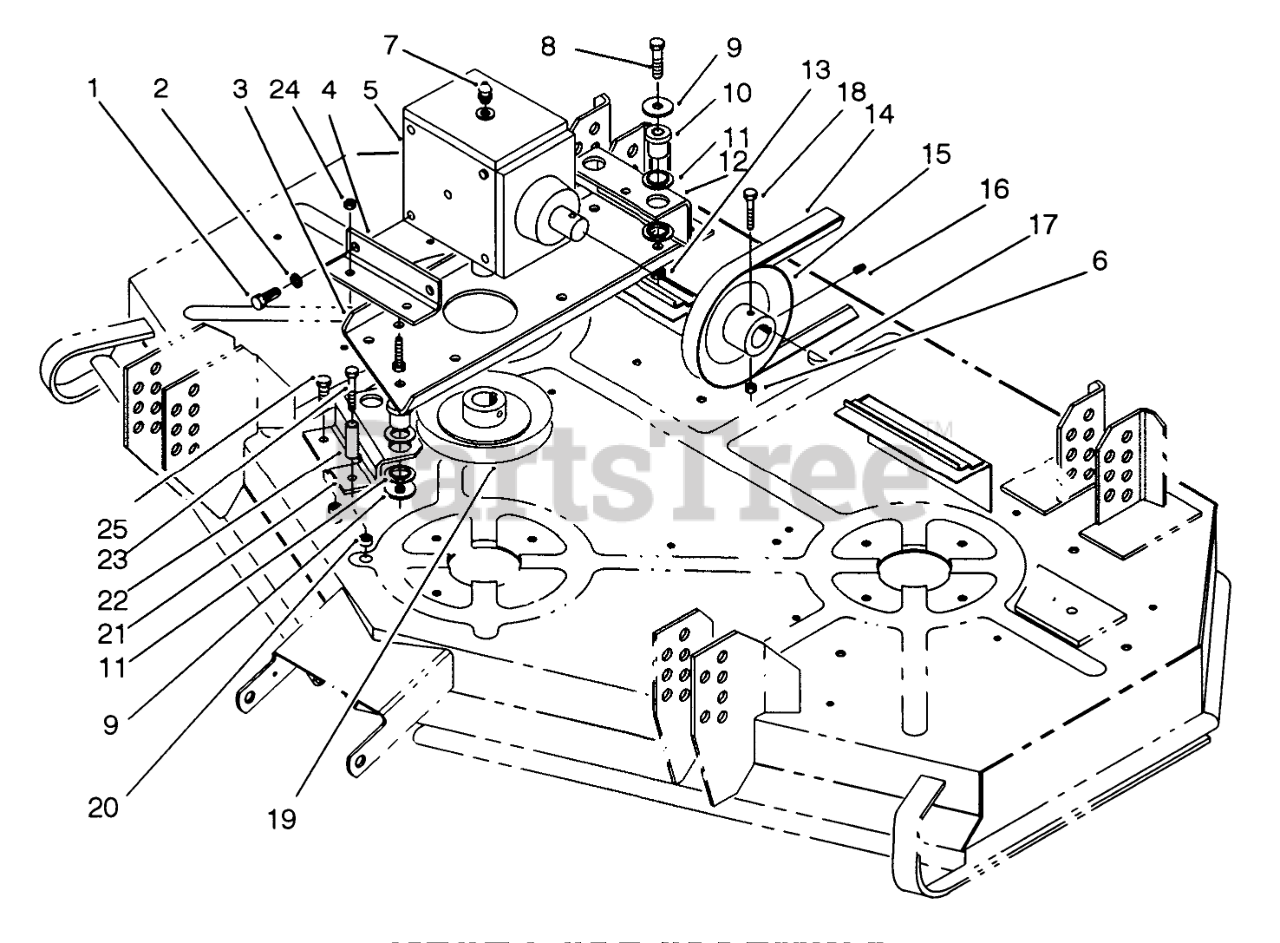

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

3

Toro 72-8460

PLATE - MTG GEAR BOX R

$

$

Not available

4

Toro 72-8450

ANGLE - GEAR BOX MTG R

$

$

Not available

5

Toro 53-4600

Gear Box
(Superseded to 53-4600-01)

$

$

Not available

6

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

7

Toro 302-34

FITTING-LUBE

$11.99

$

Usually ships in 3-6 days

0

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

10

Toro 63-9750

MOUNT

$20.99

$

In Stock, only 3 left!

0

11

Toro 72-7700

INSERT

$

$

Not available

12

Toro 72-8270

PLATE BRACKET R

$

$

Not available

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

14

Toro 72-8170

V-BELT

$128.99

$

Usually ships in 3-6 days

0

15

Toro 72-8220

PULLEY - INPUT

$157.99

$

Usually ships in 3-6 days

0

16

Toro 3241-2

SCREW-SQH
(Superseded to 3241-7)

$3.99

$

In Stock, only 2 left!

0

17

Toro 3257-14

KEY

$6.99

$

Usually ships in 3-6 days

0

18

Toro 321-16

SCREW-HH
(Superseded to 120-2011)

$6.49

$

Usually ships in 3-6 days

0

19

Toro 82-2510

PULLEY

$

$

Not available

20

Toro 3290-472

INSERT-THREADED

$

$

Not available

21

Toro 72-8280

PLATE BRACKET R

$

$

Not available

22

Toro 47-0920

OUTER TUBE SPACER

$

$

Not available

23

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
