30548 - Toro 48" Recycler Mower Deck for ProLine 118 (SN: 020000001 - 029999999) (1992) CARRIER FRAME ASSEMBLY Parts Diagram

48" Recycler Mower Deck for ProLine 118

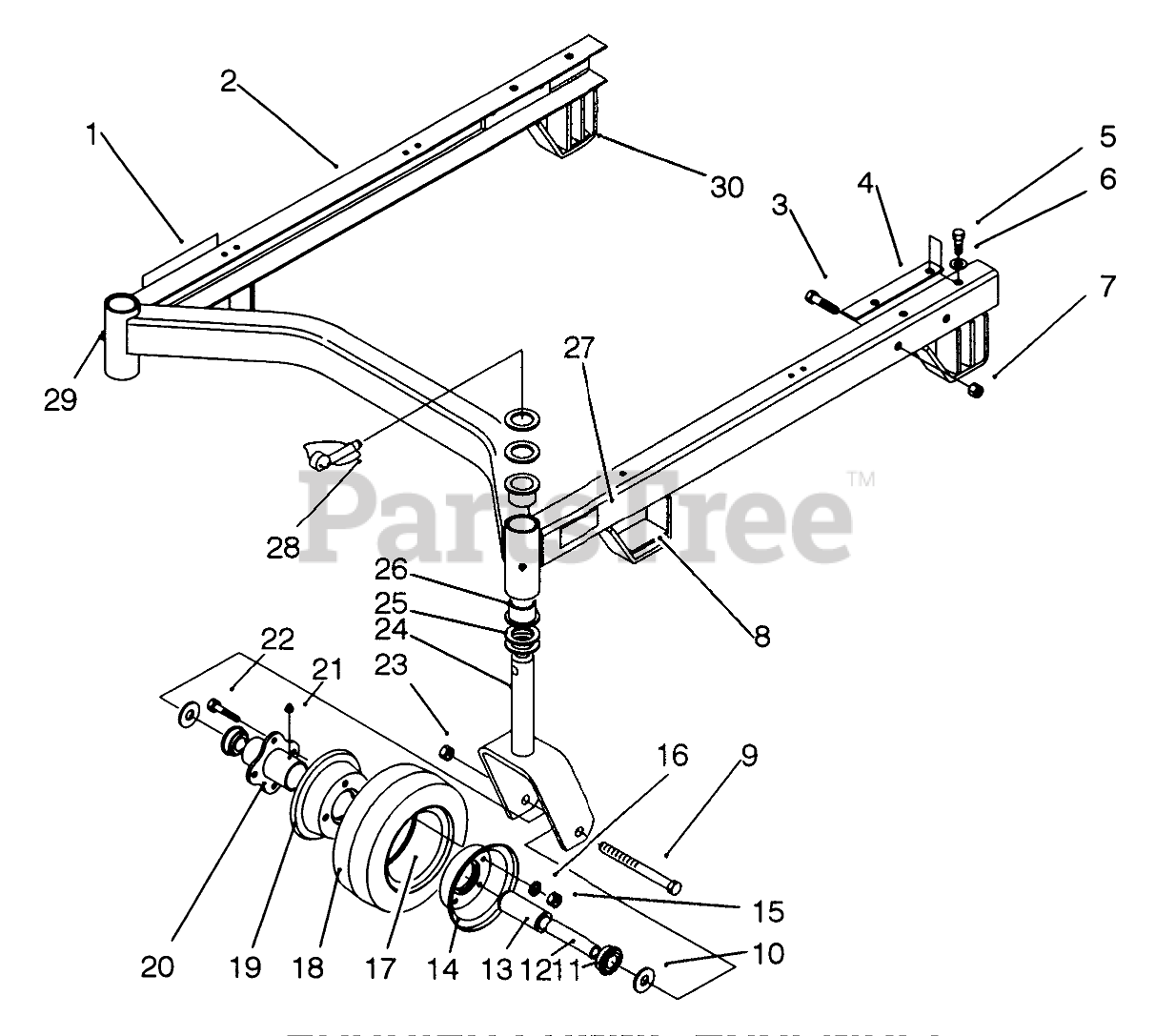

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

2

Toro 55-4630

Frame-Suspension Ass-y
(Superseded to 94-4165)

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 62-6980

SHIM-CARRIER

$

$

Not available

5

Toro 3235-21

SCREW W/PATCH

$

$

Not available

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

7

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

8

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

9

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

10

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

12

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

13

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

14

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

15

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

18

$64.99

$

In Stock, only 1 left!

0

19

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

20

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

21

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

22

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

23

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

24

Toro 68-8900

Castor Fork
(Superseded to 68-8900-01)

$119.99

$

Usually ships in 3-6 days

0

25

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

26

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 10

0

27

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

28

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 74-0341

CUSHION-RUBBER

$

$

Not available

Toro 13-3869

Castor Wheel Assembly (Incl. Ref.#10-22)
(Superseded to 68-8970)

$127.99

$

Usually ships in 3-6 days

0
