30546 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 200000001 - 200999999) (2000) Carrier Frame Assembly Parts Diagram

44" Mower Deck for Groundsmaster 120

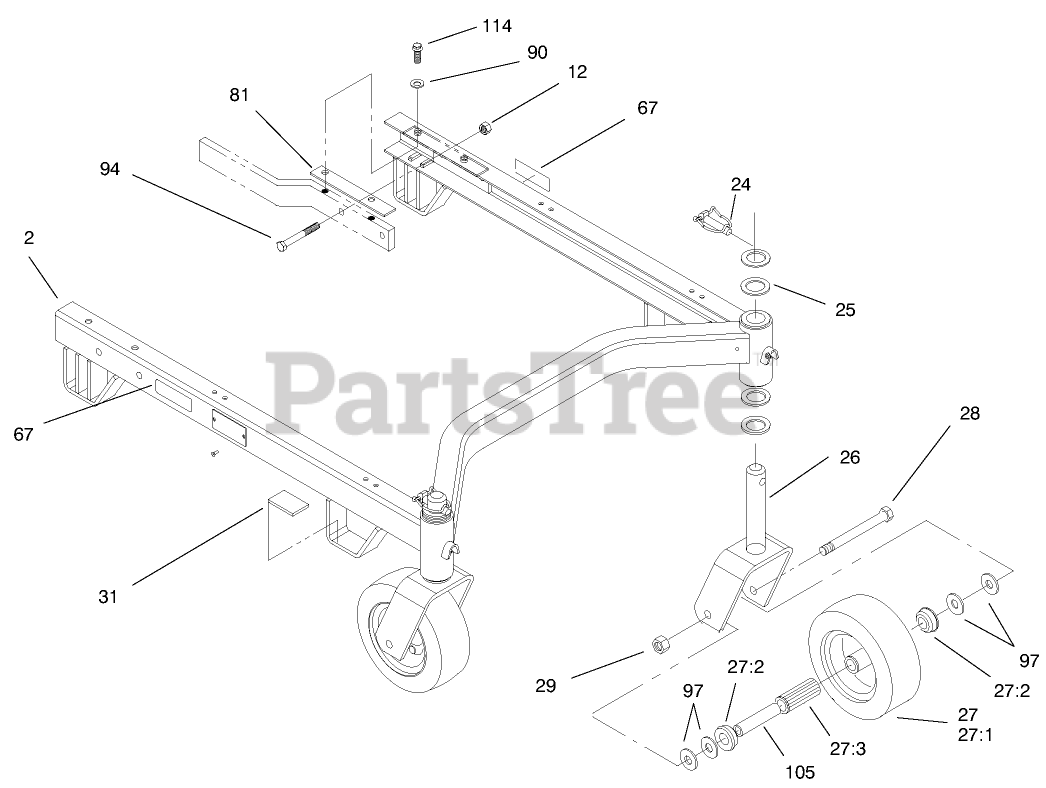

Carrier Frame Assembly Parts Diagram

  • Title

2

Toro 94-5830

SUSPENSION W A

$

$

Not available

12

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

24

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

25

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

26

Toro 98-2858

See Supercession: 98-2858-01
(Superseded to 98-2858-01)

$

$

Not available

27

Toro 98-2859

CASTOR WHEEL ASM

$143.99

$

Usually ships in 3-6 days

0

27:1

Toro 98-2877

TIRE-TUBELESS

$

$

Not available

27:2

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

27:3

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

27:4

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

Note: Not illustrated

$6.99

$

In Stock, Qty 16

0

27:5

Toro 302-11

FITTING-LUBE, 45 DEG

Note: Not illustrated

$1.99

$

In Stock, only 2 left!

0

28

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

29

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

31

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

67

Toro 93-7819

DECAL-HOC

$9.99

$

Usually ships in 3-6 days

0

81

Toro 62-6980

SHIM-CARRIER

$

$

Not available

90

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

94

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

97

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

105

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

114

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0
