30545 - Toro 52" Walk-Behind Mower (SN: 090000001 - 099999999) (1979) Heater Kit Model No. 30878 Parts Diagram

52" Walk-Behind Mower

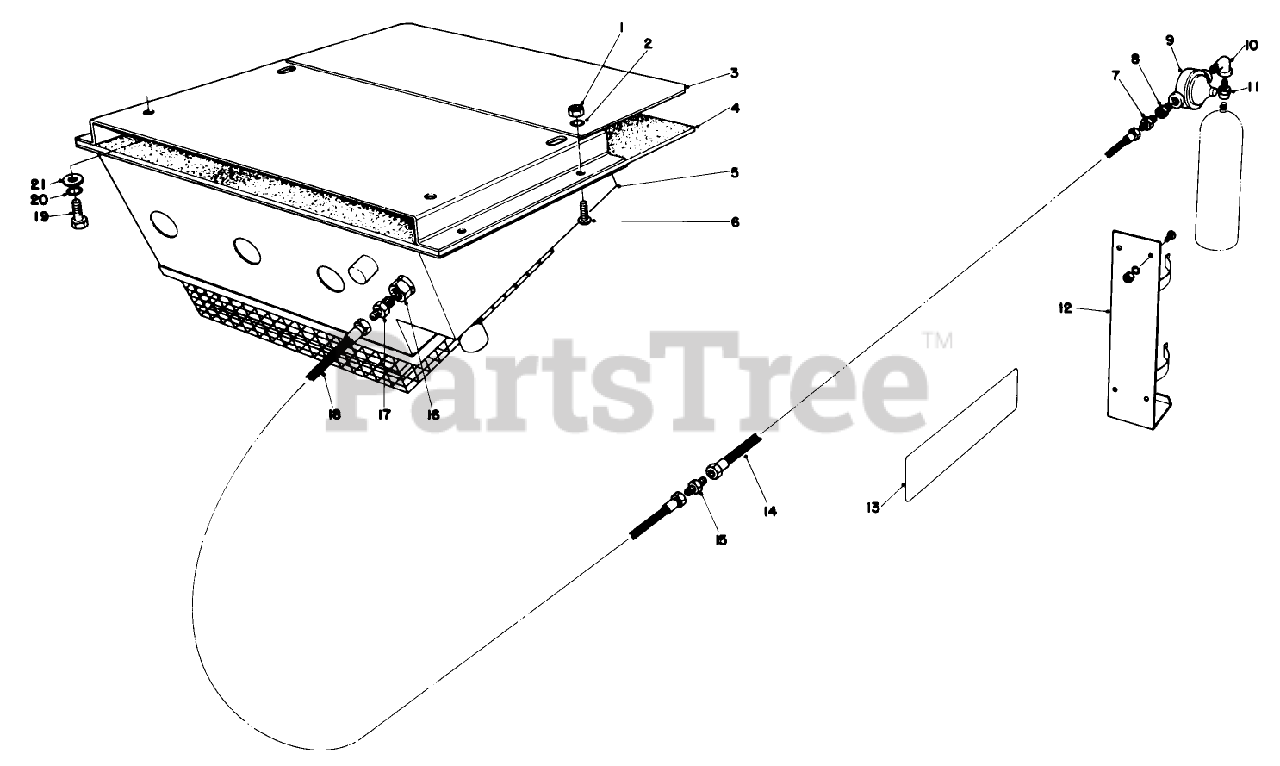

Heater Kit Model No. 30878 Parts Diagram

  • Title
1

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

2

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

3

Toro 32-2920

Mounting Bracket

$

$

Currently unavailable

4

Heat Shield

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Not available

5

Toro WH500S

Heater-Catalytic

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Currently unavailable

6

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

7

1/4 MPT x 9/16 L.H. Adapter

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Not available

8

3/8 MPT x 1/4 FPT Bushing

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Not available

9

Toro 832-11

W.G. Regulator

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Currently unavailable

10

1/4 FPT x 1/4 MPT Street Elbow

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Not available

11

Toro 1313

Tool Din

$

$

Currently unavailable

12

Toro 1912

Cylinder Bracket

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Currently unavailable

13

Toro 38-5380

Decal-Danger

$

$

Currently unavailable

14

72" Lg. Fuel Line

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Not available

15

Toro 567

Hose Connector 9/16 L.H. x 9/16 L.H. Union

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Currently unavailable

16

1/4 FPT x 1/8 FPT Adaptor

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Not available

17

9/16 x 1/4 MPT Adaptor

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Not available

18

48" Lg. Fuel Line

Note: Note: Obtain parts from Leslie Mfg. Supply Co. 4700 West 78th Street, Minneapolis, Minn. 55435

$

$

Not available

19

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

20

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

Toro 30-1110

Heater-Catalytic Assem. (Incl. Ref. #4-5, 7-12, 14-18)

Note: Not illustrated

$

$

Currently unavailable
