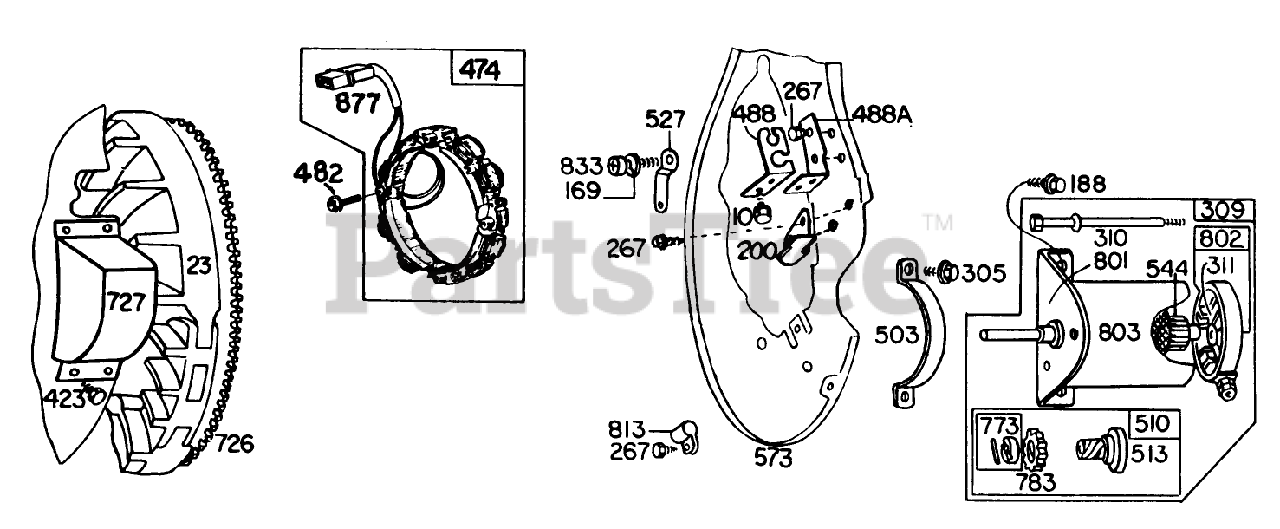

30545 - Toro 52" Walk-Behind Mower (SN: 090000001 - 099999999) (1979) Engine Model No. 326437-0262-01 2 Parts Diagram

52" Walk-Behind Mower

Engine Model No. 326437-0262-01 2 Parts Diagram

  • Title
10

Toro 93394

Screw

$

$

Currently unavailable

23

Toro 391363

Flywheel Assembly

$

$

Currently unavailable

169

Toro 90832

Washer-Lock

$

$

Currently unavailable

188

Toro 93535

Crew

$

$

Currently unavailable

200

Toro 222581

Deflector-Air

$

$

Not available

267

Toro 93612

Screw

$

$

Currently unavailable

305

Toro 93158

Screw

$

$

Currently unavailable

309

Toro 391178

Motor-Starting

$

$

Currently unavailable

310

Toro 391790

Thru Bolt Assembly

$

$

Currently unavailable

311

Toro 391791

Brush Set

$

$

Currently unavailable

423

Toro 93410

Screw

$

$

Currently unavailable

474

Toro 393474

Alternator

$

$

Currently unavailable

482

Toro 93621

Screw

$

$

Currently unavailable

488

Toro 222211

Bracket-Fuse

$

$

Currently unavailable

488A

Toro 222345

Backet-Output Bracket Mounting

$

$

Currently unavailable

503

Toro 222331

Strap-Starter

$

$

Not available

510

Toro 391461

Drive Assembly (Incl. Ref. #513)

$

$

Currently unavailable

513

Toro 391135

Clutch Assembly

$

$

Currently unavailable

527

Toro 222192

Bracket-Alternator Harness

$

$

Currently unavailable

544

Toro 391160

Armature Assembly

$

$

Currently unavailable

573

Toro 391220

Plate-Back

$

$

Currently unavailable

726

Toro 391362

Gear-Flywheel Ring (Includes Mounting Parts)

$

$

Currently unavailable

727

Toro 391238

Cover-Starter

$

$

Currently unavailable

773

Toro 391462

Gear-Starter

$

$

Currently unavailable

783

$

$

Currently unavailable

801

Toro 392062

Drive End Bracket Assembly-Starter

$

$

Currently unavailable

802

Toro 391172

Housing Assembly

$

$

Currently unavailable

803

Toro 391167

Housing Assembly

$

$

Currently unavailable

813

Toro 93732

Clamp-Stator Wire

$

$

Currently unavailable

833

Toro 93743

Screw-Machine

$

$

Currently unavailable

877

Toro 393456

Wire/Connector-Alternator

$

$

Currently unavailable
