30545 - Toro 52" Walk-Behind Mower (SN: 090000001 - 099999999) (1979) Deck Covers And Gear Box Parts Diagram

52" Walk-Behind Mower

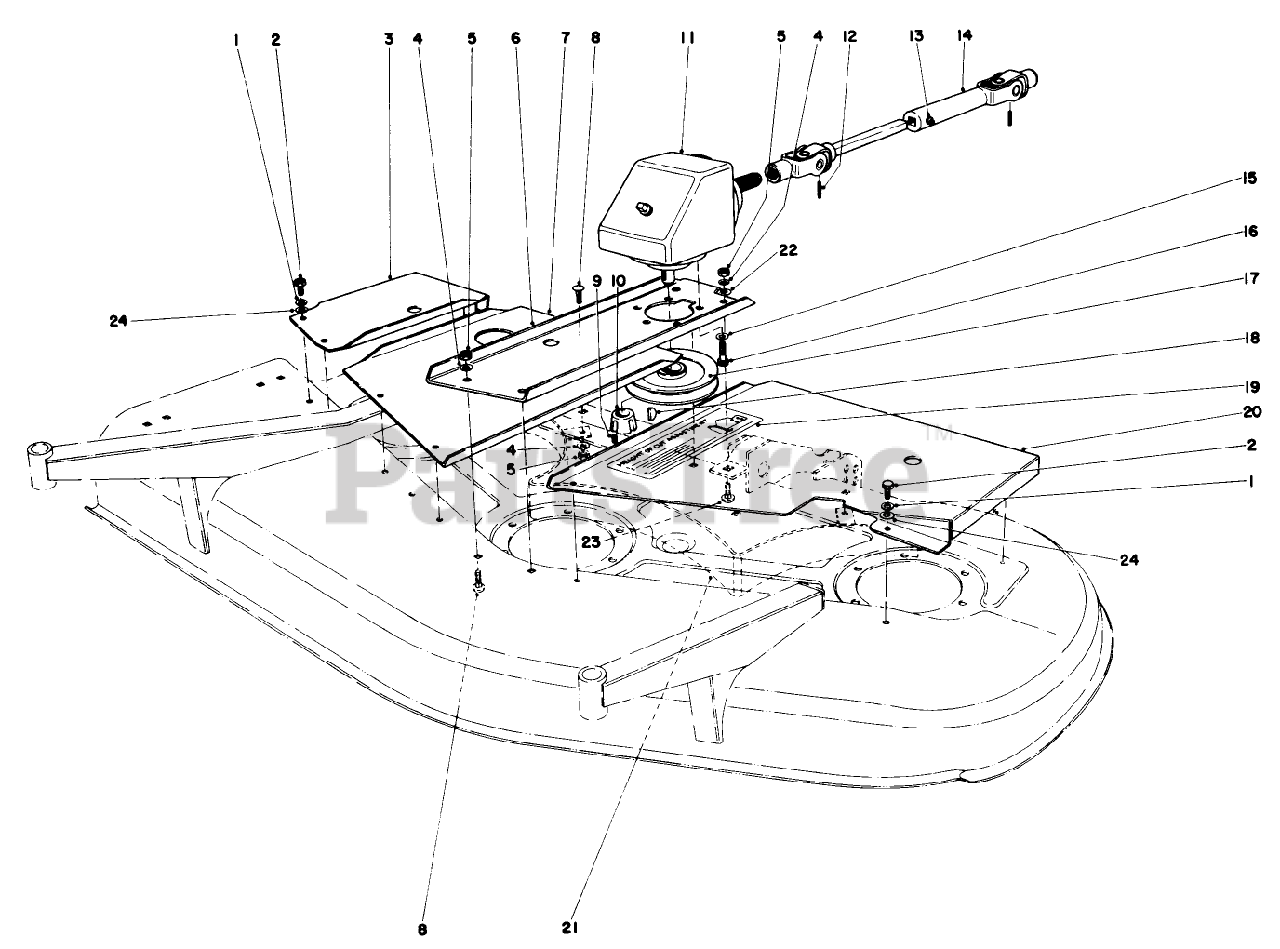

Deck Covers And Gear Box Parts Diagram

  • Title
1

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

3

Toro 27-7450

DISCONTINUED
(Superseded to 42-6440)

$

$

Not available

4

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

5

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

6

Toro 27-0720

See Supercession: 42-6390
(Superseded to 42-6390)

$

$

Not available

7

Toro 27-7430

DISCONTINUED

$

$

Not available

8

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

9

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

10

Toro 27-6140

BUSHING-LOCK, TAPER

$58.99

$

Usually ships in 3-6 days

0

11

Toro 8-0909

DISCONTINUED

$

$

Not available

12

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 27-4520

UNIVERSAL JOINT

$

$

Not available

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

17

Toro 27-6110

DISCONTINUED

$

$

Not available

18

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 7

0

19

Toro 27-1280

DISCONTINUED

$

$

Not available

20

Toro 27-7440

See Supercession: 42-6360
(Superseded to 42-6360)

$

$

Not available

21

Toro 27-0760

DISCONTINUED

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
