30545 - Toro 52" Walk-Behind Mower (SN: 080000001 - 089999999) (1978) TRACTION PEDAL ASSEMBLY Parts Diagram

52" Walk-Behind Mower

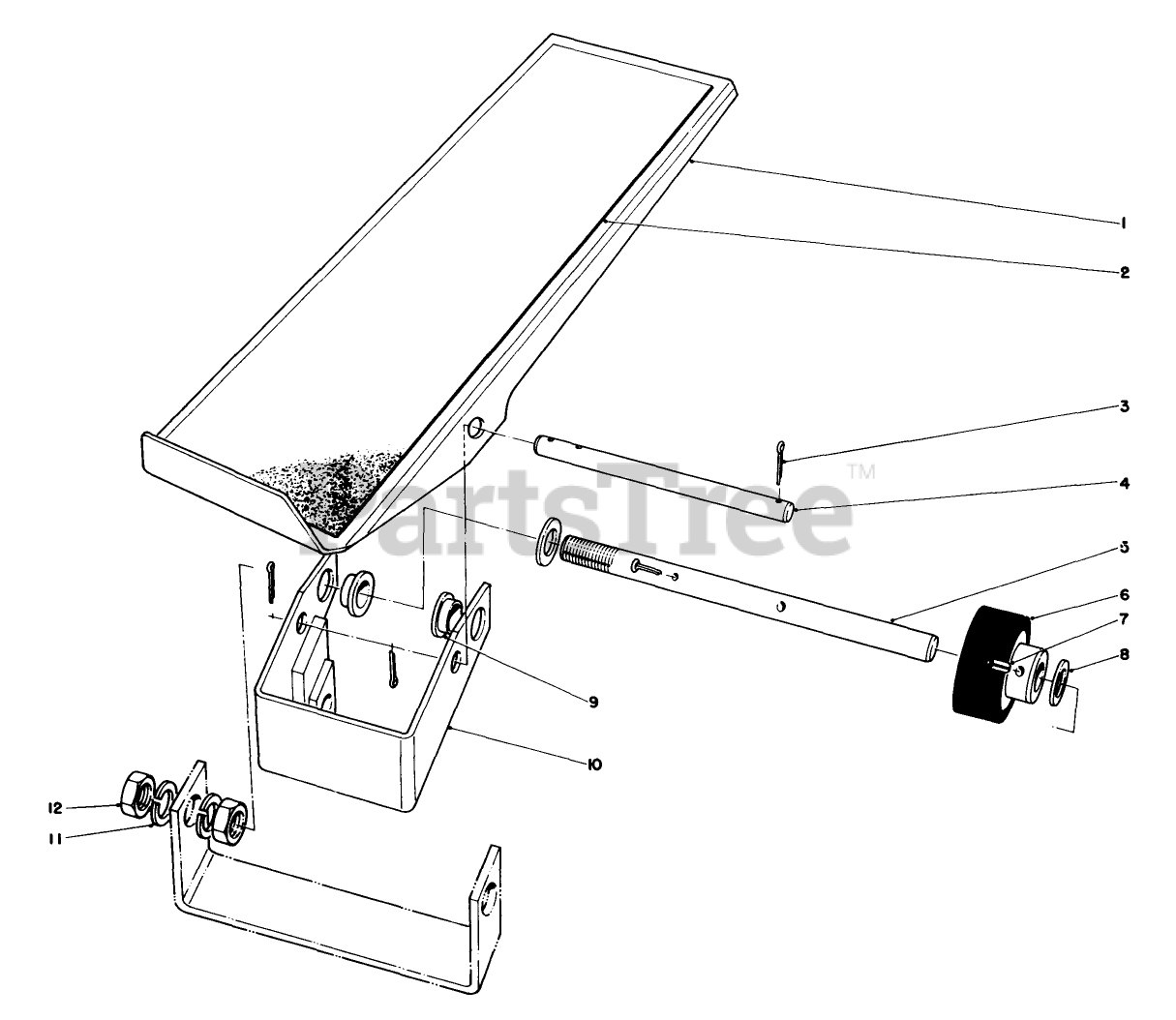

TRACTION PEDAL ASSEMBLY Parts Diagram

  • Title
1

Toro 29-5670

Pedal-Traction
(Superseded to 29-5670-01)

$

$

Not available

2

Toro 28-5130

TRACTION PEDAL PAD

$

$

Not available

3

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

4

Toro 29-5630

PEDAL PIVOT PIN

$

$

Not available

5

Toro 29-5640

Shaft-Traction Pedal
(Superseded to 70-9830)

$

$

Not available

6

Toro 28-5220

FRICTION WHEEL ASM

$116.99

$

Usually ships in 3-6 days

0

7

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

8

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

9

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

10

Toro 29-5600

Pivot Bracket Assembly (Incl. Ref. #9)
(Superseded to 29-5600-01)

$

$

Not available

11

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

12

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0
