30545 - Toro 52" Walk-Behind Mower (SN: 070000001 - 079999999) (1977) DECK COVERS AND GEAR BOX Parts Diagram

52" Walk-Behind Mower

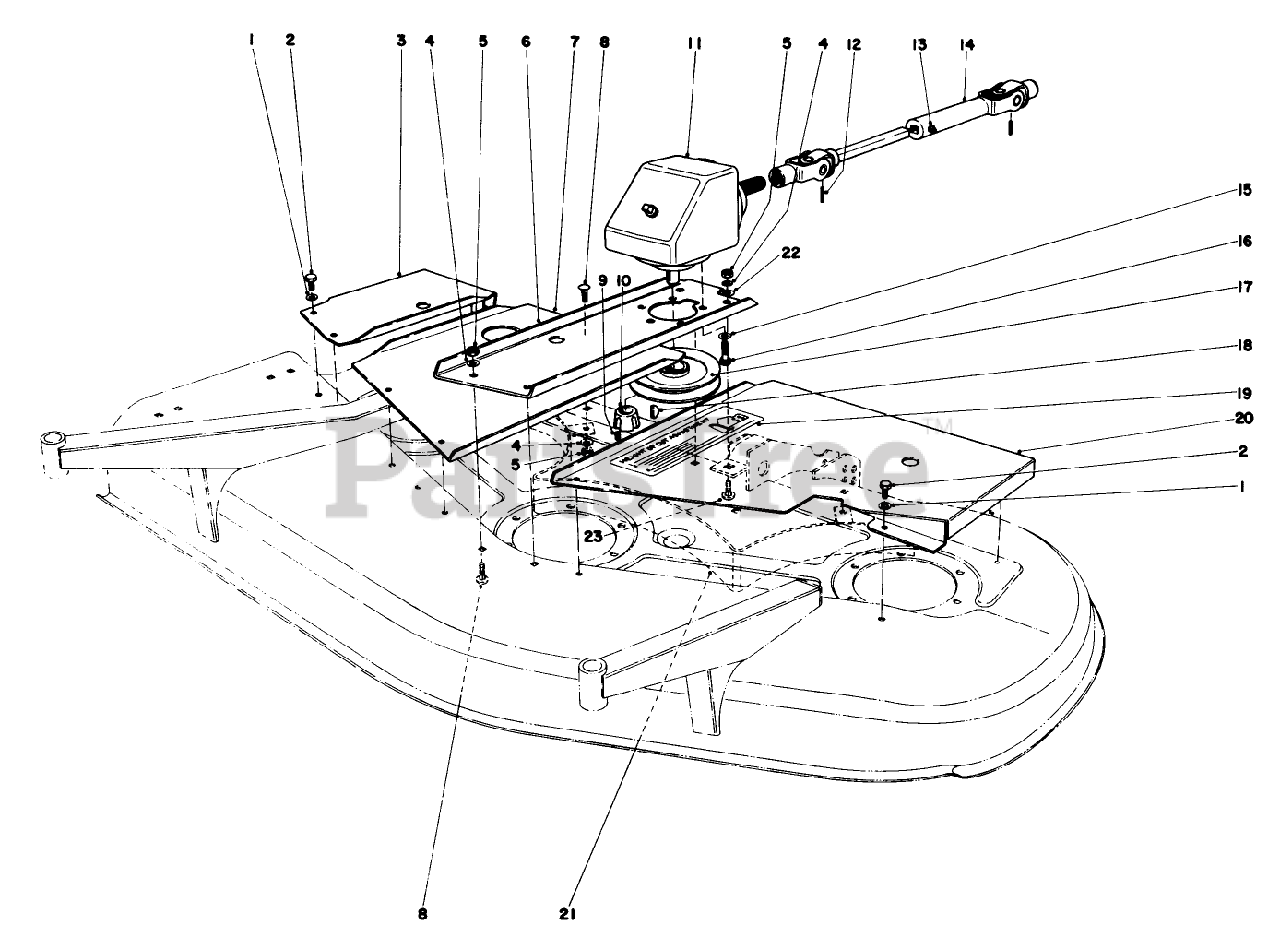

DECK COVERS AND GEAR BOX Parts Diagram

  • Title
1

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

3

Toro 27-7450

Deck Cover Right
(Superseded to 42-6440)

$

$

Not available

4

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

5

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

6

Toro 27-0720

Gear Box Base
(Superseded to 42-6390)

$

$

Not available

7

Toro 27-7430

CTR DECK COVER WA R

$

$

Not available

8

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

9

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

10

Toro 27-6140

BUSHING-LOCK, TAPER

$103.99

$

Usually ships in 3-6 days

0

11

Toro 27-0790

Gear Box Assembly
(Superseded to 8-0909)

$

$

Not available

12

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 27-4520

UNIVERSAL JOINT

$

$

Not available

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

17

Toro 27-6110

PULLEY WA BO

$

$

Not available

18

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

19

Toro 27-1280

H O C DECAL

$

$

Not available

20

Toro 27-7440

Deck Cover Left
(Superseded to 42-6360)

$

$

Not available

21

Toro 27-0760

BAFFLE WA B

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

23

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0
