30545 - Toro 52" Walk-Behind Mower (SN: 010000001 - 019999999) (1981) VALVE AND LEVER ASSEMBLY Parts Diagram

52" Walk-Behind Mower

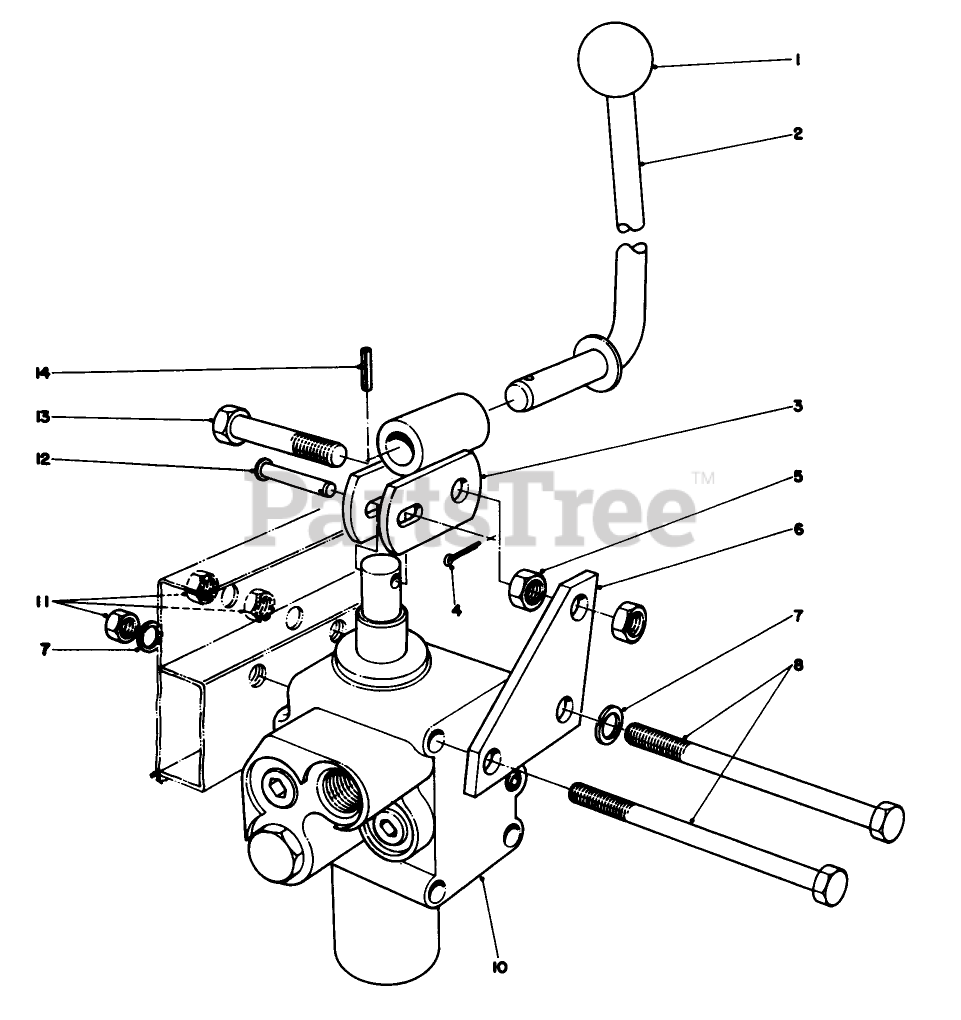

VALVE AND LEVER ASSEMBLY Parts Diagram

  • Title
1

Toro 233-39

KNOB-CONTROL

$17.99

$

Usually ships in 3-6 days

0

2

Toro 274200

Valve Lever

$

$

Currently unavailable

3

Toro 27-4220

Valve Lever Link
(Superseded to 27-4220-03)

$

$

Not available

4

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

6

Toro 274230

Bolt-Wheel

$

$

Currently unavailable

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-34

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

10

Toro 274190

Valve

$

$

Currently unavailable

11

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

12

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

13

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0
