30545 - Toro 52" Walk-Behind Mower (SN: 010000001 - 019999999) (1981) PEDALS, HOOD AND STEERING WHEEL ASSEMBLY Parts Diagram

52" Walk-Behind Mower

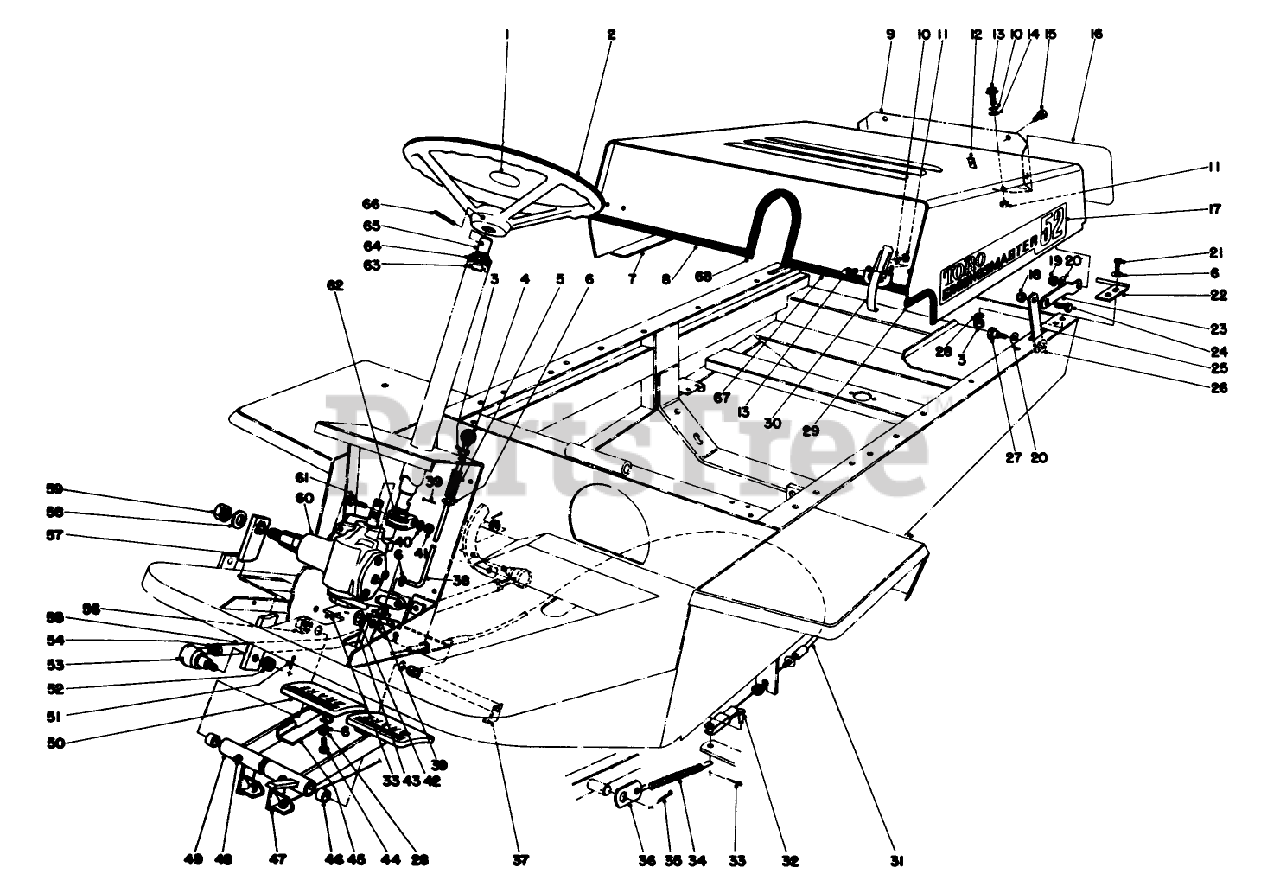

PEDALS, HOOD AND STEERING WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 24-2090

STEERING WHEEL CAP

$

$

Not available

2

Toro 25-6260

STEERING WHEEL
(Superseded to 9547)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

4

Toro 233-17

KNOB

$12.99

$

Usually ships in 3-6 days

0

5

Toro 3-3251

Spring
(Superseded to 95-1821)

$8.49

$

Usually ships in 3-6 days

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 38-3220

Hood
(Superseded to 11-6409)

$

$

Not available

8

Toro 38-4080

TRIM-HOOD

$

$

Not available

9

Toro 36-0680

HOOD SCREEN B

$

$

Not available

10

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

11

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

12

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

13

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

16

Toro 36-4630

S-LINK

$

$

Currently unavailable

17

Toro 38-4190

GM-52 DECAL

$

$

Not available

18

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

19

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 27-4830

PivotPin L.H.
(Superseded to 27-4830-01)

$

$

Not available

Toro 27-4800

Pin-Pivot R.H.
(Superseded to 27-4800-01)

Note: Not illustrated

$

$

Not available

23

Toro 27-6800

Link Hood
(Superseded to 27-6800-01)

$

$

Not available

24

Toro 3211-27

SCREW-HH

$

$

Not available

25

Toro 27-6810

Tie Hood
(Superseded to 27-6810-01)

$18.99

$

Usually ships in 3-6 days

0

26

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

27

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

28

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 36-1970

HOOD TRIM

$

$

Not available

30

Toro 249-10

HOOK TYPE CLAMP

$

$

Currently unavailable

31

Toro 21-3370

RH BRAKE CABLE ASM
(Superseded to 108-1379)

$172.99

$

In Stock, only 4 left!

0

32

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

33

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

34

Toro 3-7243

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

35

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

36

Toro 27-5270

BRAKE SPRNG STRAP R

$

$

Not available

37

Toro 27-3480

Pin

$

$

Not available

38

Toro 27-3550

Rod Brake Latch
(Superseded to 27-3550-03)

$

$

Not available

39

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

40

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

41

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

42

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 27-3520

RACK WA

$

$

Not available

44

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

45

Toro 27-3560

Latch Parking Brake
(Superseded to 27-3560-03)

$

$

Not available

46

Toro 256-42

BUSHING

$8.99

$

Usually ships in 3-6 days

0

47

Toro 27-3460

Brake Pedal L.H. (Incl. Ref. #46 & 48)

$

$

Not available

48

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

49

Toro 27-3410

Brake Pedal R.H. (Incl. Ref. #46 & 48)

$

$

Not available

50

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

51

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

52

Toro 32136-4

NUT-SLOTTED

$2.49

$

In Stock, Qty 10

0

53

Toro 21-0140

Socket Assembly R.H. (Incl. Ref. #52)
(Superseded to 99-5686)

$

$

Not available

54

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

0

55

Toro 27-3390

FRONT STEERING TUBE B

$

$

Not available

56

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

57

Toro 29-9910

Pitman Arm

$

$

Not available

58

Toro 3253-9

WASHER-LOCK

$1.49

$

In Stock, only 3 left!

0

59

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

60

Toro 27-3290

Steering Gear
(Superseded to 55-8110)

$2527.99

$

Usually ships in 3-6 days

0

61

Toro 3232-16

7/16-14 X 1-3/4 BOLT

$

$

Not available

62

Toro 27-6640

CLAMP STRG COUPLING

$

$

Not available

63

Toro 251-275

BALL BRG

$

$

Not available

64

Toro 21-9260

COVER-DUST

$8.99

$

Usually ships in 3-6 days

0

65

Toro 36-0870

STRG SHAFT WA

$

$

Not available

66

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

67

Toro 38-4070

HOOD TRIM

$13.99

$

Usually ships in 3-6 days

0

68

Toro 37-9790

TRIM

$

$

Not available
