30545 - Toro 52" Walk-Behind Mower (SN: 010000001 - 019999999) (1981) CAB LIGHT KIT MODEL NO. 30581 Parts Diagram

52" Walk-Behind Mower

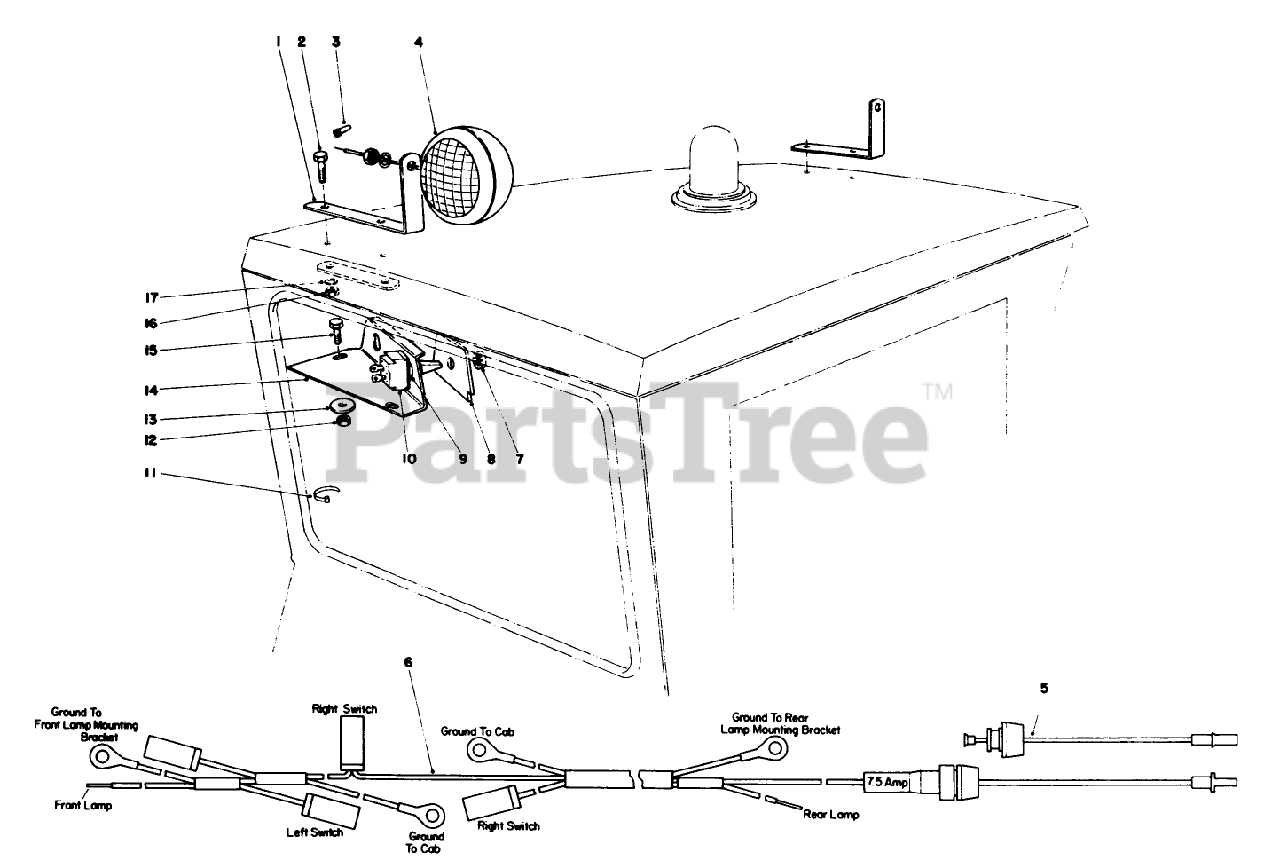

CAB LIGHT KIT MODEL NO. 30581 Parts Diagram

  • Title
1

Toro 38-0570

Mounting Bracket Headlamp

$

$

Not available

2

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 218-488

Connector

$

$

Not available

4

Toro 3-9010

Lamp Assy.

$

$

Currently unavailable

5

$

$

Not available

6

Toro 37-9170

Wire Harness

$

$

Not available

7

Toro 218-497

NUT-BULB

$

$

Not available

8

Toro 28-2510

DASH PANEL INSERT

$

$

Not available

9

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 2 left!

0

10

Toro 284-110

Light Switch

$

$

Currently unavailable

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

12

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, Qty 11

0

14

Toro 38-0580

Mounting Plate, Switch

$

$

Not available

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

17

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
