30545 - Toro 52" Walk-Behind Mower (SN: 000000001 - 009999999) (1980) VALVE ASSEMBLY 27-4190 Parts Diagram

52" Walk-Behind Mower

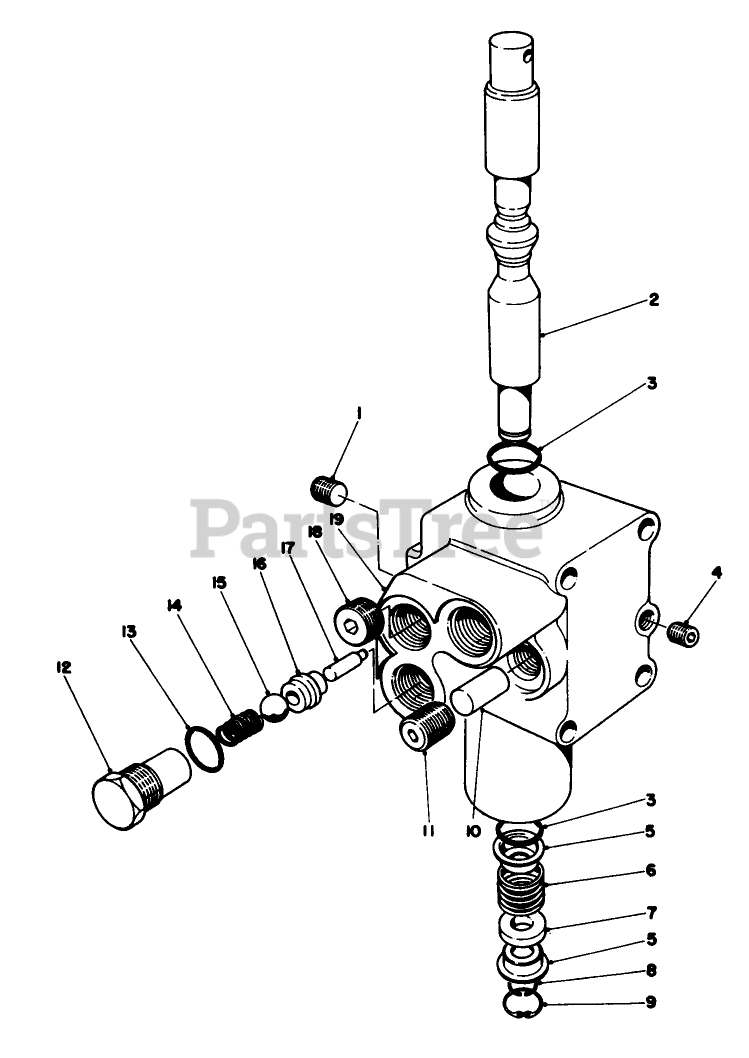

VALVE ASSEMBLY 27-4190 Parts Diagram

  • Title

1

Toro 28-1120

PLUG

$

$

Not available

2

Toro 27-5210

SPOOL

$

$

Not available

3

Toro 22-8500

O-RING

$19.99

$

Usually ships in 3-6 days

0

4

Toro 22-8510

Plug

$

$

Not available

5

Toro 22-8380

RETAINER

$23.99

$

Usually ships in 3-6 days

0

6

Toro 22-8410

SPRING

$20.99

$

Usually ships in 3-6 days

0

7

Toro 27-5200

FLOAT SPACER

$

$

Not available

8

Toro 22-8480

RING-SNAP

$59.99

$

Usually ships in 3-6 days

0

9

Toro 22-8490

RING-SNAP

$8.49

$

Usually ships in 3-6 days

0

10

Toro 36-3970

PLUG

$

$

Currently unavailable

11

Toro 36-3960

PLUG

$

$

Currently unavailable

12

Toro 22-8330

PLUG

$60.99

$

Usually ships in 3-6 days

0

13

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

14

Toro 22-8340

SPRING

$21.99

$

Usually ships in 3-6 days

0

15

Toro 22-8350

BALL

$13.99

$

Usually ships in 3-6 days

0

16

Toro 22-8370

SEAT-VALVE

$99.99

$

Usually ships in 3-6 days

0

17

Toro 22-8360

PIN

$53.99

$

Usually ships in 3-6 days

0

18

Toro 28-1130

PLUG

$

$

Not available

19

Toro 22-8320

Body
(Superseded to 43-1950)

$797.99

$

Usually ships in 3-6 days

0
