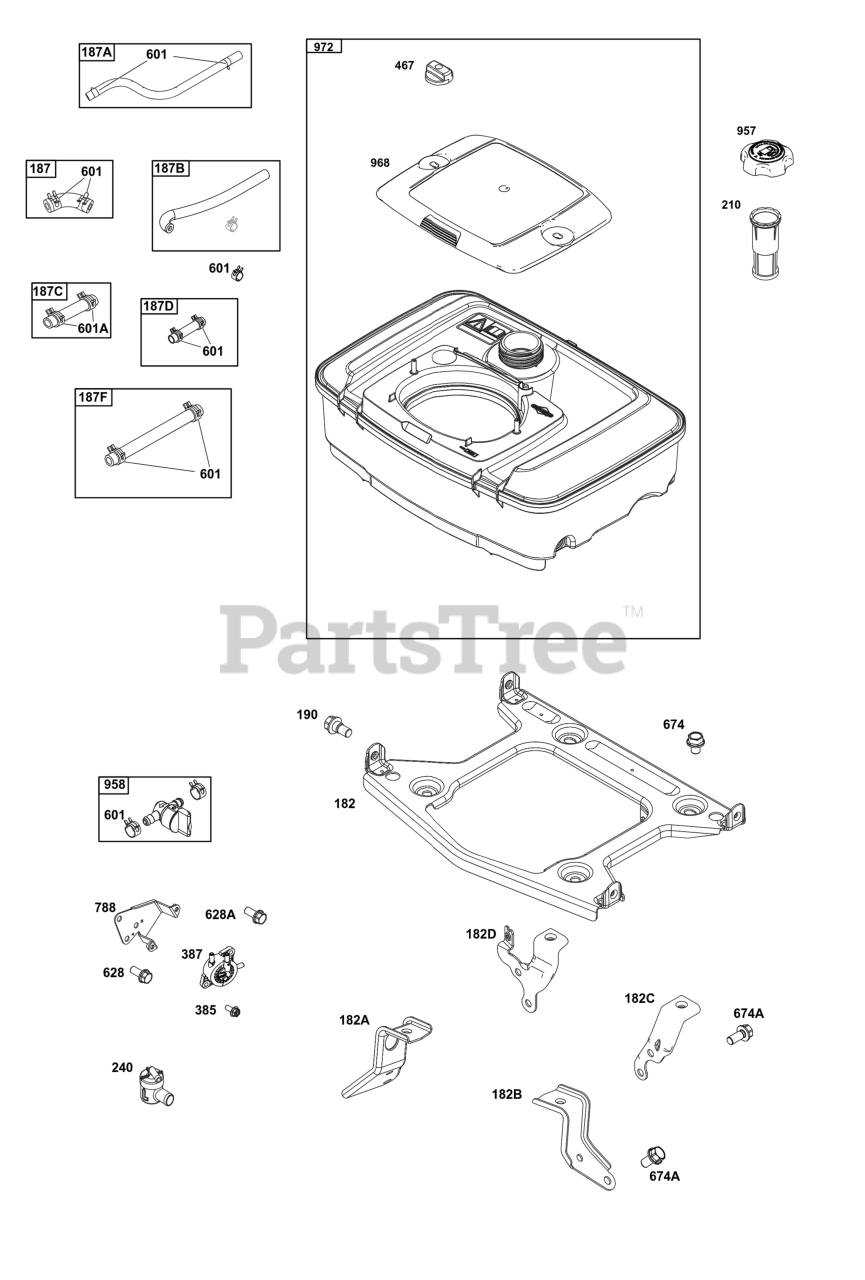

305447-0634-H5 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

Fuel Supply Group Parts Diagram

  • Title

182

Briggs & Stratton 846591

BRACKET, Fuel Tank

$120.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 841600

BRACKET-FUEL TANK

$28.99

$

Usually ships in 2-12 days

0

182B

Briggs & Stratton 691524

BRACKET, Fuel Tank

$38.99

$

Usually ships in 2-12 days

0

182C

Briggs & Stratton 691525

BRACKET, Fuel Tank

$22.99

$

Usually ships in 2-12 days

0

182D

Briggs & Stratton 691520

BRACKET, Fuel Tank

$38.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 846567

LINE, Fuel

Note: (Formed Hose)

$9.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 846318

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$34.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 84005182

LINE, Fuel

$58.99

$

Usually ships in 2-12 days

0

187C

Briggs & Stratton 692106

LINE, Fuel

Note: (Straight)

$13.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

187F

Briggs & Stratton 791880

LINE, Fuel

$11.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 692199

SCREW

Note: (Fuel Tank) (1/4-20 x 0.62 )

$3.49

$

In Stock, only 1 left!

0

210

Briggs & Stratton 691370

STRAINER, Fuel

$8.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 844545

FILTER, Fuel

$13.99

$

In Stock, Qty 11

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 844618

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 11

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

601A

Briggs & Stratton 691522

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

628

Briggs & Stratton 692062

SCREW

Note: (Fuel Pump Bracket) (M8x18mm)

$3.49

$

In Stock, Qty 20+

0

628A

Briggs & Stratton 806660

SCREW

$3.99

$

In Stock, only 1 left!

0

674

Briggs & Stratton 845964

SCREW

Note: (Fuel Tank Bracket) (M8x10mm)

$4.49

$

Usually ships in 2-12 days

0

674A

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, Qty 20+

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$24.99

$

In Stock, only 1 left!

0

957

Briggs & Stratton 795027

CAP, Fuel Tank

$10.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off

$8.49

$

In Stock, Qty 20+

0

968

COVER, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

972

Briggs & Stratton 844558

TANK, Fuel

$464.99

$

Usually ships in 2-12 days

0
