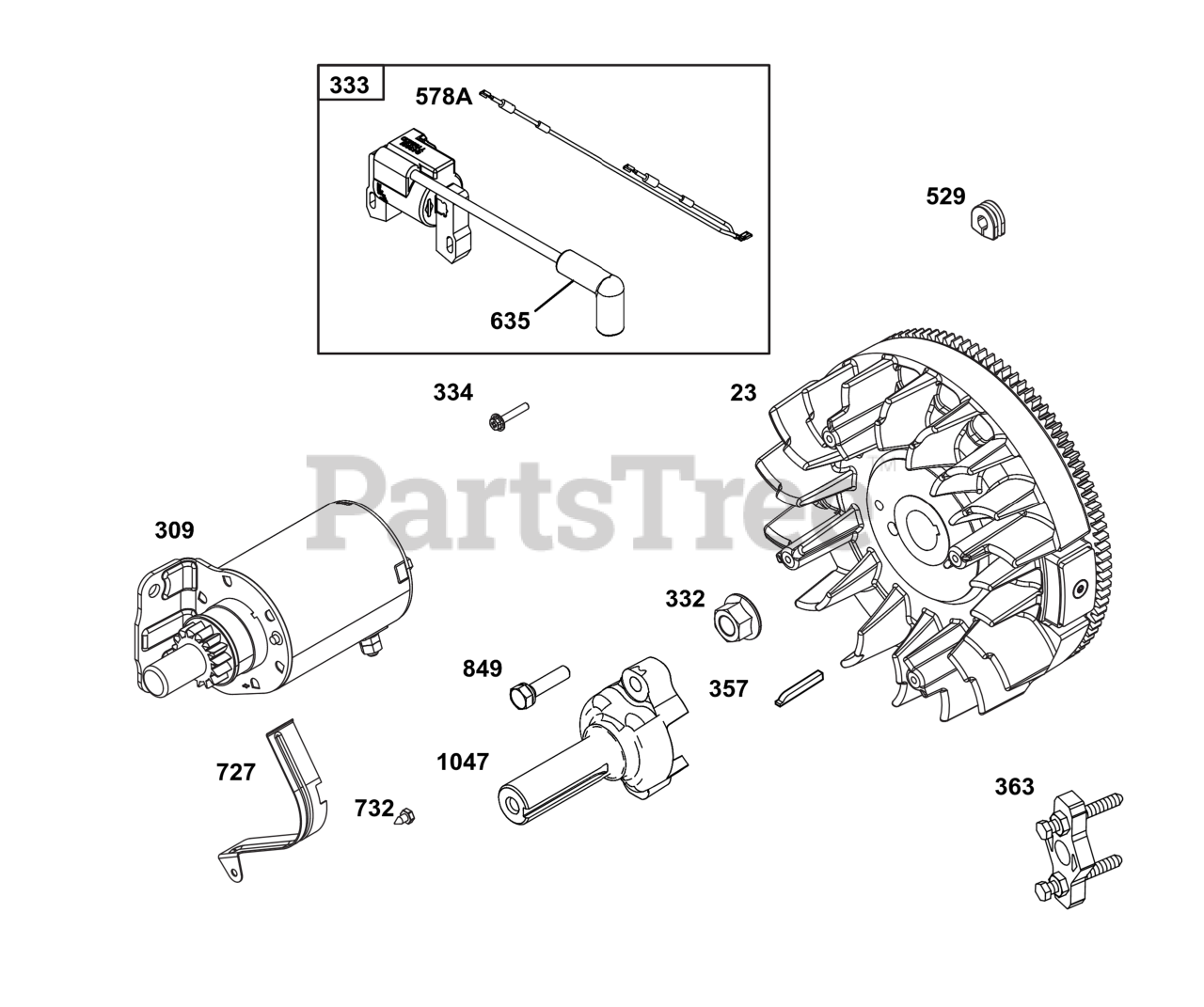

305447-0629-B5 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 842514

FLYWHEEL

$308.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 844717

MOTOR, Starter

$90.99

$

In Stock, Qty 9

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 84003819

ARMATURE-MAGNETO

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

357

Briggs & Stratton 691483

KEY, Drive Pulley

$6.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

529

GROMMET

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

578A

WIRE ASSEMBLY

Note: (Part information located in Controls Group.)

$

$

Not available

635

BOOT, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

727

Briggs & Stratton 841313

COVER-STARTER DRIVE

$16.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 690688

SCREW

Note: (Starter Drive Cover)

$3.49

$

Usually ships in 2-12 days

0

849

Briggs & Stratton 846236

SCREW

$4.99

$

Usually ships in 2-12 days

0

1047

Briggs & Stratton 844148

SHAFT, Stub

$195.99

$

Usually ships in 2-12 days

0
