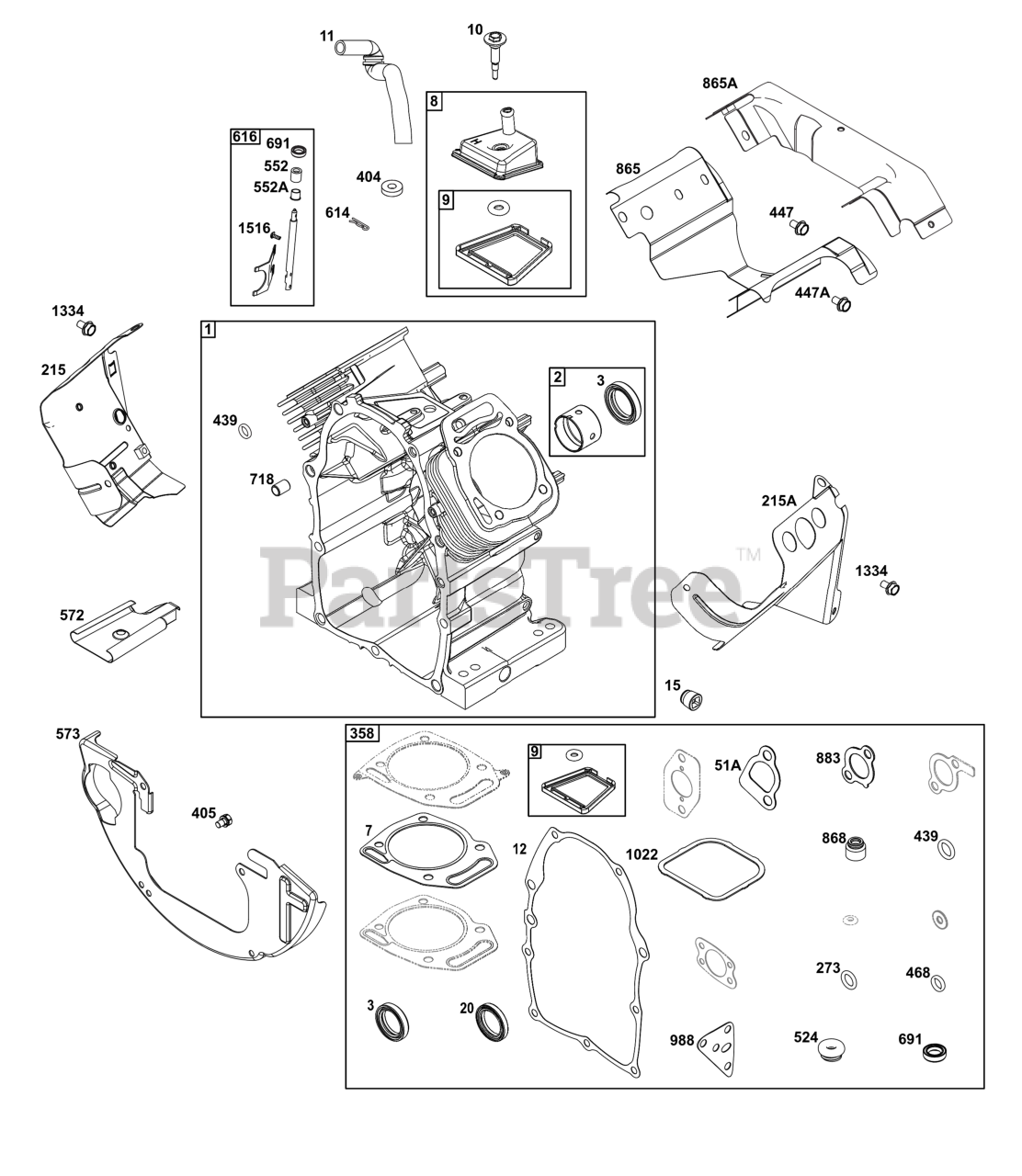

305447-0629-B5 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 84004598

CYLINDER ASSEMBLY

$557.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

KIT, Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 845659

SEAL, Oil

$13.99

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

8

Briggs & Stratton 808984

BREATHER ASSEMBLY

$53.99

$

In Stock, Qty 17

0

9

Briggs & Stratton 844986

GASKET, Breather

$8.49

$

In Stock, only 3 left!

0

10

Briggs & Stratton 690751

SCREW

Note: (Breather Assembly)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 844921

TUBE, Breather

$15.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

15

Briggs & Stratton 691680

PLUG-OIL DRAIN

$5.99

$

In Stock, only 1 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

215

Briggs & Stratton 841316

GUIDE-AIR

$43.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 841317

GUIDE-AIR

$40.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

276

WASHER, Sealing

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

358

Briggs & Stratton 808704

GASKET SET, Engine

Note: (Service Kits can include parts not for this engine.)

$131.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 690704

WASHER

Note: (Governor Crank)

$5.99

$

In Stock, only 2 left!

0

405

Briggs & Stratton 807163

SCREW

Note: (Back Plate)

$3.99

$

In Stock, only 1 left!

0

439

O-RING, Oil Gallery

Note: (Part information located in Lubrication Group.)

$

$

Not available

447

Briggs & Stratton 807084

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, only 3 left!

0

447A

Briggs & Stratton 841233

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 20+

0

468

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

552

BUSHING, Governor Crank

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

552A

BUSHING, Governor Crank

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

572

Briggs & Stratton 690686

BAFFLE-BREATHER

$14.99

$

In Stock, only 1 left!

0

573

Briggs & Stratton 841310

PLATE-BACK

$24.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

CRANK, Governor

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

691

SEAL, Governor Shaft

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

718

Briggs & Stratton 806469

PIN-LOCATING

$5.99

$

In Stock, only 2 left!

0

865

Briggs & Stratton 843768

COVER-AIR GUIDE

$39.99

$

Usually ships in 2-12 days

0

865A

Briggs & Stratton 841319

COVER-AIR GUIDE

$39.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

988

GASKET, Oil Adapter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1334

Briggs & Stratton 841233

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 20+

0

1516

SCREW

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available
