305447-0609-G1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

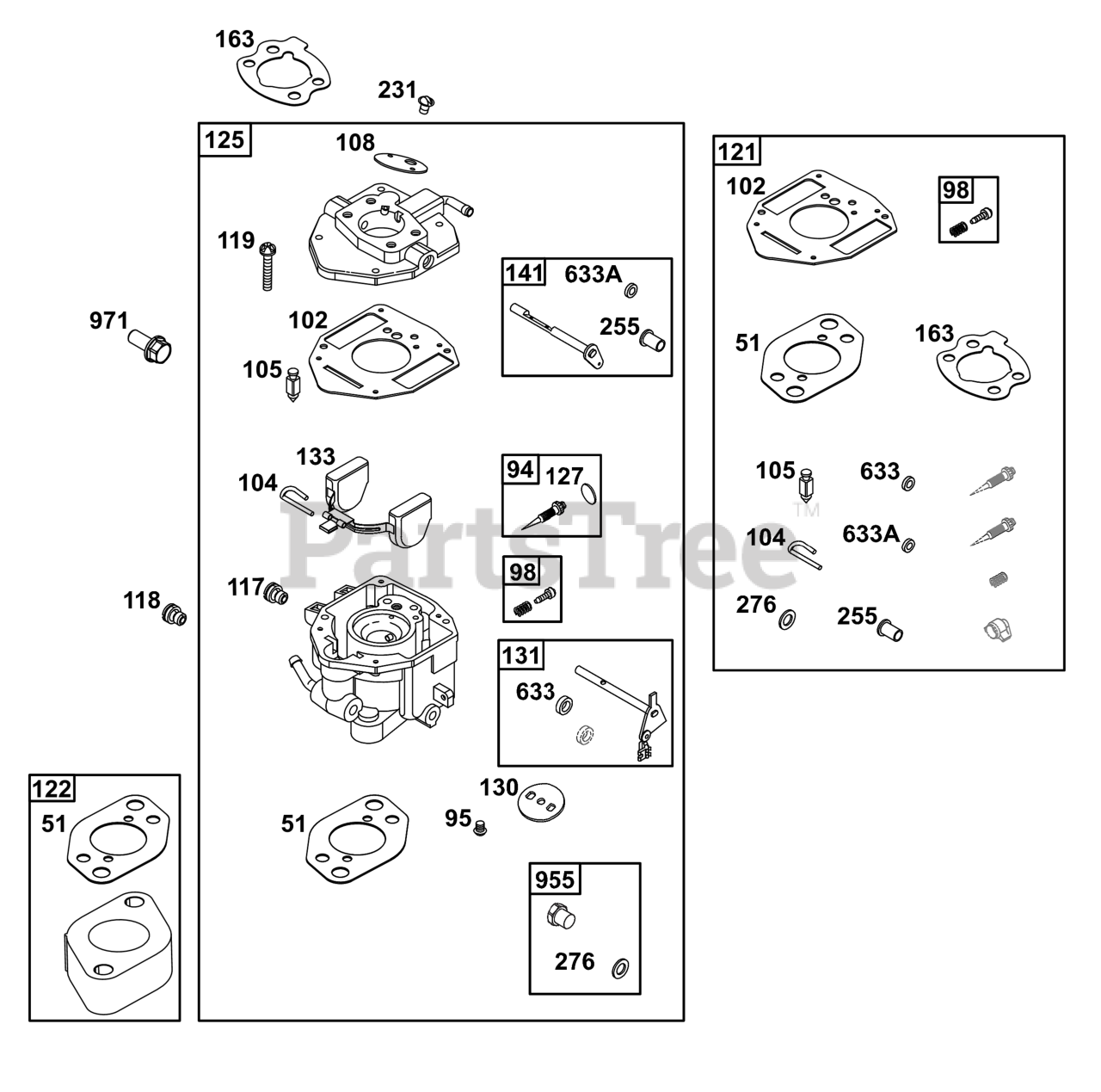

Carburetor Group Parts Diagram

  • Title
51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

94

Briggs & Stratton 847026

KIT, Idle Mixture

$16.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692077

GASKET, Carburetor Body

$25.99

$

In Stock, Qty 20+

0

104

Briggs & Stratton 690723

PIN, Float Hinge

$9.49

$

In Stock, only 3 left!

0

105

Briggs & Stratton 797410

VALVE, Float Needle

$15.99

$

In Stock, Qty 20+

0

108

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690881

JET, Main

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 844990

JET, Main

Note: (High Altitude)

$19.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 690720

SCREW

Note: (Upper Carburetor Body To Lower Carburetor Body)

$3.49

$

In Stock, only 2 left!

0

121

Briggs & Stratton 845146

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$131.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 690691

SPACER, Carburetor

$13.99

$

In Stock, only 3 left!

0

125

$358.99

$

Usually ships in 2-12 days

0

127

$5.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690726

VALVE, Throttle

$18.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 809007

KIT, Throttle Shaft

$42.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 844546

FLOAT, Carburetor

$29.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 808398

KIT, Choke Shaft

$42.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part Information Located in Air Cleaner Group.)

$

$

Not available

231

Briggs & Stratton 690711

SCREW

Note: (Choke Valve)

$6.99

$

Usually ships in 2-12 days

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 690724

WASHER, Sealing

$7.99

$

In Stock, Qty 8

0

633

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 4 left!

0

955

Briggs & Stratton 807723

PLUG, Carburetor

$6.49

$

In Stock, Qty 12

0

971

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available
