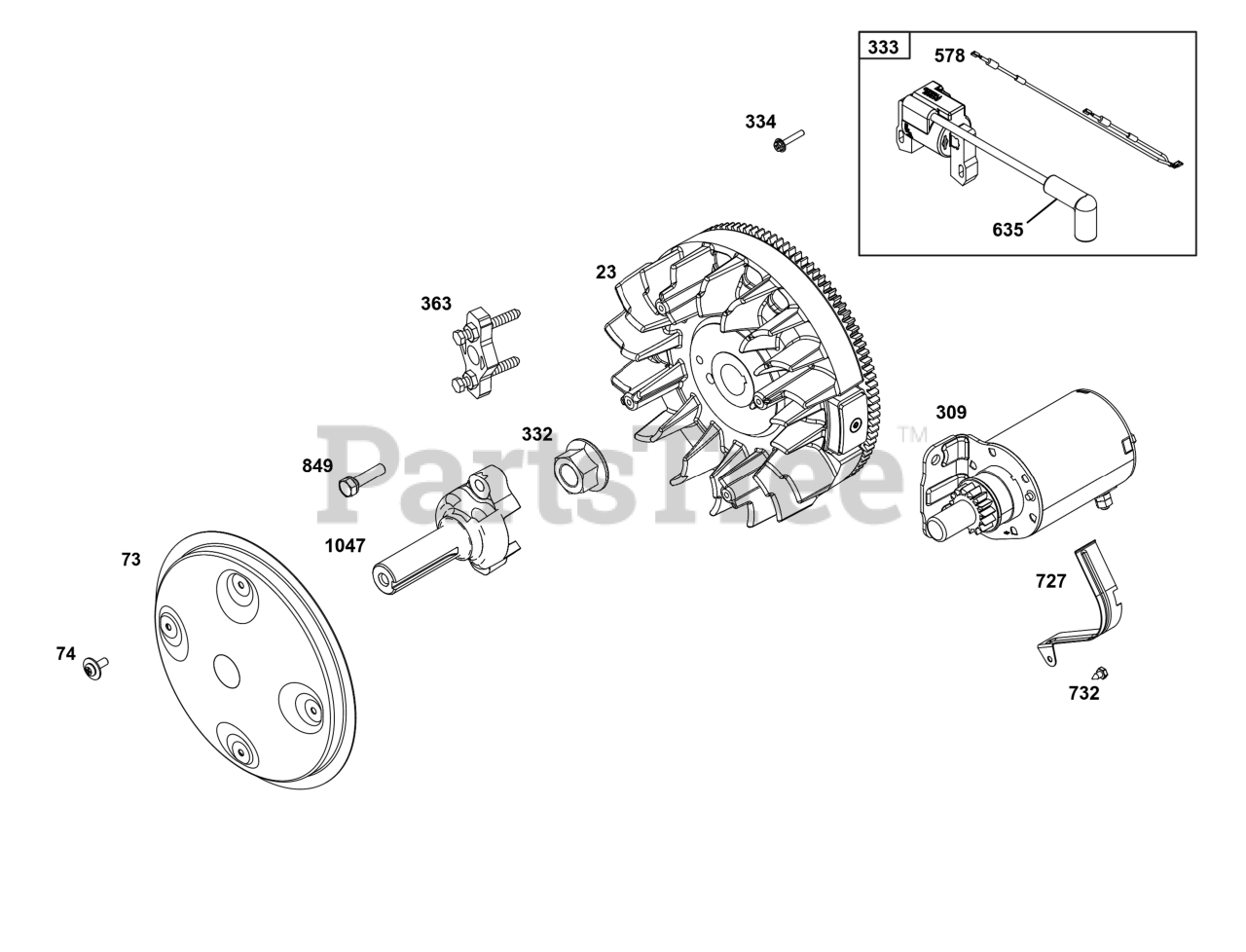

305447-0588-G1 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 842514

FLYWHEEL

$308.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841582

SCREEN, Rotating

$39.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 846451

MOTOR, Starter

$184.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

363

Briggs & Stratton 19203

PULLER, Flywheel

Note: (71.5mm (2.81in.))

$23.99

$

In Stock, only 1 left!

0

727

Briggs & Stratton 841313

COVER, Starter Drive

$16.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 690688

SCREW

$3.49

$

Usually ships in 2-12 days

0

849

Briggs & Stratton 846236

SCREW

$4.99

$

Usually ships in 2-12 days

0

1047

Briggs & Stratton 844148

SHAFT, Stub

$195.99

$

Usually ships in 2-12 days

0
