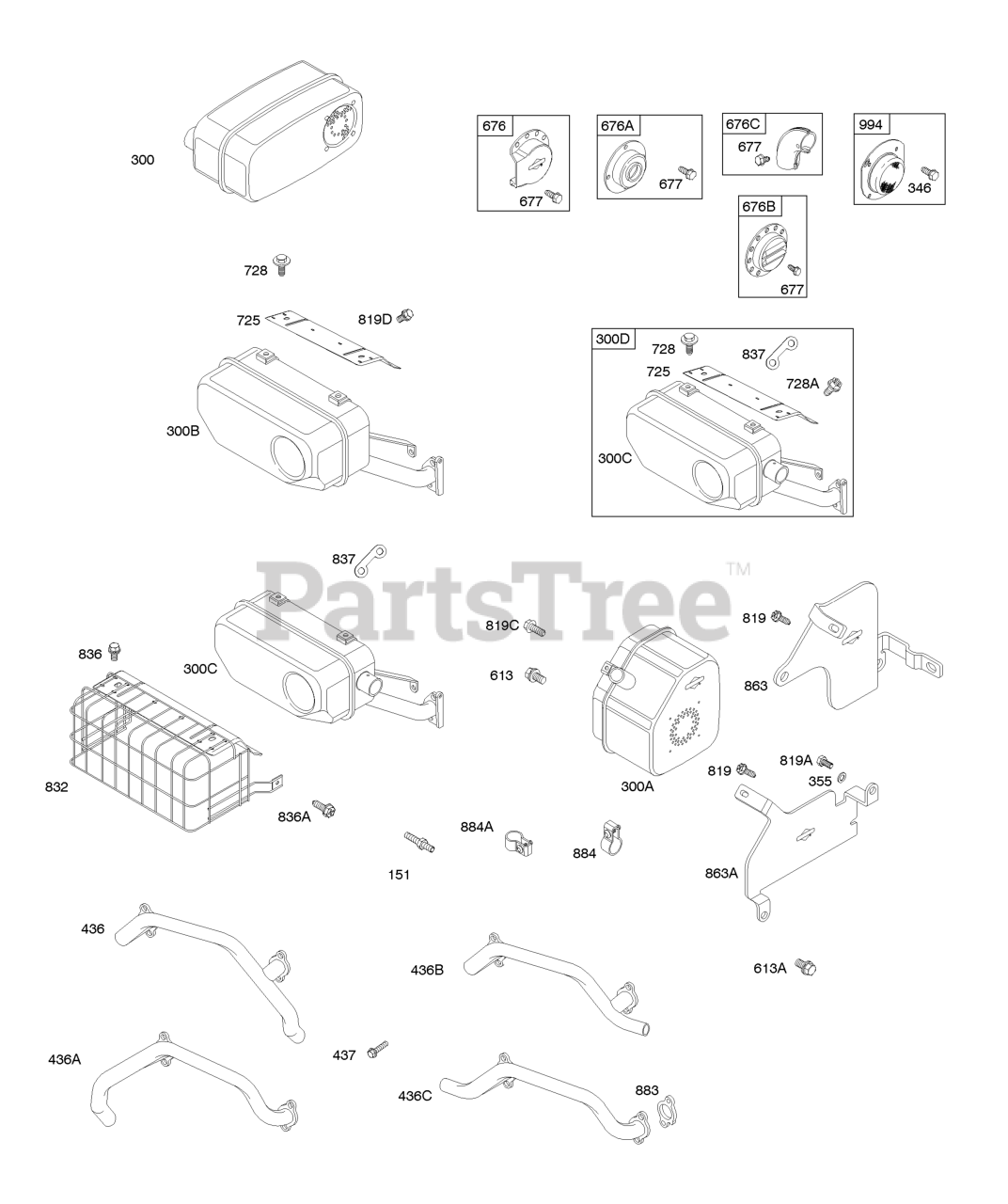

305447-0293-G1 - Briggs & Stratton Horizontal Engine Exhaust Systems Parts Diagram

Horizontal Engine

Exhaust Systems Parts Diagram

  • Title
151

Briggs & Stratton 841185

Stud
(Superseded to 84006950)

Note: (Exhaust Manifold)

$6.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 690661

SCREW

Note: (Spark Arrestor) (#8-18 x 0.375 lg)

$3.49

$

In Stock, Qty 9

0

355

Briggs & Stratton 690944

Washer

Note: (Muffler Bracket)

$5.99

$

Usually ships in 2-12 days

0

436

Briggs & Stratton 692061

Manifold-Exhaust

$149.99

$

Usually ships in 2-12 days

0

436A

Briggs & Stratton 691499

Manifold-Exhaust

$152.99

$

Usually ships in 2-12 days

0

436B

Briggs & Stratton 691501

Manifold-Exhaust

$128.99

$

Usually ships in 2-12 days

0

436C

Briggs & Stratton 691502

Manifold-Exhaust

$128.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 691902

Screw

Note: (Exhaust Manifold) (M8x20mm)

$3.49

$

In Stock, Qty 8

0

613

Briggs & Stratton 691902

Screw

Note: (Muffler)

$3.49

$

In Stock, Qty 8

0

613A

Briggs & Stratton 692067

SCREW

Note: (Muffler)

$3.99

$

In Stock, Qty 9

0

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, only 1 left!

0

676A

Briggs & Stratton 396903

DEFLECTOR, Muffler

$14.99

$

Usually ships in 2-12 days

0

676C

Briggs & Stratton 495518

Deflector-Muffler

$22.99

$

In Stock, only 1 left!

0

676B

Briggs & Stratton 795038

Deflector-Muffler

$15.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector) (#8-18 x 0.375 lg)

$3.49

$

In Stock, Qty 9

0

725

$46.99

$

Usually ships in 2-12 days

0

728

Briggs & Stratton 691514

Screw

Note: (Heat Shield)

$4.99

$

Usually ships in 2-12 days

0

728A

Briggs & Stratton 692067

SCREW

Note: (Heat Shield)

$3.99

$

In Stock, Qty 9

0

819

Briggs & Stratton 692056

Screw

Note: (Muffler Bracket)

$5.99

$

In Stock, Qty 5

0

819A

Briggs & Stratton 690943

Screw

Note: (Muffler Bracket)

$3.49

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 691571

Guard-Muffler

$103.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 691514

Screw

Note: (Muffler Guard)

$4.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 692067

SCREW

Note: (Muffler Guard)

$3.99

$

In Stock, Qty 9

0

837

Briggs & Stratton 808085

Spacer-Muffler

$18.99

$

Usually ships in 2-12 days

0

863

Briggs & Stratton 691513

Bracket-Muffler

$55.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

Usually ships in 2-12 days

0

884

Briggs & Stratton 690898

Clamp-Muffler

$14.99

$

Usually ships in 2-12 days

0

994

Briggs & Stratton 794945

ARRESTOR, Spark

$53.99

$

Usually ships in 2-12 days

0
