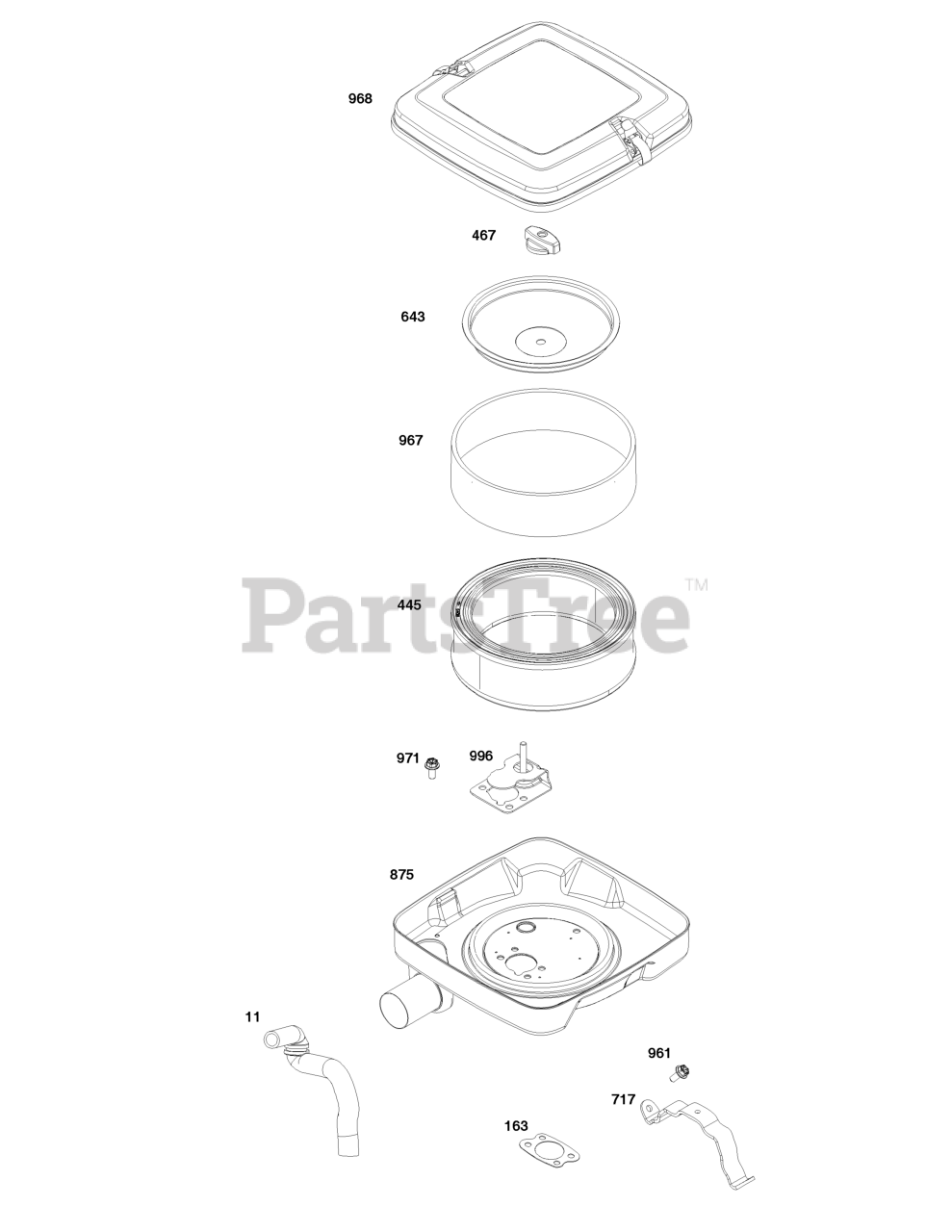

305447-0150-B5 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 844921

TUBE, Breather

$15.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

445

Briggs & Stratton 394018S

FILTER, A/C Cartridge

$25.99

$

In Stock, Qty 12

0

467

Briggs & Stratton 846431

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 9

0

643

Briggs & Stratton 844932

RETAINER, Air Filter

$22.99

$

In Stock, Qty 7

0

717

Briggs & Stratton 692153

BRACKET, Air Cleaner

$9.49

$

In Stock, only 1 left!

0

875

Briggs & Stratton 844994

BASE, Air Cleaner

$111.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 841233

SCREW

Note: BRACKET, Air Cleaner

$3.49

$

In Stock, Qty 20+

0

967

Briggs & Stratton 272490S

FILTER, Pre Cleaner

$5.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 699959

COVER, Air Cleaner

$59.99

$

In Stock, only 4 left!

0

971

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body) (M6x14mm)

$3.49

$

In Stock, only 3 left!

0

996

Briggs & Stratton 844930

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0
