305447-0088-B5 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

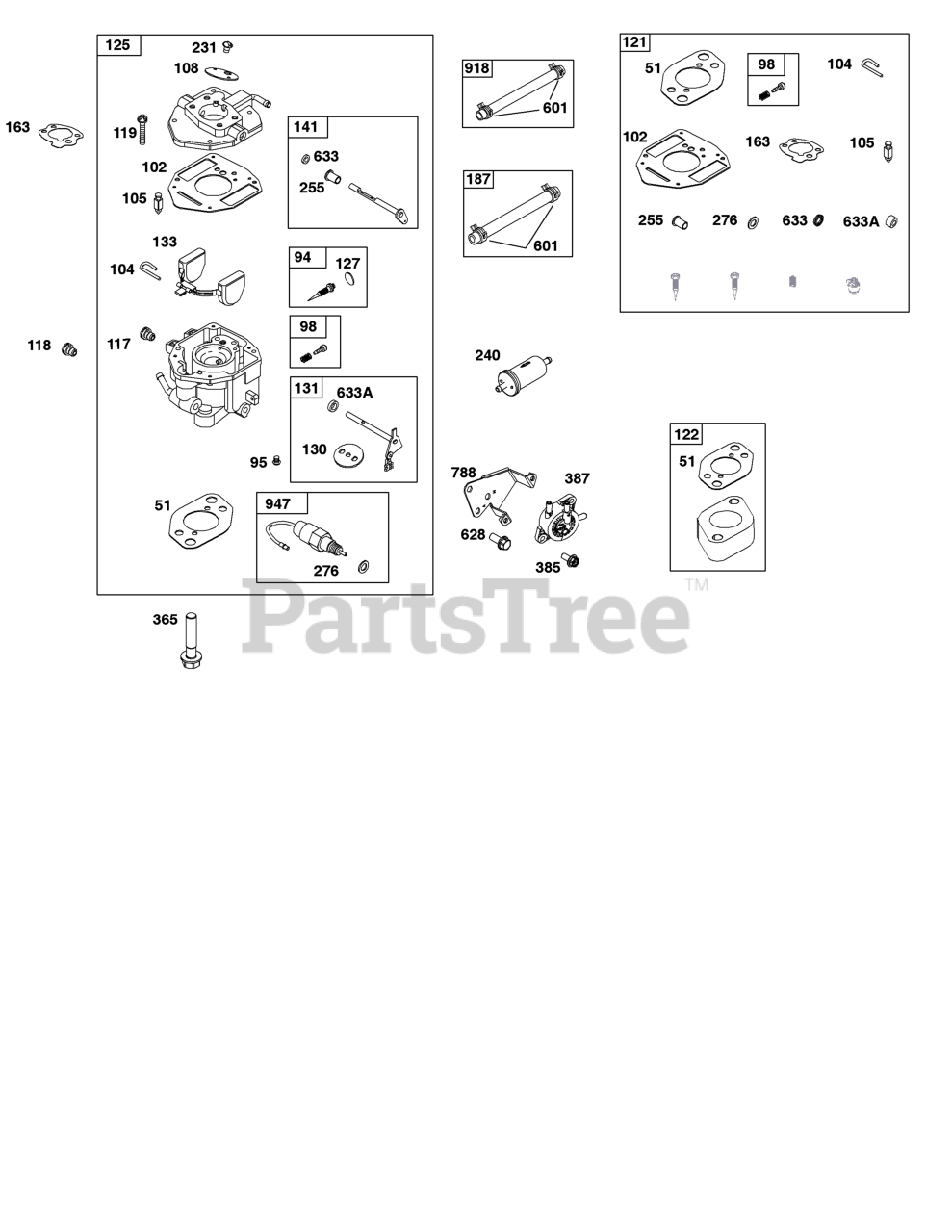

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

Briggs & Stratton 691694

GASKET, Intake

$2.99

$

In Stock, Qty 20+

0

94

Briggs & Stratton 847026

KIT, Idle Mixture

$16.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692077

GASKET, Carburetor Body

$25.99

$

In Stock, Qty 20+

0

104

Briggs & Stratton 690723

PIN, Float Hinge

$9.49

$

In Stock, only 3 left!

0

105

Briggs & Stratton 797410

VALVE, Float Needle

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 844989

VALVE, Choke

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690881

JET, Main

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 844990

JET, Main

Note: (High Altitude) (5000 Feet)

$19.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 690720

SCREW

Note: (Upper Carburetor Body to Lower Carburetor Body)

$3.49

$

In Stock, only 2 left!

0

121

Briggs & Stratton 845146

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$131.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 690691

SPACER, Carburetor

$13.99

$

In Stock, only 3 left!

0

125

Briggs & Stratton 844991

CARBURETOR

$371.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 847028

PLUG, Welch

$5.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690726

VALVE, Throttle

$18.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 809007

KIT, Throttle Shaft

$42.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 844546

FLOAT, Carburetor

$29.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 808398

KIT, Choke Shaft

$42.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 844931

GASKET, Air Cleaner

$5.49

$

In Stock, Qty 15

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Straight) (15 Inches Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.49

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 806137

WASHER, Sealing

$6.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 690711

SCREW

Note: (Carburetor/Throttle Body)

$6.99

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 16

0

628

Briggs & Stratton 692062

SCREW

$3.49

$

In Stock, Qty 14

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 4 left!

0

633A

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$24.99

$

In Stock, only 1 left!

0

918

Briggs & Stratton 791880

LINE, Fuel

Note: (6.35mm(0.25) ID x 60mm(2.36") Lg) (Straight)(Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 692094

SOLENOID, Fuel

$166.99

$

In Stock, only 4 left!
