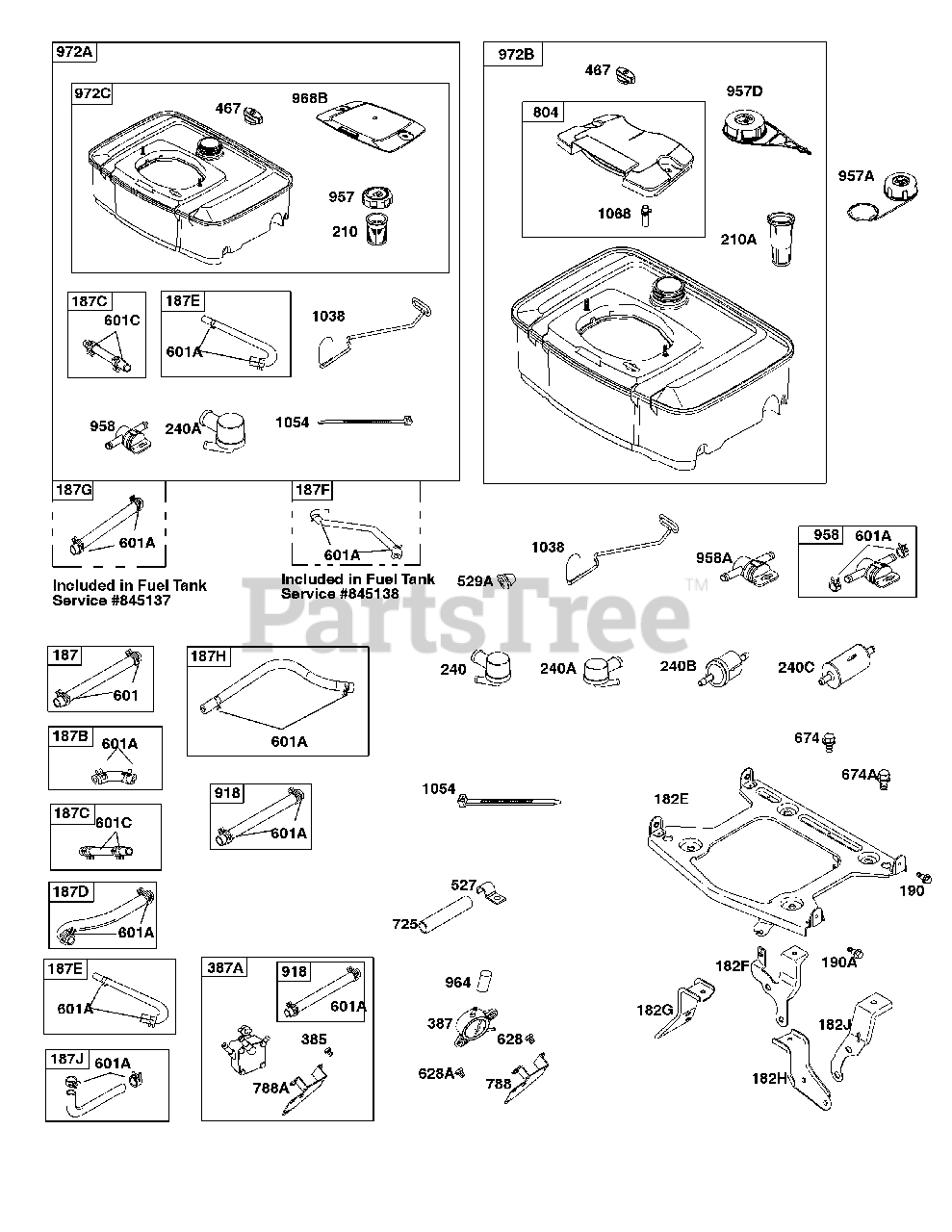

305446-0019-H1 - Briggs & Stratton Horizontal Engine Fuel Supply Parts Diagram

Horizontal Engine

Fuel Supply Parts Diagram

  • Title

182E

Briggs & Stratton 846591

Bracket-Fuel Tank

$120.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

Note: (23" Long) (Cut to Required Length)

$10.99

$

In Stock, Qty 20+

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15 Inches Long)(Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 846567

Line-Fuel

Note: (Formed)(Cut To Required Length)

$9.99

$

Usually ships in 2-12 days

0

187C

Briggs & Stratton 692106

Line-Fuel

$13.99

$

Usually ships in 2-12 days

0

187J

Briggs & Stratton 692107

Line-Fuel

Note: (Formed Hose)

$13.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

187G

Briggs & Stratton 844557

Line-Fuel

$23.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 692056

Screw

Note: (Fuel Tank) (M8x14mm)

$5.99

$

In Stock, Qty 20+

0

190A

Briggs & Stratton 692199

Screw

Note: (Fuel Tank)

$3.49

$

In Stock, only 3 left!

0

240C

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 846431

Knob-Air Cleaner Cover

Note: Used After Code Date 10033100

$7.99

$

In Stock, Qty 9

0

467

Briggs & Stratton 691985

KNOB, Air Cleaner Cover

Note: Used Before Code Date 10040100

$7.99

$

In Stock, Qty 8

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

529A

Briggs & Stratton 691527

Grommet

$7.49

$

In Stock, only 2 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 16

0

601C

Briggs & Stratton 691522

Clamp-Hose

Note: (Black)

$3.99

$

Usually ships in 2-12 days

0

628

Briggs & Stratton 806660

Screw

Note: (Fuel Pump Bracket) (M8x18mm)

$3.99

$

In Stock, only 1 left!

0

628A

Briggs & Stratton 692062

Screw

Note: (Fuel Pump Bracket)

$3.49

$

In Stock, Qty 14

0

674

Briggs & Stratton 692062

Screw

Note: (Fuel Tank Bracket) (M8x18mm)

$3.49

$

In Stock, Qty 14

0

674A

Briggs & Stratton 692056

Screw

Note: (Fuel Tank Bracket)

$5.99

$

In Stock, Qty 20+

0

725

Briggs & Stratton 691498

Shield-Heat

$46.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

918

Briggs & Stratton 791880

Hose-Vacuum

$11.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 795027

Cap-Fuel Tank

$10.99

$

In Stock, Qty 20+

0

957

Briggs & Stratton 846987

Cap-Fuel Tank

$21.99

$

In Stock, only 4 left!

0

957D

Briggs & Stratton 847578

Cap-Fuel Tank

Note: (Tethered Cap)

$28.99

$

In Stock, only 2 left!

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

$8.49

$

In Stock, Qty 20+

0

968B

Briggs & Stratton 844559

Cover-Air Cleaner

$61.99

$

Usually ships in 2-12 days

0

972C

Briggs & Stratton 844561

Tank-Fuel

$372.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days
