305440-0587-G1 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

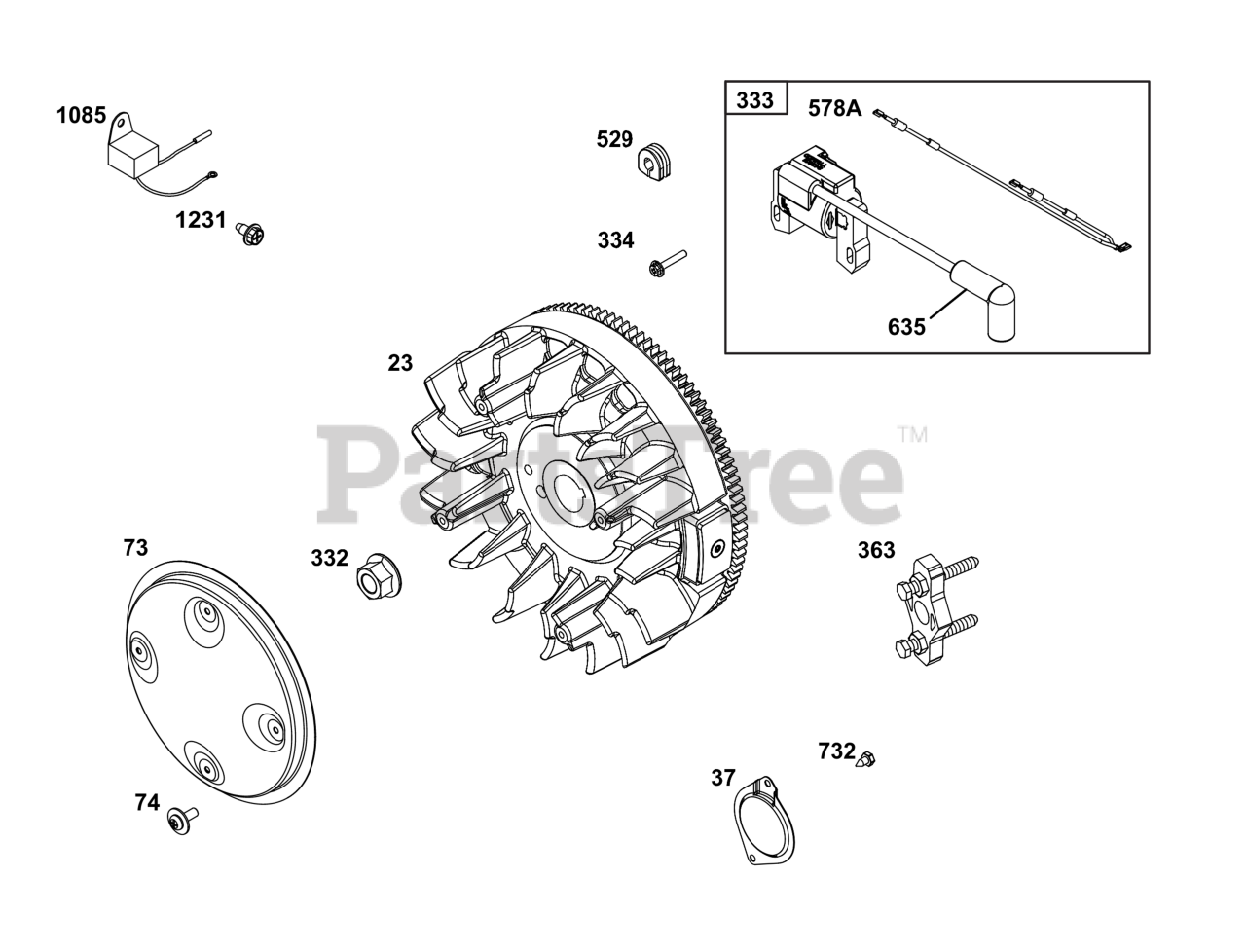

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 842683

FLYWHEEL

$305.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 841309

GUARD, Flywheel

$7.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

SCREEN, Rotating

$37.99

$

In Stock, only 2 left!

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

529

GROMMET

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

578A

WIRE ASSEMBLY

Note: (Part information located in Controls Group.)

$

$

Not available

732

Briggs & Stratton 690688

SCREW

Note: (Starter Drive Cover)

$3.49

$

Usually ships in 2-12 days

0

1085

Briggs & Stratton 809093

MODULE, Ignition

$88.99

$

In Stock, Qty 6

0

1231

Briggs & Stratton 692067

SCREW

Note: (Ignition Module)

$3.99

$

In Stock, Qty 11

0
