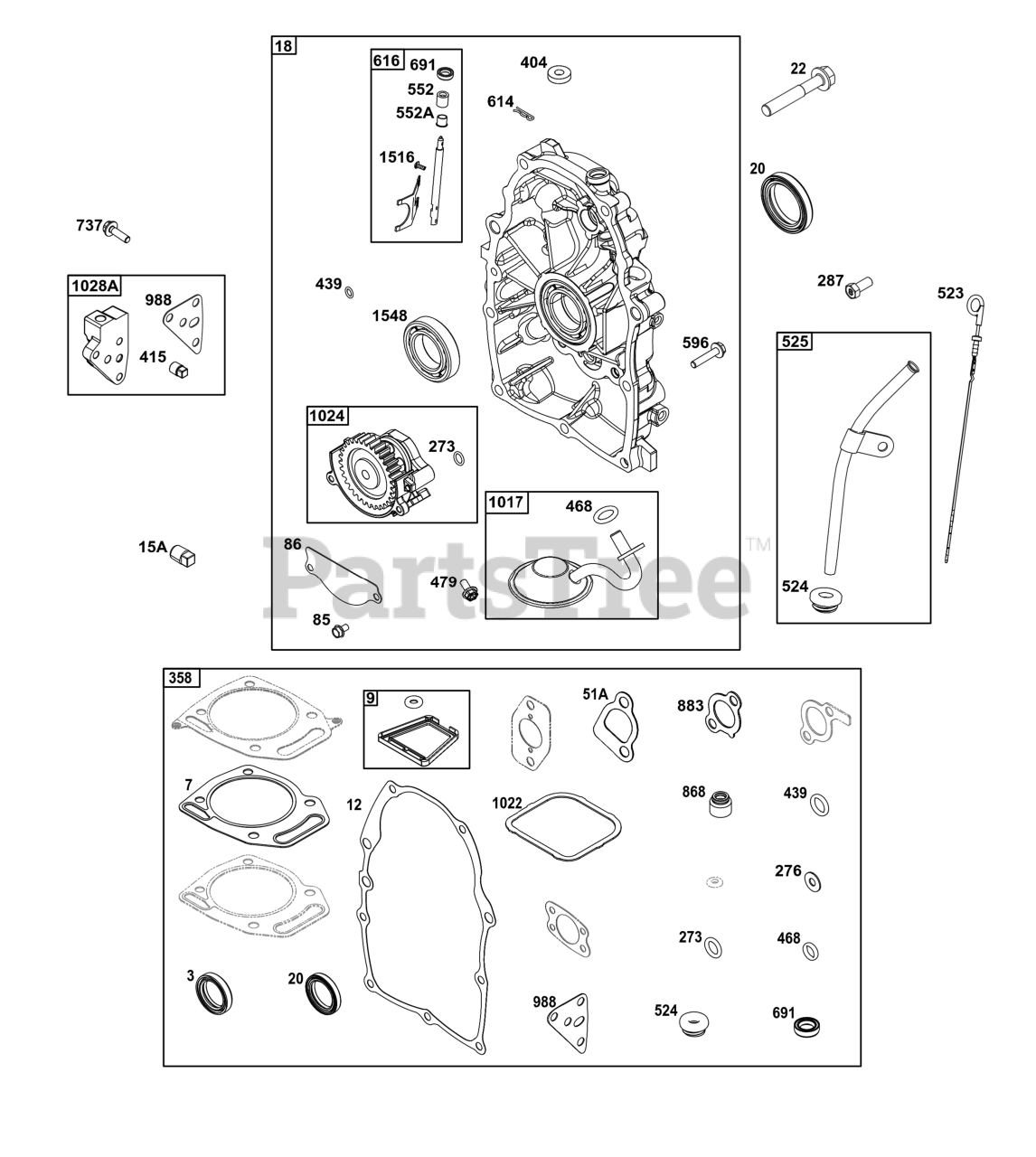

305440-0587-G1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

9

GASKET, Breather

Note: (Part information located in Cylinder Group.)

$

$

Not available

12

Briggs & Stratton 846487

GASKET, Crankcase

$41.99

$

In Stock, Qty 20+

0

15A

PLUG, Oil Drain

Note: (Part information located in Lubrication Group.)

$

$

Not available

18

Briggs & Stratton 84002116

COVER, Crankcase

$252.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

85

Briggs & Stratton 841233

SCREW

Note: (Gear Cover)

$3.49

$

In Stock, Qty 20+

0

86

Briggs & Stratton 690745

COVER, Gear

$6.49

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

276

WASHER, Sealing

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

287

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

404

WASHER

Note: (Part information located in Cylinder Group.)

$

$

Not available

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

439

O-RING, Oil Gallery

Note: (Part information located in Lubrication Group.)

$

$

Not available

468

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

479

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

523

DIPSTICK

Note: (Part information located in Lubrication Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

525

TUBE, Dipstick

Note: (Part information located in Lubrication Group.)

$

$

Not available

552

Briggs & Stratton 690701

BUSHING, Governor Crank

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 806686

BUSHING, Governor Crank

$8.49

$

Usually ships in 2-12 days

0

596

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

614

PIN, Cotter

Note: (Part information located in Cylinder Group.)

$

$

Not available

616

Briggs & Stratton 806685

CRANK, Governor

$30.99

$

In Stock, only 1 left!

0

616

Briggs & Stratton 806685

CRANK, Governor

$30.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 842826

SEAL, Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

737

Briggs & Stratton 84006523

SCREW

Note: (Oil Filter Adapter)

$3.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

988

GASKET, Oil Adapter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1017

SCREEN, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available

1028A

ADAPTER, Oil Filter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1516

Briggs & Stratton 846459

SCREW

Note: (Governor Crank)

$3.49

$

Usually ships in 2-12 days

0

1548

Briggs & Stratton 843827

BEARING, Ball

Note: (Crankcase Cover/Sump)

$36.99

$

In Stock, only 3 left!

0
