30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 230000001 - 230999999) (2003) Deck and Spindle Assembly Parts Diagram

44" Mower Deck for Groundsmaster 120

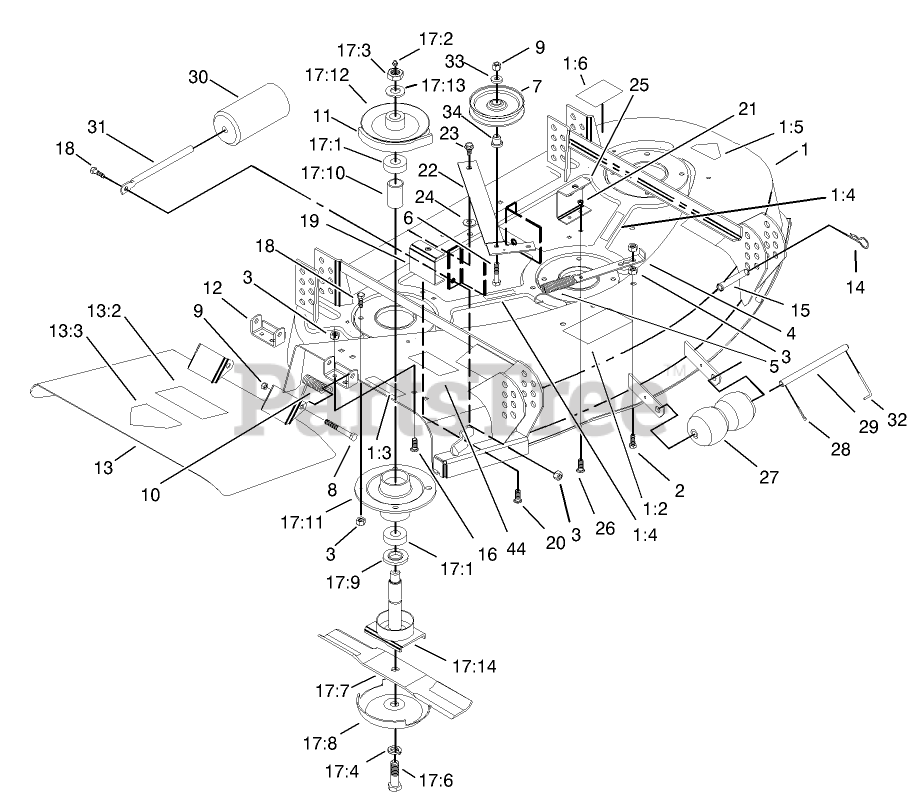

Deck and Spindle Assembly Parts Diagram

  • Title

1

Toro 94-6024

DISCONTINUED

$

$

Not available

1:2

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

1:3

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

1:4

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

1:5

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:6

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

4

Toro 54-1180-01

ANCHOR-SPRING, DECK

$20.99

$

Usually ships in 3-6 days

0

5

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

6

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

7

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

8

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

9

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

10

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

11

Toro 54-1370

V-BELT-DECK

$134.99

$

Usually ships in 3-6 days

0

12

Toro 29-5590-01

BRACKET-PIVOT

$35.99

$

Usually ships in 3-6 days

0

13

Toro 98-5049

DEFLECTOR ASM

$

$

Not available

13:2

Toro 93-7317

DECAL-DANGER

$

$

Not available

13:3

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

14

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

15

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

16

Toro 3230-20

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

17

Toro 13-1899

OUTER SPINDLE ASM

$

$

Not available

17:1

Toro 251-257

BEARING-BALL

$15.99

$

In Stock, Qty 11

0

17:2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

17:3

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

17:4

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17:6

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

17:7

Toro 54-0010

See Supercession: 54-0010-03
(Superseded to 54-0010-03)

$33.99

$

In Stock, only 3 left!

0

17:8

Toro 67-7561

CUP-SCALP, ANTI

$43.99

$

In Stock, only 2 left!

0

17:9

Toro 67-7570

SPACER-SPINDLE

$12.99

$

In Stock, only 2 left!

0

17:10

Toro 67-7580

SPACER-BEARING

$

$

Not available

17:11

Toro 67-7590

HOUSING-SPINDLE

$331.99

$

Usually ships in 3-6 days

0

17:12

Toro 67-7690

PULLEY-DECK

$90.99

$

Usually ships in 3-6 days

0

17:14

Toro 71-2780

See Supercession: 71-2780-03
(Superseded to 71-2780-03)

$333.99

$

Usually ships in 3-6 days

0

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 55-7050-03

BRACKET-COVER, RH ASM

$

$

Not available

20

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

22

Toro 55-7430-01

LEVER-DECK ASM

$95.99

$

Usually ships in 3-6 days

0

23

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

24

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

25

Toro 55-7060-03

BRACKET-COVER, LH ASM

$

$

Not available

26

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

27

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

28

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

29

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

30

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

31

Toro 62-4480

ROD-ROLLER

$19.99

$

Usually ships in 3-6 days

0

32

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

33

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

34

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0
