30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 210000001 - 210999999) (2001) Carrier Frame Assembly Parts Diagram

44" Mower Deck for Groundsmaster 120

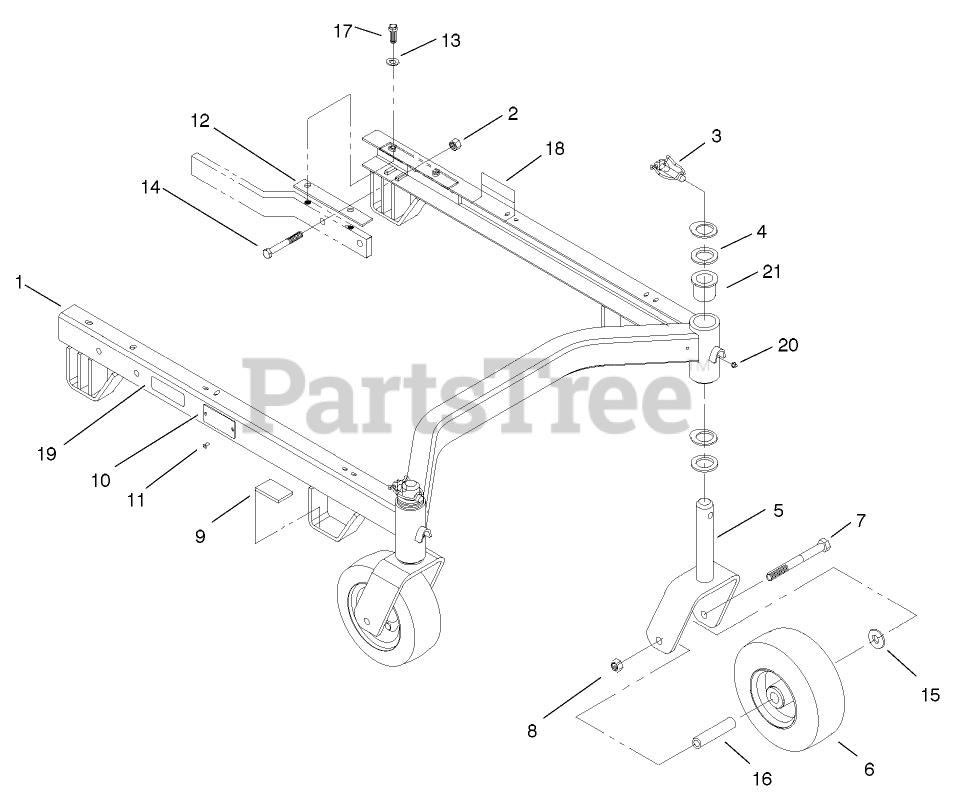

Carrier Frame Assembly Parts Diagram

  • Title

1

Toro 17-0509-01

SUSPENSION ASM, GM120

$1521.99

$

Usually ships in 3-6 days

0

2

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

3

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

4

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

5

Toro 98-2858-01

FORK-CASTER, FRONT

$

$

Not available

6

Toro 98-2859

CASTOR WHEEL ASM

$143.99

$

Usually ships in 3-6 days

0

6:1

Toro 98-2877

TIRE-TUBELESS

Note: Not illustrated

$

$

Not available

6:2

Toro 100-2348

RIM ASM

Note: Not illustrated

$59.99

$

Usually ships in 3-6 days

0

6:3

Toro 62-5580

BEARING-OUTSIDE

Note: Not illustrated

$7.49

$

In Stock, only 2 left!

0

6:4

Toro 62-5570

BEARING-ROLLER

Note: Not illustrated

$20.99

$

In Stock, only 2 left!

0

6:5

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

Note: Not illustrated

$6.99

$

In Stock, Qty 16

0

6:6

Toro 302-11

FITTING-LUBE, 45 DEG

Note: Not illustrated

$1.99

$

In Stock, only 2 left!

0

7

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

8

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

9

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

11

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

12

Toro 62-6980

SHIM-CARRIER

$

$

Not available

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

17

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

18

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

19

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

20

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

21

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0
