30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 039000001 - 039999999) (1993) Carrier Frame Assembly Parts Diagram

44" Mower Deck for Groundsmaster 120

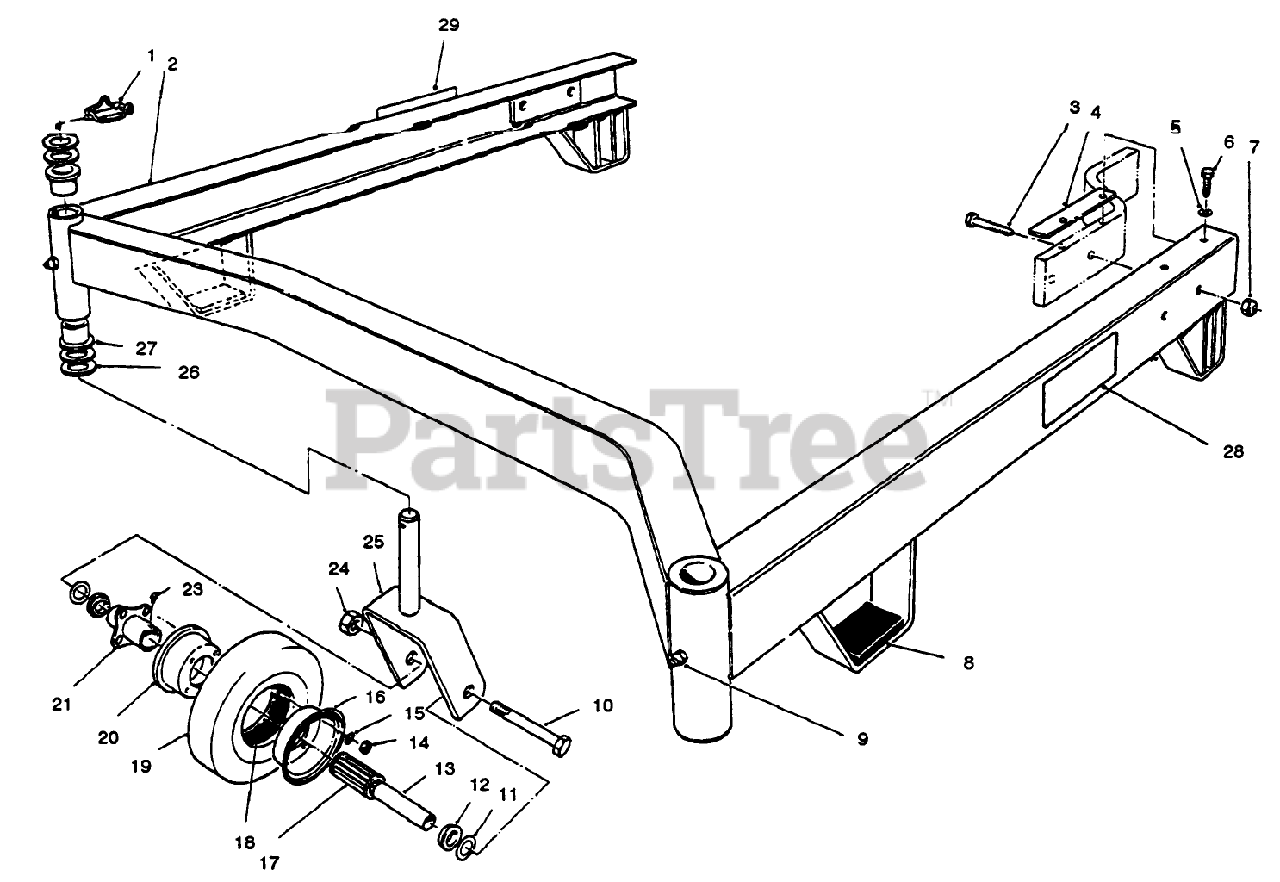

Carrier Frame Assembly Parts Diagram

  • Title
1

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

2

Toro 54-0800

See Supercession: 94-5830
(Superseded to 94-5830)

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 62-6980

SHIM-CARRIER

$

$

Not available

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3235-21

SCREW W/PATCH

$

$

Not available

7

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

8

Toro 74-0340

CUSHION-RUBBER

$4.99

$

Usually ships in 3-6 days

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

10

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

11

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, Qty 12

0

13

Toro 68-8980

SPANNER-TIRE

$10.99

$

In Stock, Qty 12

0

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

15

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

16

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

17

Toro 62-5570

BEARING-ROLLER

$20.99

$

In Stock, only 2 left!

0

18

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

19

$64.99

$

In Stock, only 1 left!

0

20

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

21

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

23

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

24

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

25

Toro 68-8900

See Supercession: 68-8900-01
(Superseded to 68-8900-01)

$119.99

$

Usually ships in 3-6 days

0

26

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

27

Toro 28-9290

See Supercession: 94-1291
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

28

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

29

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

Toro 13-3869

See Supercession: 68-8970
(Superseded to 68-8970)

Note: Not illustrated

$127.99

$

Usually ships in 3-6 days

0
