30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 008000001 - 008999999) (1988) Grass Collection System Model No. 30751 (optional) Parts Diagram

44" Mower Deck for Groundsmaster 120

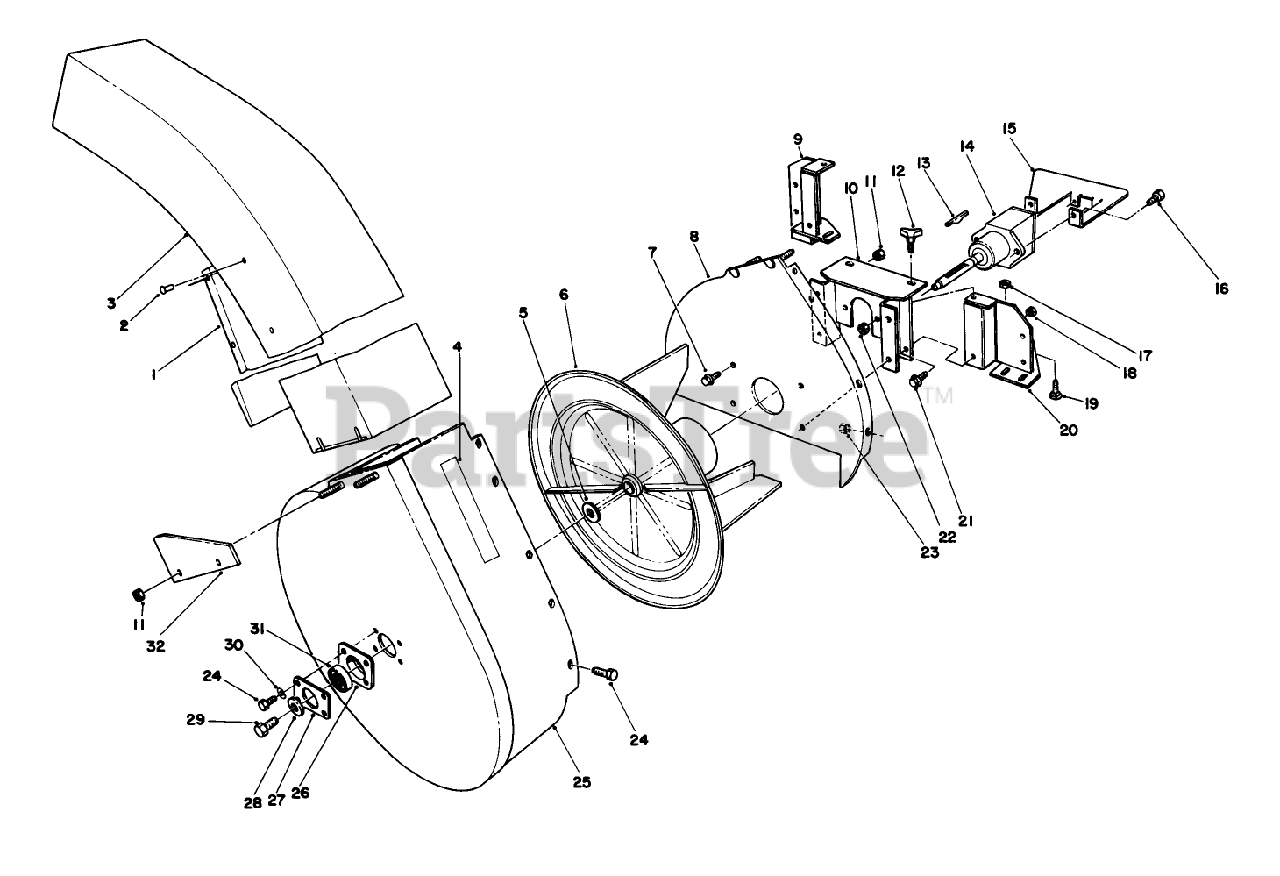

Grass Collection System Model No. 30751 (optional) Parts Diagram

  • Title
1

Toro 56-4630

See Supercession: 56-4630-03
(Superseded to 56-4630-03)

$

$

Not available

2

$0.99

$

Usually ships in 3-6 days

0

3

Toro 56-5220

CHUTE ASM

$

$

Not available

4

Toro 43-1110

See Supercession: 82-5510
(Superseded to 82-5510)

$8.49

$

Usually ships in 3-6 days

0

5

Toro 63-9710

SPACER-BEARING

$13.99

$

In Stock, only 1 left!

0

6

Toro 56-4780

See Supercession: 56-4780-03
(Superseded to 56-4780-03)

$1068.99

$

Usually ships in 3-6 days

0

7

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

8

Toro 56-4760

See Supercession: 56-4760-03
(Superseded to 56-4760-03)

$

$

Not available

9

Toro 62-4360

L/H BLOWER MT/NUT ASM

$

$

Not available

10

Toro 62-4430

See Supercession: 62-4430-03
(Superseded to 62-4430-03)

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

$8.49

$

In Stock, only 1 left!

0

13

$9.49

$

In Stock, only 1 left!

0

14

Toro 53-4530

See Supercession: 53-4530-03
(Superseded to 53-4530-03)

$1965.99

$

Usually ships in 3-6 days

0

15

Toro 56-5260

See Supercession: 56-5260-03
(Superseded to 56-5260-03)

$

$

Not available

16

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

18

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

19

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

20

Toro 56-5040

RH BLWR MT BRKT WA

$

$

Not available

21

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

22

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 63-9540

See Supercession: 13-0269
(Superseded to 13-0269)

$707.99

$

Usually ships in 3-6 days

0

26

Toro 37-6730

CUP-BEARING

$17.99

$

In Stock, only 2 left!

0

27

Toro 63-9700

See Supercession: 63-9700-03
(Superseded to 63-9700-03)

$21.99

$

In Stock, only 3 left!

0

28

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

29

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

30

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

31

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

32

Toro 43-0960

See Supercession: 43-0960-03
(Superseded to 43-0960-03)

$21.99

$

Usually ships in 3-6 days

0
