30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 008000001 - 008999999) (1988) Cutting Unit Model No. 30753 Parts Diagram

44" Mower Deck for Groundsmaster 120

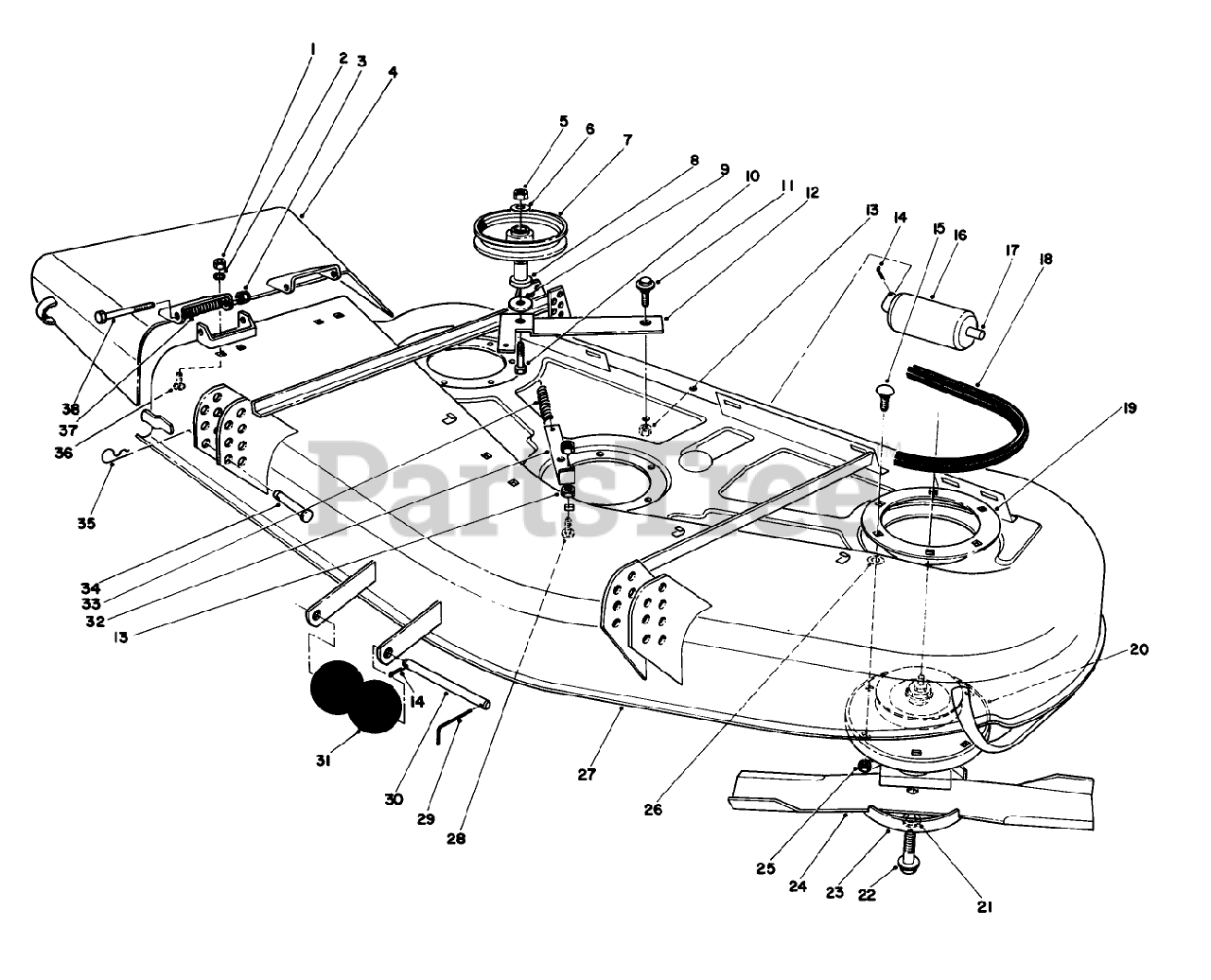

Cutting Unit Model No. 30753 Parts Diagram

  • Title
1

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

2

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

3

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

4

Toro 40-6200

See Supercession: 13-3949
(Superseded to 13-3949)

$

$

Not available

5

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

6

Toro 31-3220

DISCONTINUED

$

$

Not available

7

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

8

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

9

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

10

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

12

Toro 56-5520

See Supercession: 56-5520-01
(Superseded to 56-5520-01)

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

15

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

17

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

18

Toro 56-5560

V-BELT, DECK

$131.99

$

Usually ships in 3-6 days

0

19

Toro 27-7680

See Supercession: 27-7680-03
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

20

Toro 27-0871

DISCONTINUED

$

$

Not available

21

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

22

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

23

Toro 27-1000

See Supercession: 72-9361
(Superseded to 72-9361)

$42.99

$

Usually ships in 3-6 days

0

24

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

27

Toro 12-1659

DISCONTINUED
(Superseded to 94-6025)

$

$

Not available

28

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

29

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

30

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

31

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

32

Toro 56-5540

See Supercession: 56-5540-01
(Superseded to 56-5540-01)

$

$

Not available

33

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

34

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

35

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

36

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

37

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

38

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0
