30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 008000001 - 008999999) (1988) Carburetor Kohler Engine Model No. Kt1 7qs Type No. 24324 Parts Diagram

44" Mower Deck for Groundsmaster 120

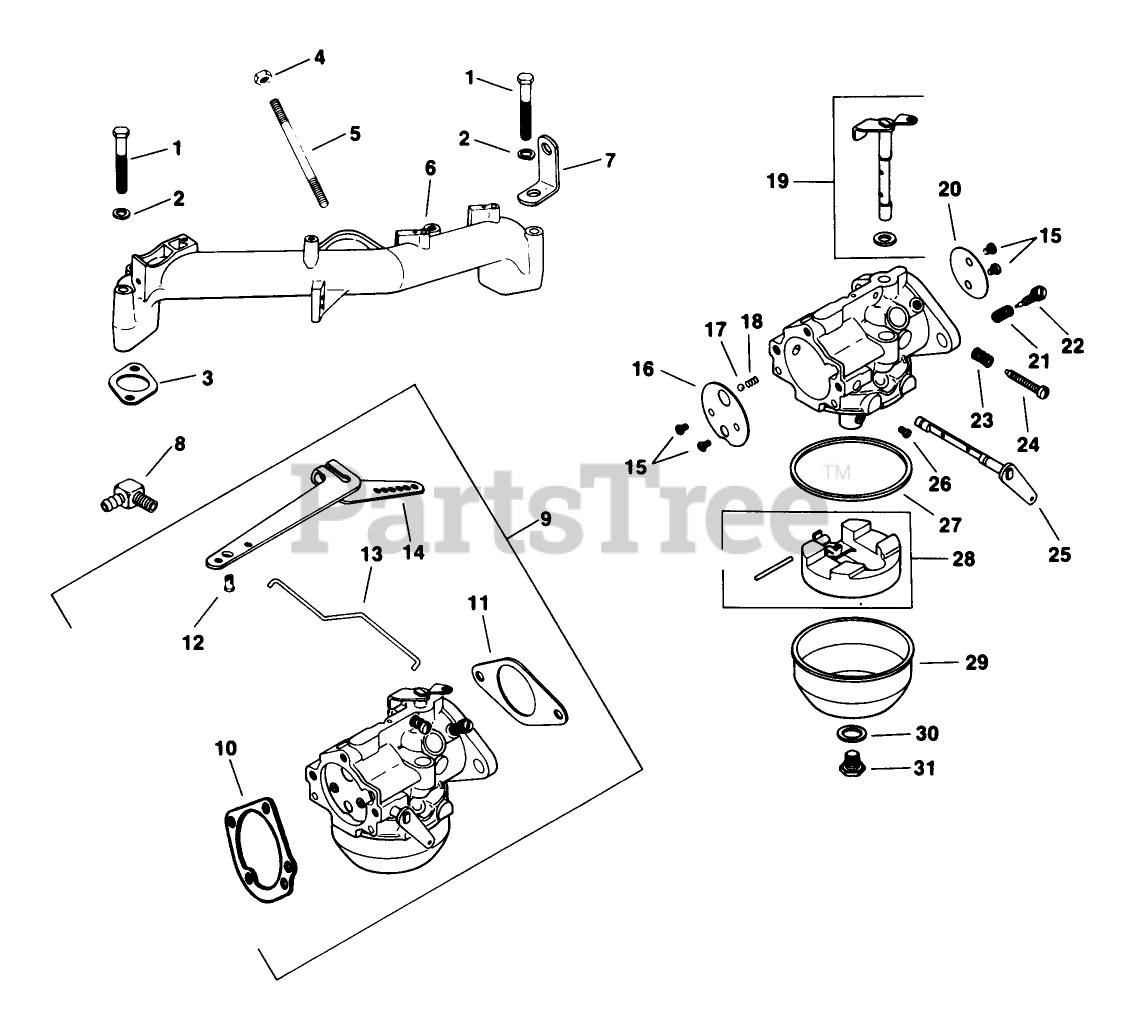

Carburetor Kohler Engine Model No. Kt1 7qs Type No. 24324 Parts Diagram

  • Title
1

Toro X-6-8

Screw-H.C.

$

$

Currently unavailable

2

Toro X-21-1

Washer

$

$

Currently unavailable

3

Toro 52_041_09

Gasket-Intake

$

$

Currently unavailable

4

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Toro 52_164_10

Manifold-Intake

$

$

Currently unavailable

7

Toro 52_445_02

Strap-Lifting

$

$

Currently unavailable

8

Toro 25_155_02

Connector-90?

$

$

Currently unavailable

9

Toro 52_853_03

Kit-Carburetor w/Linkage (Incl. Ref. #10-31)

$

$

Currently unavailable

10

Toro 277069

Gasket

$

$

Currently unavailable

11

Toro 271030

Gasket

$

$

Currently unavailable

12

Toro 25_158_07

Bushing-Linkage (Yellow)

$

$

Currently unavailable

13

Toro 52_079_08

Linkage-Governor

$

$

Currently unavailable

14

Toro 52_186_06

Arm-Governor

$

$

Currently unavailable

15

Toro 25_086_27

Screw-Throttle Plate

$

$

Currently unavailable

16

Toro 25_146_03

Plate-Choke

$

$

Currently unavailable

17

Toro 25_194_01

Ball-Choke

$

$

Currently unavailable

18

Toro 25_089_03

Spring-Choke

$

$

Currently unavailable

19

Toro 52_144_16

Shaft Assembly

$

$

Currently unavailable

20

Toro 25_146_02

Plate-Throttle

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Toro 25_368_01

Valve-Needle

$

$

Currently unavailable

23

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Toro 52_090_12

Lever-Choke

$

$

Currently unavailable

26

Toro 52_337_03

Jet-Main

$

$

Currently unavailable

27

Toro 25_041_04

Bowl-Gasket

$

$

Currently unavailable

28

Toro 25_750_9

Kit-Float

$

$

Currently unavailable

29

$

$

Currently unavailable

30

Toro 25_041_03

Gasket-Bowl

$

$

Currently unavailable

31

Toro 25_100_05

Screw-Bowl

$

$

Currently unavailable

Toro 25_757_08

Kit-Carburetor Repair

$

$

Currently unavailable

Toro 52_755_74

Kit-High Altitude

$

$

Currently unavailable
