30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 006000001 - 006999999) (1986) Piston Rod-Engine Kohler Model No. Kt17qs Type No. 24324 Parts Diagram

44" Mower Deck for Groundsmaster 120

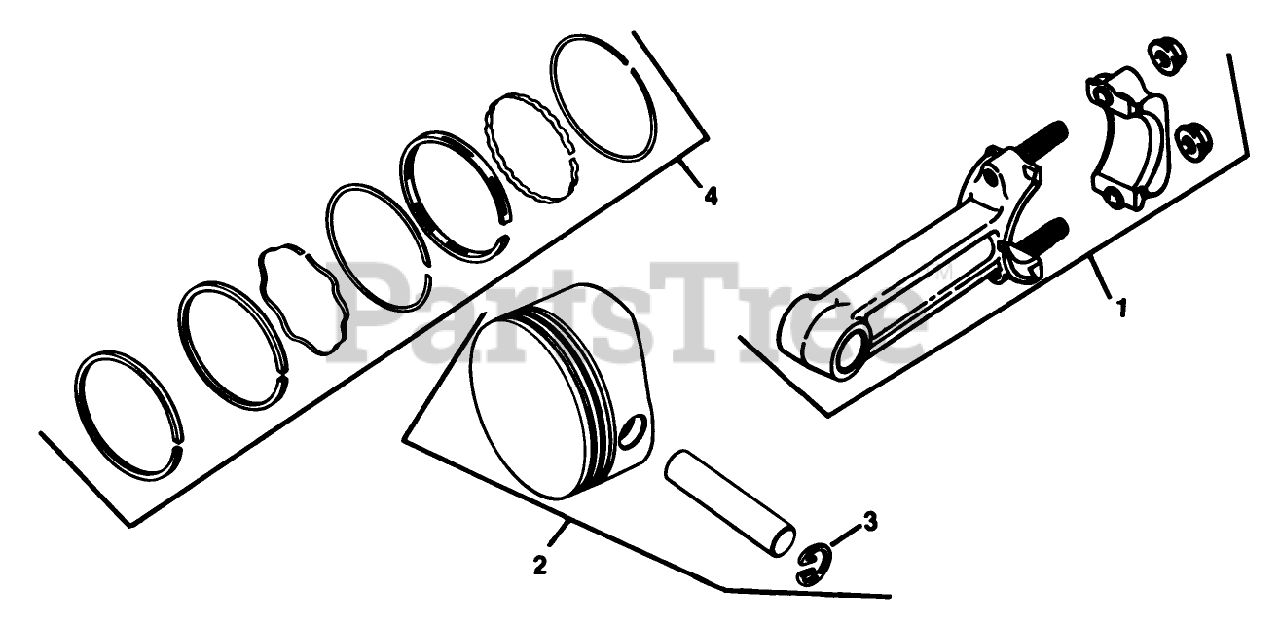

Piston Rod-Engine Kohler Model No. Kt17qs Type No. 24324 Parts Diagram

  • Title

1

Connecting Rod (Std.) Before S/N 15089863 Use 52_067_61 After S/N 15089862 Use 52_067_67

$

$

Not available

1

Connecting Rod (.010) Before S/N 15089863 Use 52_067_62 After S/N 15089862 Use 52 067 68

$

$

Not available

2

Piston w/Ring Set (Std.) Before S/N 15089863 Use 52_874_01 After S/N 15089862 Use 52_874_11

$

$

Not available

2

Piston w/Ring Set (.003) Before S/N 15089863 Use 52_874_02 After S/N 15089862 Use 52_874_12

$

$

Not available

2

Piston w/Ring Set (.010) Before S/N 15089863 Use 52_874_03 After S/N 15089862 Use 52_874_13

$

$

Not available

2

Piston w/Ring Set (.020) Before S/N 15089863 Use 52_874_04 After S/N 15089862 Use 52_874_14

$

$

Not available

2

Piston w/Ring Set (.030) Before S/N 15089863 Use 52_874_05 After S/N 15089862 Use 52_874_15

$

$

Not available

3

Toro 23004

Retainer-Piston Pin

$

$

Currently unavailable

4

Ring Set (Std. .330) Before S/N 15089863 Use 52_108_01 After S/N 15089862 Use 52_108_09

$

$

Not available

4

Ring Set (.010) Before S/N 15089863 Use 52_108_02 After S/N 15089862 Use 52_108_10

$

$

Not available

4

Ring Set (.020) Before S/N 15089863 Use 52_108_03 After S/N 15089862 Use 52_108_11

$

$

Not available

4

Ring Set (.030) Before S/N 15089863 Use 52_108_04 After S/N 15089862 Use 52_108_12

$

$

Not available
