30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 006000001 - 006999999) (1986) Cutting Unit Model No. 30544 Parts Diagram

44" Mower Deck for Groundsmaster 120

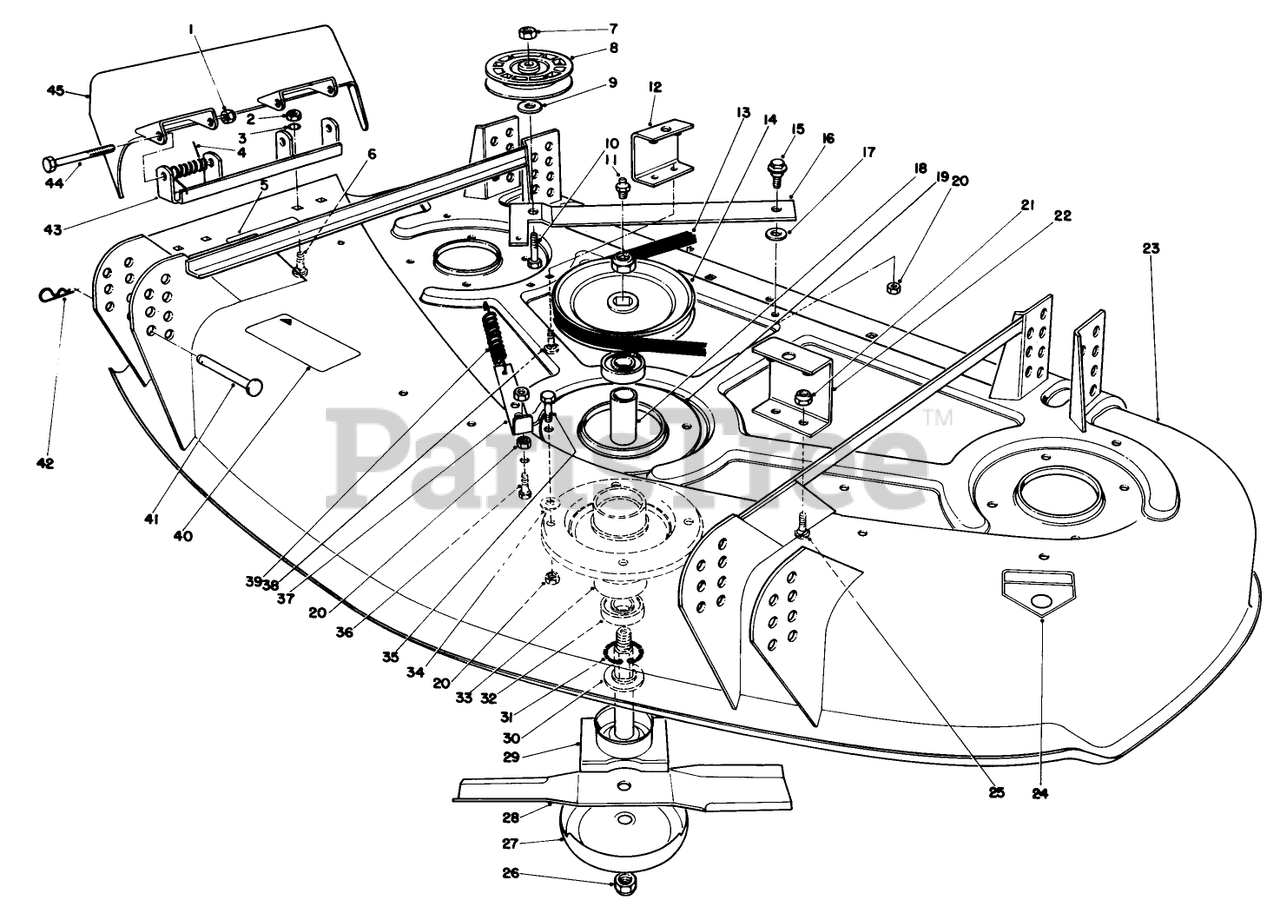

Cutting Unit Model No. 30544 Parts Diagram

  • Title

1

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

2

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

5

Toro 26-7980

DISCONTINUED

$

$

Not available

6

Toro 3230-20

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

7

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

8

Toro 52-4580

See Supercession: 99-5678
(Superseded to 99-5678)

$65.99

$

Usually ships in 3-6 days

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

12

Toro 55-7050

See Supercession: 55-7050-03
(Superseded to 55-7050-03)

$

$

Not available

13

Toro 54-1370

V-BELT-DECK

$134.99

$

Usually ships in 3-6 days

0

14

Toro 55-7690

DISCONTINUED

$

$

Not available

15

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

16

Toro 55-7430

See Supercession: 55-7430-01
(Superseded to 55-7430-01)

$95.99

$

Usually ships in 3-6 days

0

17

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

18

Toro 55-7680

DISCONTINUED

$

$

Not available

19

Toro 55-8280

See Supercession: 55-8280-01
(Superseded to 55-8280-01)

$

$

Not available

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

21

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

22

Toro 55-7060

See Supercession: 55-7060-03
(Superseded to 55-7060-03)

$

$

Not available

23

Toro 54-0700

DISCONTINUED
(Superseded to 94-6024)

$

$

Not available

24

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

25

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

26

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

27

Toro 7-3522

See Supercession: 92-6313
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

28

Toro 54-0010

See Supercession: 54-0010-03
(Superseded to 54-0010-03)

$33.99

$

In Stock, only 3 left!

0

29

Toro 47-0094

DISCONTINUED

$

$

Not available

30

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

31

Toro 32120-11

See Supercession: 32151-75
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0

32

Toro 251-318

BEARING-BALL

$17.99

$

In Stock, only 3 left!

0

33

Toro 54-0160

DISCONTINUE

$

$

Not available

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

35

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 54-1180

See Supercession: 54-1180-01
(Superseded to 54-1180-01)

$20.99

$

Usually ships in 3-6 days

0

38

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

40

Toro 42-6430

DISCONTINUED

$

$

Not available

41

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

42

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

43

Toro 55-8320

PIVOT BRKT WA

$

$

Not available

44

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

45

Toro 54-2660

DISCONTINUED

$

$

Not available
