30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 006000001 - 006999999) (1986) Air Intake-Engine Kohler Model No. Kt17qs Type No. 24324 Parts Diagram

44" Mower Deck for Groundsmaster 120

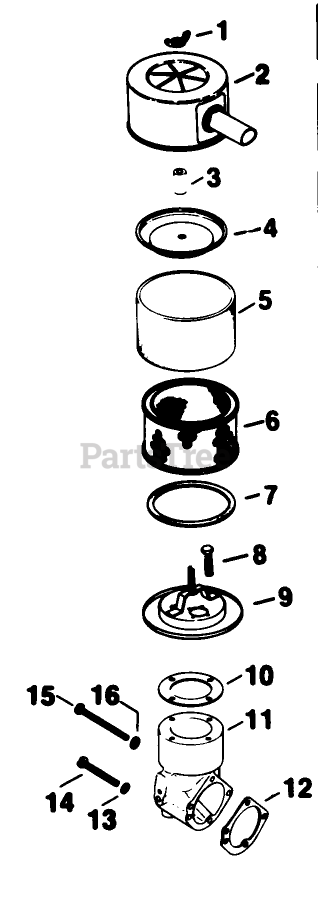

Air Intake-Engine Kohler Model No. Kt17qs Type No. 24324 Parts Diagram

  • Title
1

Toro X-276-7

Nut-Wing

$

$

Currently unavailable

2

Toro 52_096_26

Cover-Air Cleaner

$

$

Currently unavailable

3

$

$

Not available

4

Toro 52_082_04

Cover-Inner

$

$

Currently unavailable

5

Toro 45_083_01

Element

$

$

Currently unavailable

6

Toro 45_083_02

Element

$

$

Currently unavailable

7

Toro 237423

Seal
(Superseded to 701999)

$

$

Not available

8

Toro X-67-98

Screw-H.C.

$

$

Currently unavailable

9

Toro 5220106

Base-Air Cleaner

$

$

Currently unavailable

10

Toro 277093

Gasket-Air Cleaner

$

$

Currently unavailable

11

Toro 52_054_15

Elbow-Air Intake

$

$

Currently unavailable

12

Toro 277069

Gasket

$

$

Currently unavailable

13

Toro X-22-9

Washer

$

$

Currently unavailable

14

Toro X-50-57

Screw-R.H.M.

$

$

Currently unavailable

15

Toro X-50-37

Screw-R.H.M.

$

$

Currently unavailable

16

Toro X-25-79

Washer

$

$

Currently unavailable

Toro 25_113_01

Decal-Air Cleaner

$

$

Currently unavailable
