30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 005000001 - 005999999) (1985) Frame Jackshaft Assembly Parts Diagram

44" Mower Deck for Groundsmaster 120

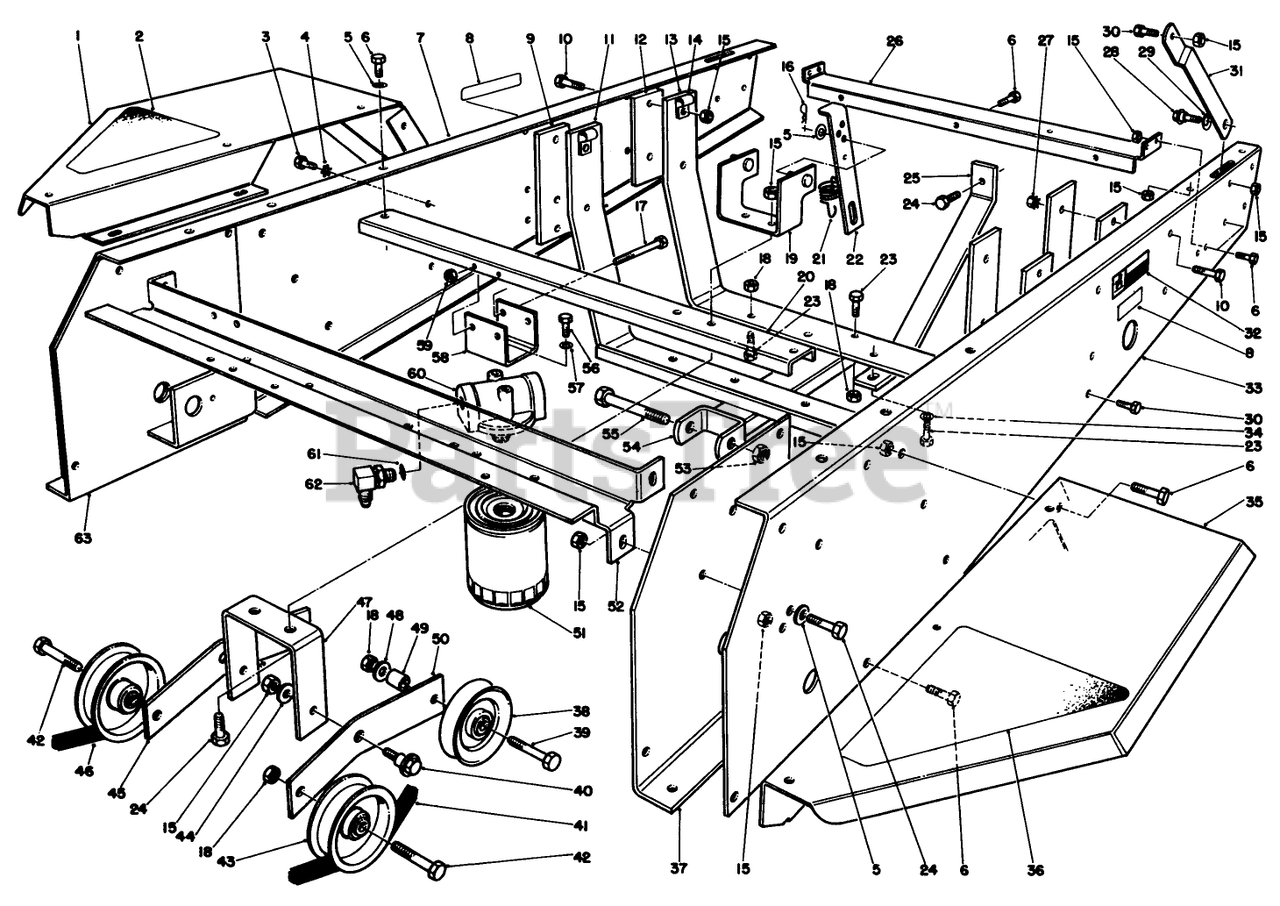

Frame Jackshaft Assembly Parts Diagram

  • Title
1

Toro 54-1930

See Supercession: 54-1930-01
(Superseded to 54-1930-01)

$

$

Not available

2

Toro 54-8990

DISCONTINUED

$

$

Not available

3

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

4

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 54-1910

See Supercession: 54-1910-01
(Superseded to 54-1910-01)

$

$

Not available

8

Toro 54-0890

DECAL-ROTATING

$

$

Not available

9

Toro 54-1800

FRONT ENG PLATE

$

$

Not available

10

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

11

Toro 54-2420

ENGINE MT WA *B

$386.99

$

Usually ships in 3-6 days

0

12

Toro 54-1810

REAR ENG PLATE

$

$

Not available

13

Toro 54-1210

DISCONTINUED

$

$

Not available

14

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

18

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

19

Toro 54-2070

See Supercession: 54-2070-03
(Superseded to 54-2070-03)

$

$

Not available

20

Toro 54-2500

MIDDLE CHANNEL WA *B

$

$

Not available

21

Toro 54-1410

IDLER SPRING

$67.99

$

Usually ships in 3-6 days

0

22

Toro 54-1130

DISCONTINUED

$

$

Not available

23

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 54-1820

DISCONTINUED

$

$

Not available

26

Toro 54-1830

See Supercession: 54-1830-03
(Superseded to 54-1830-03)

$

$

Not available

27

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

28

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

29

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

31

Toro 54-1870

See Supercession: 54-1870-03
(Superseded to 54-1870-03)

$

$

Not available

32

Toro 54-0910

DECAL-HOT

$

$

Not available

33

Toro 54-1920

See Supercession: 54-1920-01
(Superseded to 54-1920-01)

$

$

Not available

34

Toro 325-35

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

35

Toro 54-1940

See Supercession: 54-1940-01
(Superseded to 54-1940-01)

$

$

Not available

36

Toro 54-8980

DISCONTINUED

$

$

Not available

37

Toro 54-0460

See Supercession: 54-0460-01
(Superseded to 54-0460-01)

$

$

Not available

38

Toro 7-0823

See Supercession: 62-4530
(Superseded to 62-4530)

$39.99

$

In Stock, only 2 left!

0

39

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

40

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

41

Toro 54-1380

V-BELT, JACKSHAFT

$42.99

$

In Stock, only 1 left!

0

42

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Toro 7-4660

Flat Idler
(Superseded to 62-4540)

$92.99

$

In Stock, only 1 left!

0

44

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

45

Toro 54-9200

DISCONTINUED

$

$

Not available

46

Toro 54-1390

V-BELT, TRACTION

$37.99

$

In Stock, only 2 left!

0

47

Toro 54-1060

DISCONTINUED

$

$

Not available

48

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Toro 37-7250

SPACER-WEIGHT

$11.99

$

Usually ships in 3-6 days

0

50

Toro 54-1070

DISCONTINUED

$

$

Not available

51

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 2 left!

0

52

Toro 54-1010

See Supercession: 54-1010-01
(Superseded to 54-1010-01)

$

$

Not available

53

Toro 3296-24

NUT-HEX

$4.99

$

In Stock, Qty 20+

0

54

Toro 54-1730

DISCONTINUED

$

$

Not available

55

Toro 327-10

DISCONTINUED

$

$

Not available

56

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Toro 325-33

SCREW-HH

$13.99

$

In Stock, only 4 left!

0

58

Toro 54-1120

BRACKET - FILTER HEAD

$

$

Not available

59

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

60

Toro 54-0100

FILTER HD ASM

$311.99

$

Usually ships in 3-6 days

0

61

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

62

Toro 353-371

See Supercession: AU218-5106
(Superseded to AU218-5106)

$13.99

$

Usually ships in 3-6 days

0

63

Toro 54-0450

See Supercession: 54-0450-01
(Superseded to 54-0450-01)

$

$

Not available
