30544 - Toro 44" Mower Deck for Groundsmaster 120 (SN: 005000001 - 005999999) (1985) Camshaft Valves-Engine Kohler Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

44" Mower Deck for Groundsmaster 120

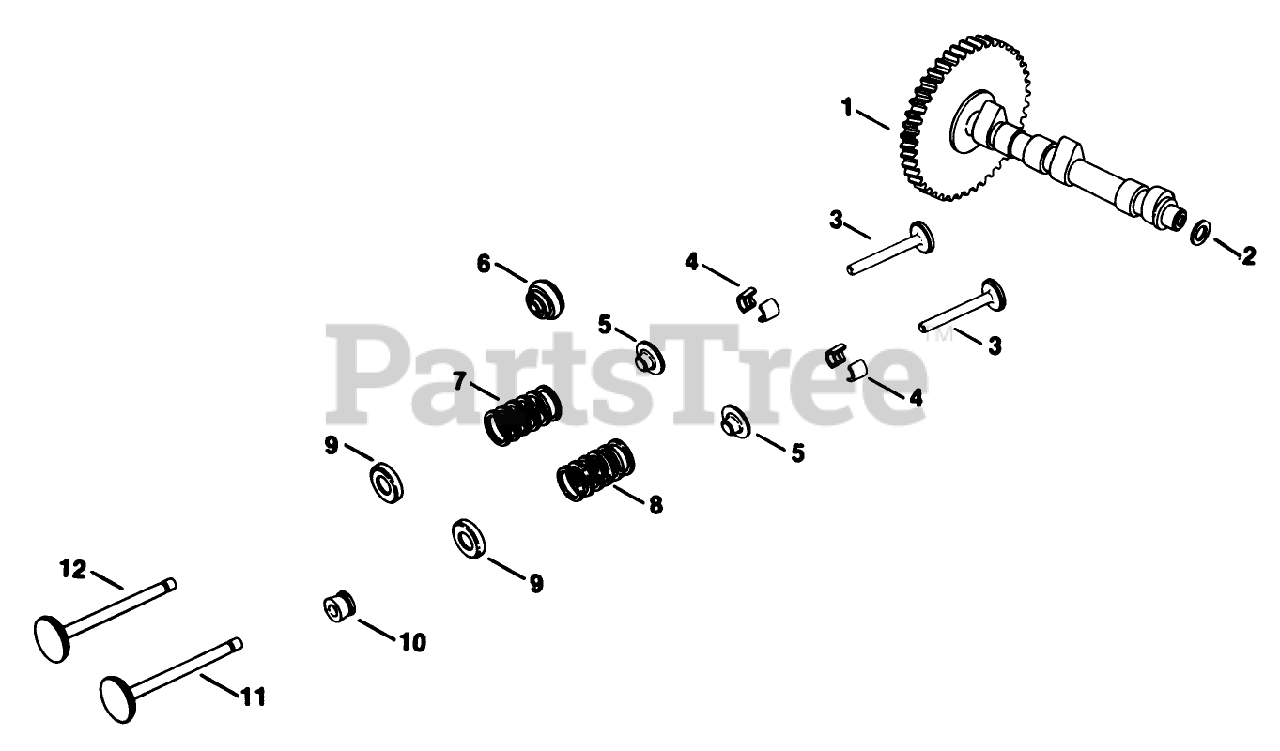

Camshaft Valves-Engine Kohler Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

  • Title
1

Toro 52_012_06

Camshaft

$

$

Currently unavailable

2

Toro 52_422_03

Spacer-Camshaft

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Toro 41_755_10

Kit-Retainer

$

$

Currently unavailable

5

Toro 230011

Retainer-Spring

$

$

Currently unavailable

6

Toro 230020

Rotator
(Superseded to 146224)

$

$

Not available

7

Toro 230168

Spring Exhaust Valve

$

$

Not available

8

Toro 230010

Spring, Valve

$

$

Currently unavailable

9

Toro 52_018_01

Retainer-Spring

$

$

Currently unavailable

10

Toro 52_032_05

Seal-Valve Stem

$

$

Currently unavailable

11

Toro 52_017_01

Valve-Intake

$

$

Currently unavailable

12

Toro 52_016_02

Valve-Exhaust

$

$

Currently unavailable
