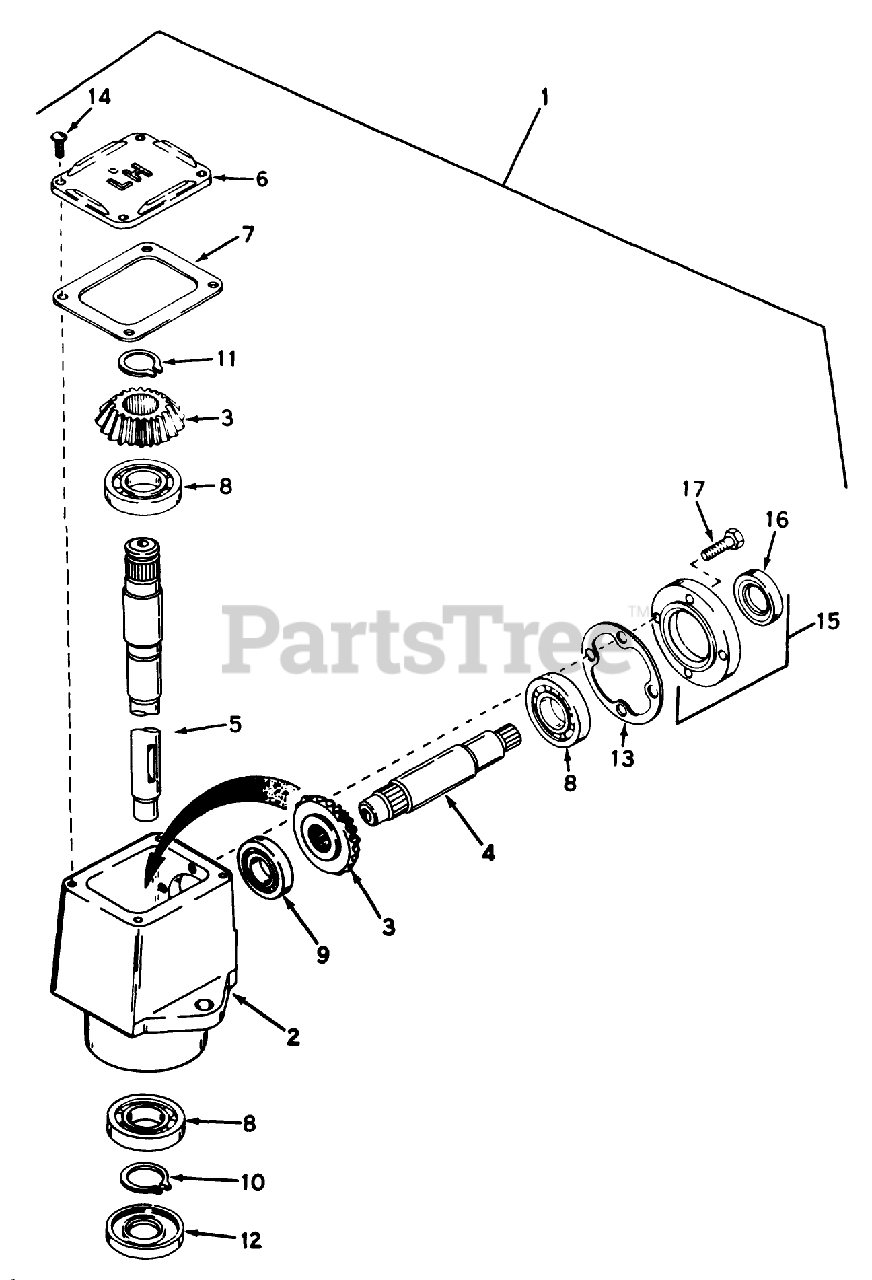

30544 - Toro 44" Mower Deck for Groundsmaster 117/120 (SN: 009000001 - 009999999) (1989) Grass Collection System Model No. 30751 30576 (optional) (continued) Gear Box Assembly Model No. 4398-P91 Parts Diagram

44" Mower Deck for Groundsmaster 117/120

Grass Collection System Model No. 30751 30576 (optional) (continued) Gear Box Assembly Model No. 4398-P91 Parts Diagram

  • Title
1

Toro 794402

Head Assembly-Left Hand (Incl. Ref. #2-15)

$

$

Currently unavailable

2

Toro 770026A

Housing

$

$

Currently unavailable

3

Toro 778046

Bevel Gear

$

$

Currently unavailable

4

Toro 776250

Shaft-Input

$

$

Currently unavailable

5

Toro 776249

Shaft-Output

$

$

Currently unavailable

6

Toro 772035

Cover

$

$

Currently unavailable

7

Toro 788028

Gasket

$

$

Currently unavailable

8

Toro 780034

Bearing

$

$

Currently unavailable

9

Toro 780024

Bearing

$

$

Currently unavailable

10

Toro 788019

Ring-Snap

$

$

Currently unavailable

11

Toro 788018

Ring-Snap

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Toro 788030

Gasket

$

$

Currently unavailable

14

Toro 792025

Screw

$

$

Currently unavailable

15

Toro 786029

Cap Seal Assembly (Incl. Ref. #13 16)

$

$

Currently unavailable

16

Toro 788031

Oil Seal

$

$

Currently unavailable

17

Toro 792026

Ring Set (STD)

$

$

Currently unavailable
